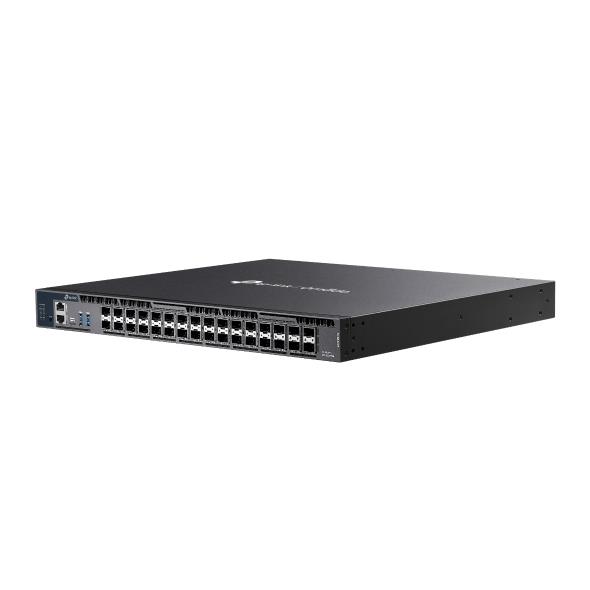

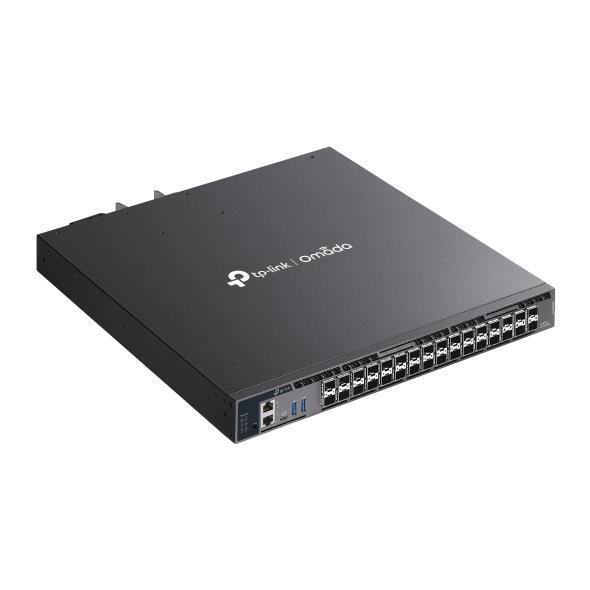

Switch TP-LINK Omada SX6632YF Type L3 26xSFP+ 6xSFP28 1xConsole 2xUSB 3.0 SX6632YF

What This Product Does
The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

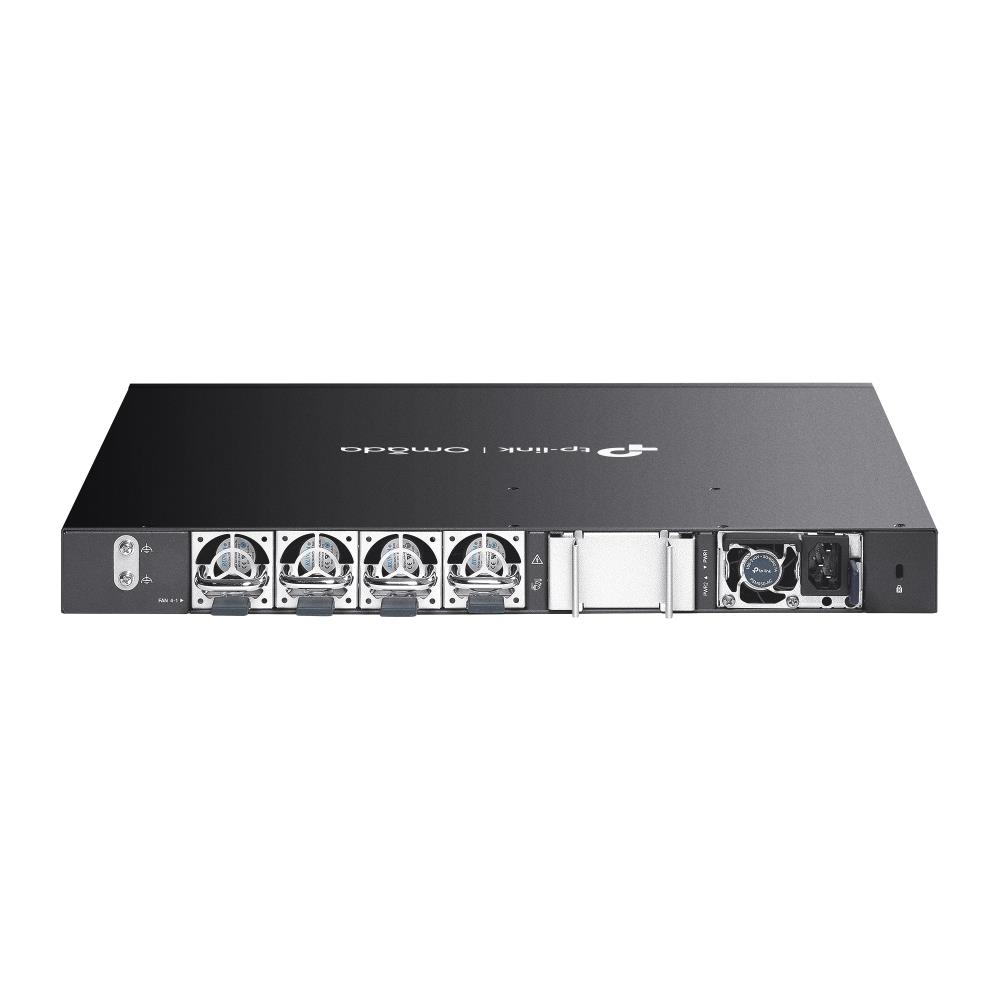

Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

• 26× 10G SFP+ slots and 6× 25G SFP28 slots
• 820 Gbps switching capacity
• Physical Stacking for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Summary: TP-Link SX6632YF. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 820 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah. Rack mounting | Vendor Homepage: https://www.tp-link.com/eg/business-networking/managed-switch/sx6632yf/ | ARP inspection: Yes | Cloud-managed: Yes | Quality of Service (QoS) support: Yes | Switch layer: L2+/L3 | Switch type: Managed | Web-based management: Yes | Basic switching RJ-45 Ethernet ports type: No | Console port: RJ-45 | Number of management ports: 1 | SFP module slots quantity: 6 | SFP+ module slots quantity: 26 | USB Type-A ports quantity: 2 | USB Type-C ports quantity: 1 | 10G support: Yes | IP routing: Yes | Networking standards: IEEE 802.1ad/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3ah | Port mirroring: Yes | Virtual LAN features: MAC address-based VLAN/Multicast VLAN/Private VLAN/Protocol-based VLAN/Voice VLAN | VLAN support: Yes | Forwarding rate: 610.1 | Jumbo frames: 9000 | Jumbo frames support: Yes | MAC address table: 128000 | Packet buffer memory: 8 | Switching capacity: 820 | Access Control List (ACL): Yes | DHCP features: DHCP Option 82 | IGMP snooping: Yes | MAC address filtering: Yes | SSH/SSL support: Yes | Static port security: Yes | Multicast support: Yes | Management protocols: SNMPv1/v2c/v3 | Number of fans: 4 | Product colour: Black | Rack mounting: Yes | Stackable: Yes | Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, VistaT / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. | AC input frequency: 50/60 | AC input voltage: 100 - 240 | Number of power supply units: 2 | Power source: AC | Redundant power supply (RPS) support: Yes | Power over Ethernet (PoE): No | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): -5 - 40 | Storage relative humidity (H-H): 5 - 90 | Storage temperature (T-T): -40 - 70 | Depth: 380 | Height: 44 | Width: 440 | Cables included: Power | Quick start guide: Yes | Rack mount kit: Yes | Series: Omada | Model name: SX6632YF | Units per Shipping Box: 1 | Unit Calculated Volume: 0.03058 | Unit Calculated Weight: 10.11
