NAS STORAGE RACKST 4BAY 1U RP/NO HDD TS-432PXU-RP-2G QNAP

TS-432PXU-RP
Quad-core 1.7GHz rackmount NAS with 10GbE SFP+ and 2.5GbE ports and redundant power supply for SMB IT environments

With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.

Higher performance x faster throughput
The TS-432PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 2GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Balance performance and capacity
Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.

Extend SSD lifespan
SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.

Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-432PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-432PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

Easily find and automatically organize files and photos
The TS-432PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.

File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.

Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.

Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

Secure Google™ Workspace and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-432PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.

Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-432PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.

Flexibly expand storage capacity whenever needed
The storage capacity of the TS-432PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-432PXU-RP can also be used to expand the storage space of other QNAP NAS.

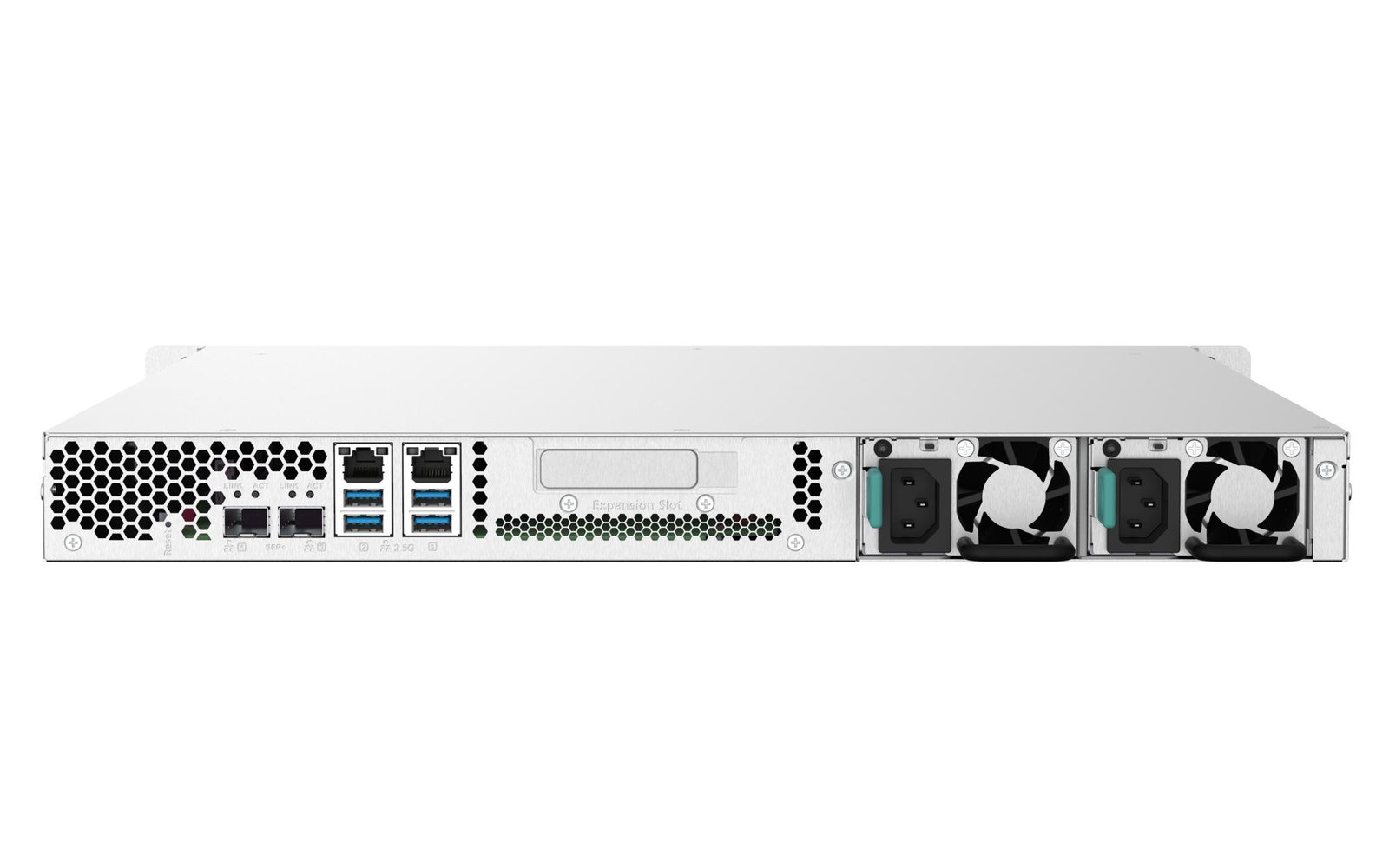

• Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
• HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
• Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®
• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
• Expand the application potential of the TS-432PXU-RP by installing a compatible PCIe card
• Increase the storage capacity of the TS-432PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD

Summary: QNAP TS-432PXU-RP. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Annapurna Labs, Processor model: Alpine AL-324, Processor frequency: 1.7 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB | Vendor Homepage: https://www.qnap.com/en/product/ts-432pxu-rp | Bad block scan: Yes | Hot-swap drive bays: Yes | Installed storage drive type: No | Number of storage drives supported: 4 | Online RAID expansion: Yes | Online RAID migration: Yes | RAID levels: 0/1/10/5/6/JBOD | RAID rebuild: Yes | RAID support: Yes | Storage drive capacity: 0 | Storage drive sizes supported: 2.5/3.5 | Storage drives installed: No | Supported file systems: ext3/ext4/FAT32/HFS+/NTFS | Supported storage drive interfaces: Serial ATA II,Serial ATA III | Supported storage drive types: HDD & SSD | Total installed storage capacity: 0 | Processor cores: 4 | Processor family: Annapurna Labs | Processor frequency: 1.7 | Processor manufacturer: Annapurna Labs | Processor model: Alpine AL-324 | Flash memory: 512 | Internal memory: 2 | Internal memory type: DDR4 | Maximum RAM supported: 16 | Memory form factor: UDIMM | Memory slots: 1 | DHCP client: Yes | DHCP server: Yes | Ethernet LAN: Yes | Ethernet LAN data rate supported (max): 10000 | Ethernet LAN data rates: 100/1000/10000/2500 | iSCSI support: Yes | Jumbo frames support: Yes | Link aggregation: Yes | Load balancing system: Yes | Supported network protocols: PPTP, L2TP/IPSec, OpenVPN, QBelt | Wake-on-LAN ready: Yes | WLAN adapter supported: Yes | Ethernet LAN (RJ-45) ports: 2 | Fiber optic connector: SFP+ | Fiber ports quantity: 2 | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 | USB port: Yes | Chassis type: Rack (1U) | Cooling type: Active | Fan diameter: 40 | LED indicators: HDD/LAN/Status | Number of fans: 2 | Product colour: Black | Access Control List (ACL): Yes | Backup features: Cloud/iSCSI LUN | Backup function: Yes | Browser supported: Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome | Built-in FTP server: Yes | Buzzer: Yes | Device class: Small & Medium Business | Hot spare: Yes | Multilingual support: Yes | On/off switch: Yes | Reset button: Yes | S.M.A.R.T. support: Yes | Security algorithms: 256-bit AES/FIPS 140-2/HTTPS/SSH/SSL/TLS | Share folder: CIFS/SMB | Snapshot: Yes | System log: Yes | Type: NAS | Universal Plug and Play (UPnP): Yes | USB copy function: Yes | Web-based management: Yes | Linux operating systems supported: Yes | Mac operating systems supported: Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina | Operating system version: 5.0.0 | Server operating systems supported: Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019 | Windows operating systems supported: Windows 10/Windows 7/Windows 8 | AC input voltage: 100 - 240 | Fan voltage: 12 | Number of power supply units: 2 | Power consumption (typical): 53.343 | Power supply location: Built-in | Power supply unit (PSU) capacity: 250 | Depth: 499 | Height: 44 | Package depth: 665 | Package height: 175 | Package weight: 11000 | Package width: 625 | Weight: 8120 | Width: 439 | Cables included: AC/LAN (RJ-45) | Number of screws: 28 | Package type: Box | Operating relative humidity (H-H): 5 - 95 | Operating temperature (T-T): 0 - 40 | Storage temperature (T-T): -20 - 70 | Harmonized System (HS) code: 84714100 | Warranty period: 3 | Model: QNAP TS-432PXU-RP-2G | Model name: TS-432PXU-RP | Units per Shipping Box: 1 | Unit Calculated Volume: 0.07062 | Unit Calculated Weight: 11.1
