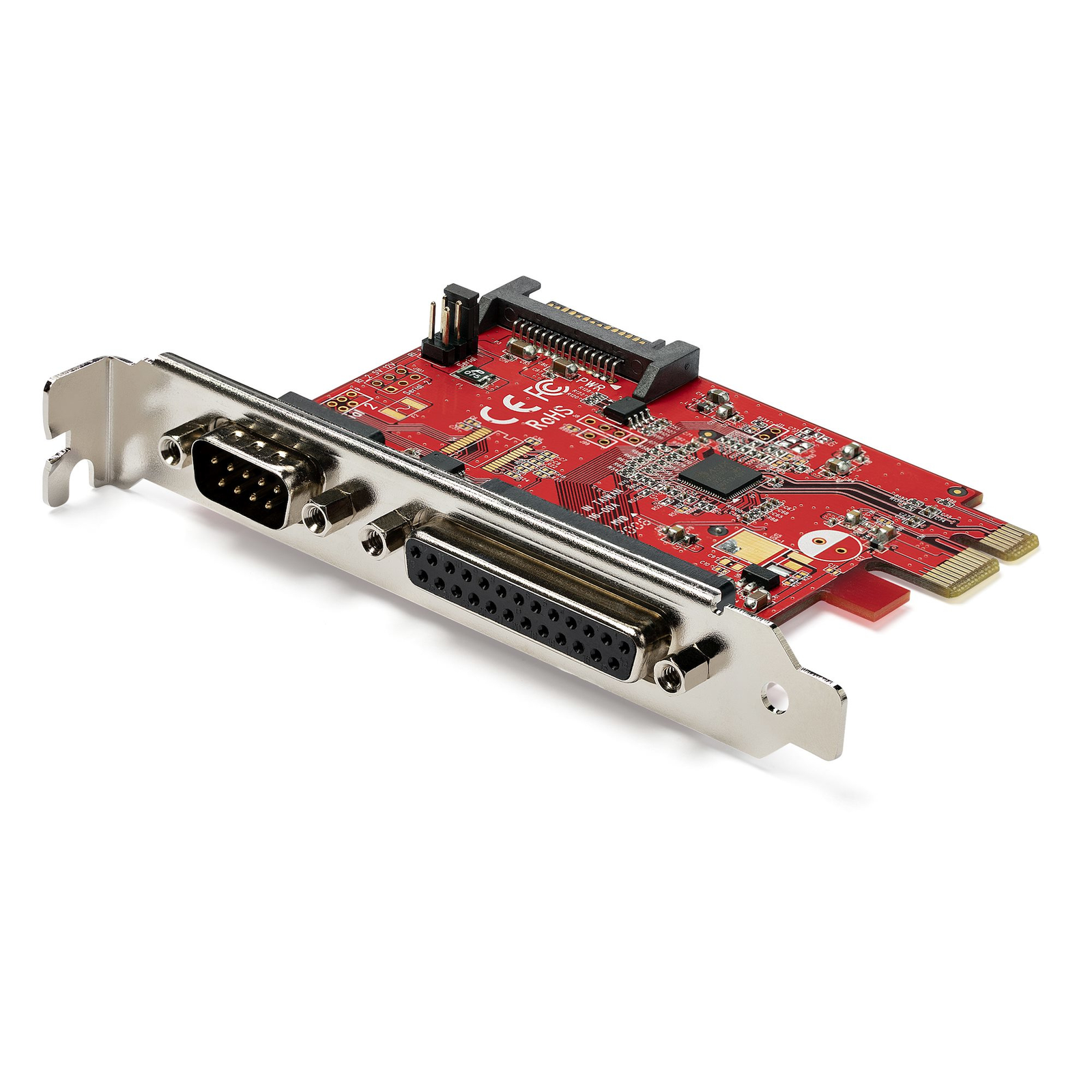

StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller Card - PCIe Printer Card – photo 1
STARTECH.COM

StarTech.com PCIe Card with Serial and Parallel Port - PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 Serial Port - Expansion/Controller Card - PCIe Printer Card

R1,975
incl. VAT: R2,271
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PEX1S1P950
  • EAN: 065030891844
  • Product code: 1055312
Backordered goods Delivery in 7–10 working days

Available Options

R1,975 incl. VAT: R2,271

Key features

  • PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
  • TECH SPECS: Parallel Speeds up to 2.5Mbps
  • Supports SPP/Byte/ECP modes
  • Compatible with IEEE 1284
  • Asix AX99100 chip
  • RS232 speeds up to 921.6Kbps

Key features

  • PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
  • TECH SPECS: Parallel Speeds up to 2.5Mbps
  • Supports SPP/Byte/ECP modes
  • Compatible with IEEE 1284
  • Asix AX99100 chip
  • RS232 speeds up to 921.6Kbps
Tags: startech.com networking , startech.com networkin

Description

PCI-Express 2.0 | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty

This PCIe Parallel and Serial Combo Card installs into a single PCI-Express x1 slot in your computer, and adds a DB25 IEEE 1284 parallel port and DB9 RS 232 serial port to your system. The PEX1S1P950 is the latest version of our popular PEX1S1P952 combo card.

Adds an LPT Parallel Port

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.

Adds a COM Serial Port

The Asix AX99100 chip also enables you to connect a DB9 device using the same controller card, compatible with industry standard 16950 UART. The serial port is ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) port supports bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit. The card also features an optional SATA power input that enables you to add power to pin 9 on the serial port, and adjusted the power output between 5V and 12V using a jumper on the PCB.

Wide Installation Compatibility

This add-on card installs in a full/standard-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (7 or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).

PEX1S1P950 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

- PCIe CARD WITH SERIAL & PARALLEL PORT: Using a x1 PCIe 2.0 slot, add a DB25 parallel & a DB9 RS232 port to your computer; Card installs in full/standard profile PCIe slot; Latest version of our popular PEX1S1P952
- TECH SPECS: Parallel Speeds up to 2.5Mbps
- Supports SPP/Byte/ECP modes

Price History

Price History

Current price1,975 ZAR
2,0741,9751,87609-2309-3010-0710-1310-2010-27
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface Parallel, Serial
Expansion card standard PCIe 2.0
Serial ports quantity 1
Serial interface type RS-232
Parallel ports quantity 1
Design
Internal Yes
Product colour Red
Mean time between failures (MTBF) 3188058 h
Features
Chipset Asix - AX99100
Baud rate 921.6 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 5, 6, 7, 8, 9
Stop bits 1, 1.5, 2
Parity bit Even, Mark, No, Odd, Space
Flow Control type No, RTS/CTS, XON/XOFF
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 15 - 90%
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Technical details
Compliance certificates CE, RoHS
Weight & dimensions
Width 95 mm
Depth 80 mm
Height 22 mm
Weight 63 g
Packaging data
Package width 170 mm
Package depth 142 mm
Package height 30 mm
Package weight 127 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 60 pc(s)
Master (outer) case width 380 mm
Master (outer) case length 500 mm
Master (outer) case height 310 mm
Other features
Data transfer rate 2.5 Mbit/s
