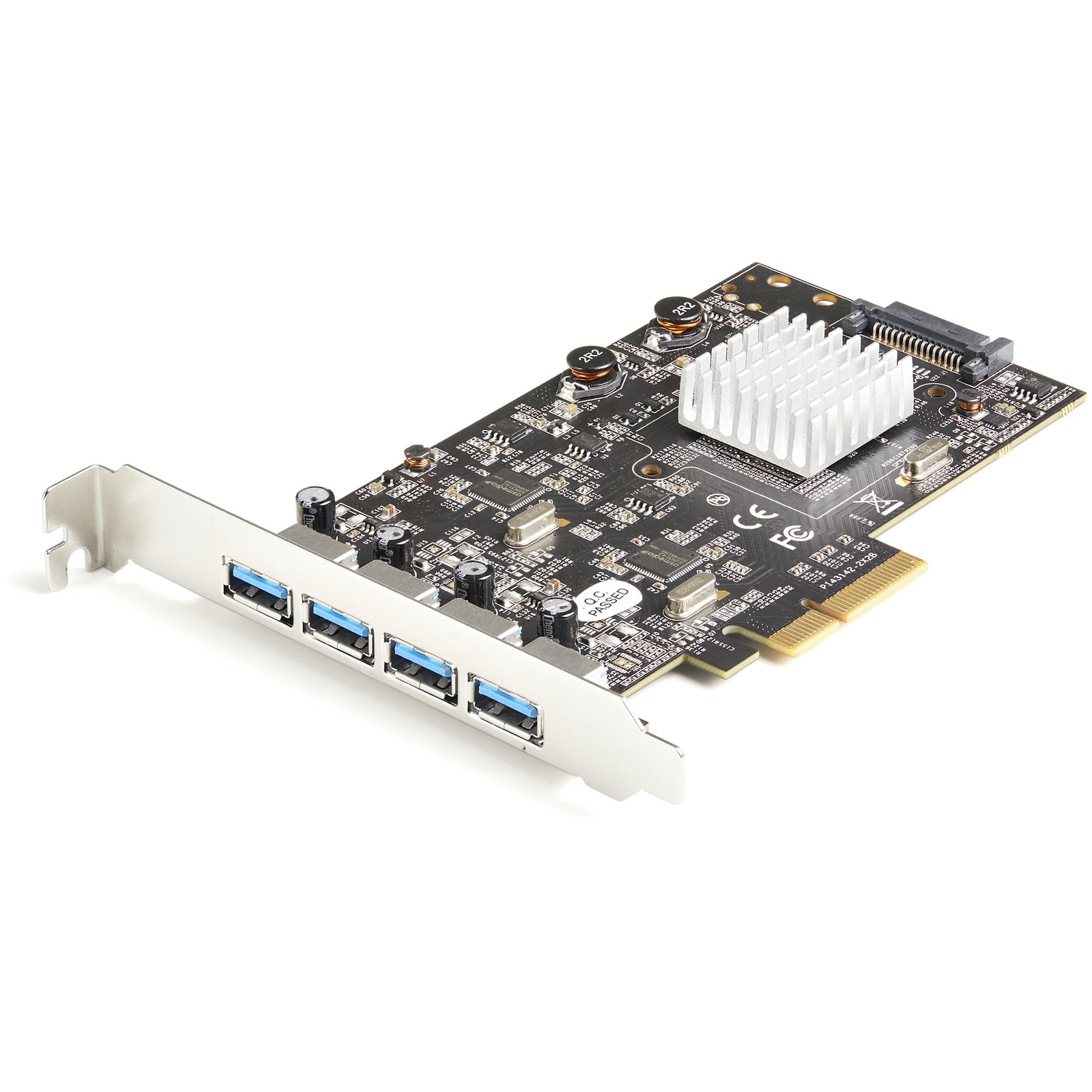

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux – photo 1
STARTECH.COM

StarTech.com 4-Port USB PCIe Card - 10Gbps USB 3.2 Gen 2 Type-A PCI Express Expansion Card with 2 Controllers - 4x USB-A - USB PCIe Add-On Adapter Card - Windows/Mac/Linux

R3,513
incl. VAT: R4,040
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PEXUSB314A2V2
  • Weight: 0.16 kg
  • Dimensions: 22 × 16 × 4 cm
  • EAN: 065030887410
  • Product code: 1055340
Backordered goods Delivery in 7–10 working days

Available Options

R3,513 incl. VAT: R4,040

Key features

  • HIGH PERFORMANCE: USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port; Dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; USB 3.2 Gen 2; Upgraded version of our popular USB card PEXUSB314A2V
  • MAXIMIZED USB PERFORMANCE: Multiple INs support for max bandwidth when using mixed-speed devices; USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives
  • POWER: USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports (if motherboard power is insufficient) providing up to 4.5W (5V@0.9A) per USB-A port
  • COMPATIBILITY: USB PCIe adapter card for desktop PC installs in standard profile PCI-e 2.0 x4 slot; Supports Windows/Linux/macOS with auto driver install on Windows 8 & up; Works w/USB 3.2 Gen 1/2.0 devices
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCIe add-on card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support

Key features

  • HIGH PERFORMANCE: USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port; Dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; USB 3.2 Gen 2; Upgraded version of our popular USB card PEXUSB314A2V
  • MAXIMIZED USB PERFORMANCE: Multiple INs support for max bandwidth when using mixed-speed devices; USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives
  • POWER: USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports (if motherboard power is insufficient) providing up to 4.5W (5V@0.9A) per USB-A port
  • COMPATIBILITY: USB PCIe adapter card for desktop PC installs in standard profile PCI-e 2.0 x4 slot; Supports Windows/Linux/macOS with auto driver install on Windows 8 & up; Works w/USB 3.2 Gen 1/2.0 devices
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCIe add-on card is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Tags: startech.com networking , startech.com networkin

Description

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.

Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Price History

Price History

Current price3,513 ZAR
3,5403,5253,51009-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Internal SATA ports quantity 1
SATA power connector type SATA 15-pin
Design
Internal Yes
Product colour Black, Metallic
Mean time between failures (MTBF) 40000 h
Features
Chipset ASMedia - ASM3142, ASMedia - ASM1812
Data transfer rate (max) 10 Gbit/s
UASP support Yes
Power
Output voltage 5 V
Operational conditions
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported Yes
Server operating systems supported Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates CE, RoHS
Sustainability compliance Yes
Weight & dimensions
Width 150 mm
Depth 120 mm
Height 19 mm
Weight 125 g
Packaging data
Mounting brackets included Yes
Quick installation guide Yes
Package width 217 mm
Package depth 151 mm
Package height 36 mm
Package weight 180 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 40 pc(s)
Master (outer) case width 454 mm
Master (outer) case length 379 mm
Master (outer) case height 325 mm
