StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux - TAA – photo 1
STARTECH.COM

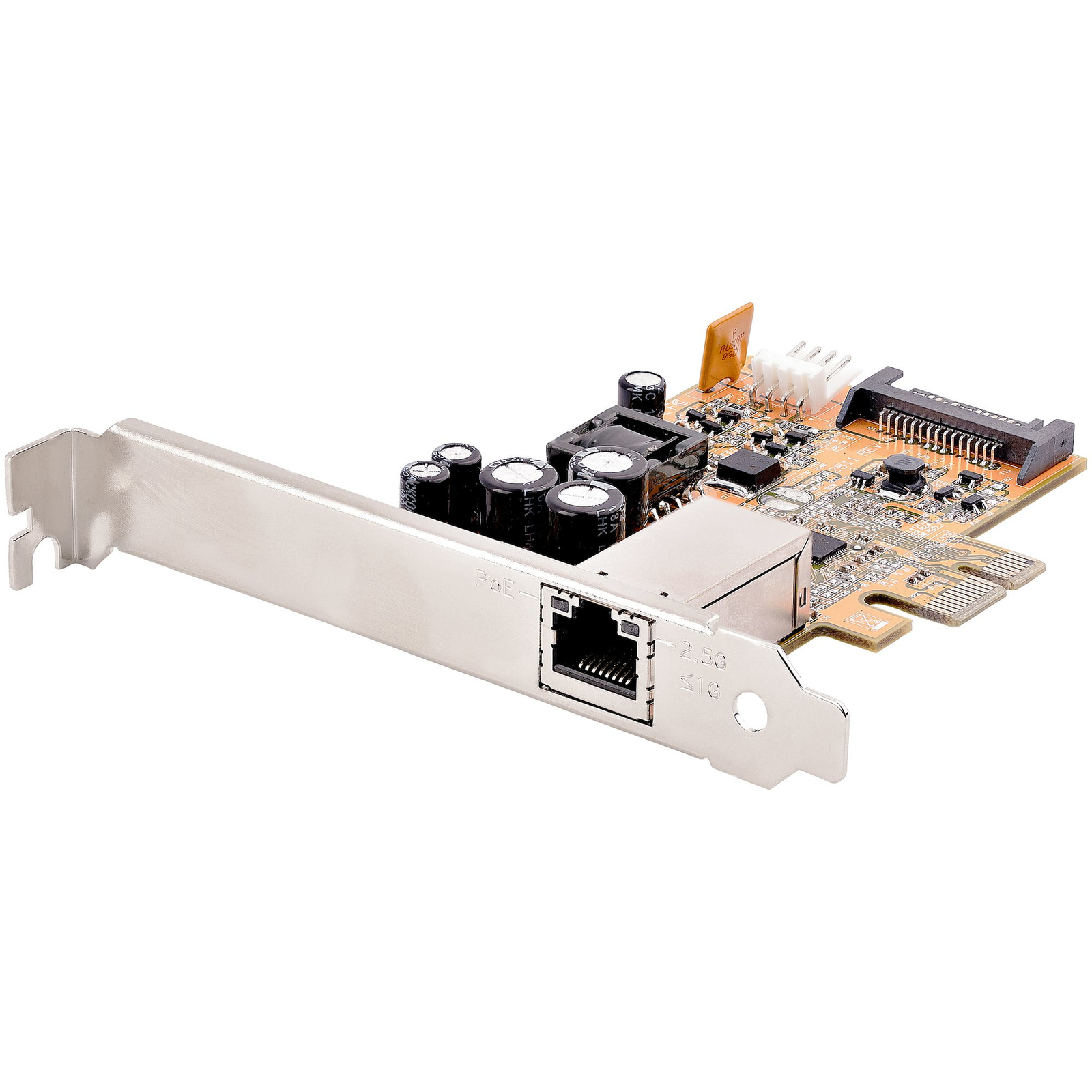

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux - TAA

R3,141
incl. VAT: R3,612
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: ST1000PEXPSE
  • Weight: 0.17 kg
  • Dimensions: 21 × 14 × 4 cm
  • EAN: 065030893107
  • Product code: 1068314
Backordered goods Delivery in 7–10 working days

Available Options

R3,141 incl. VAT: R3,612

Key features

  • 2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector
  • POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
  • MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer
  • TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets
  • VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices

Key features

  • 2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector
  • POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
  • MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer
  • TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets
  • VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices
Tags: startech.com networking , startech.com networkin

Description

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.

Versatile Network PoE Card

The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.

Enhance Existing Hardware

The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.

Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.

This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.

Price History

Price History

Current price3,141 ZAR
3,2983,1412,98409-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 1
Power over Ethernet (PoE) ports quantity 1
PCI version 2.1
PCI Card form factor Full-height (low-profile)
Network
Maximum data transfer rate 2500 Mbit/s
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Wake-on-LAN ready Yes
Auto MDIX IEEE Yes
Full duplex Yes
Jumbo frames support Yes
Jumbo frames 16000
VLAN tagging Yes
Maximum operating distance 100 m
Design
Internal Yes
Component for PC/Server
Chipset Realtek RTL8125B
LED indicators Yes
Power
Output voltage 48 V
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported Yes
Server operating systems supported Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 63 mm
Depth 95 mm
Height 15 mm
Weight 220 g
Packaging data
Package width 144 mm
Package depth 212 mm
Package height 41 mm
Package weight 220 g
Packaging content
Mounting brackets included Yes
Quick installation guide Yes
Technical details
Compliance certificates CE, RoHS
Logistics data
Master (outer) case width 537 mm
Master (outer) case length 454 mm
Master (outer) case height 345 mm
Products per master (outer) case 50 pc(s)
Sustainability
Sustainability compliance Yes
