StarTech.com 8-PORT 4K 60HZ HDMI SPLITTER HDMI SPLITTER BOX 4K 60HZ – photo 1
STARTECH.COM

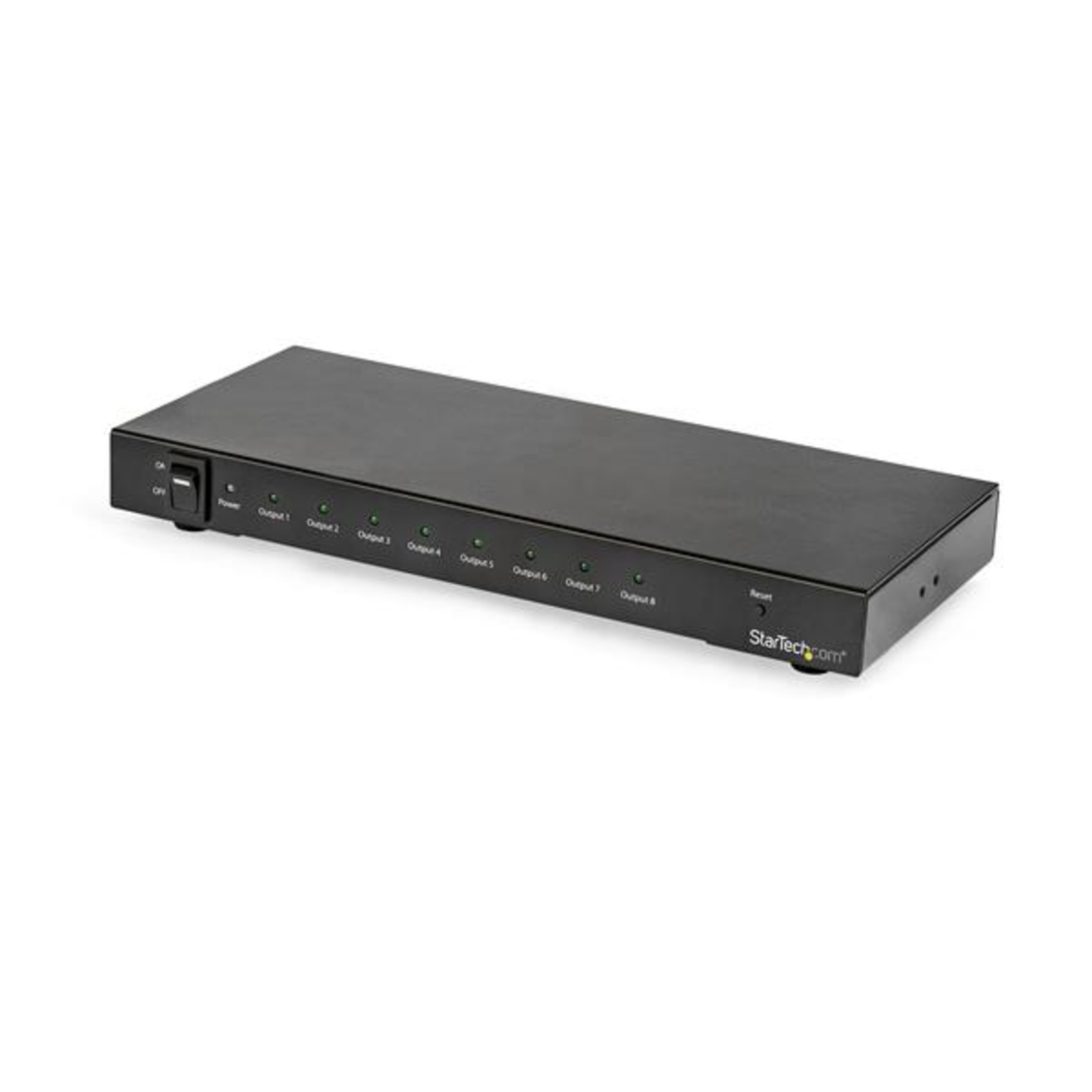

StarTech.com 8-PORT 4K 60HZ HDMI SPLITTER HDMI SPLITTER BOX 4K 60HZ

R4,672
incl. VAT: R5,373
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: ST128HD20
  • Weight: 1.23 kg
  • Dimensions: 34 × 26 × 7 cm
  • EAN: 065030876049
  • Product code: 1068349
Backordered goods Delivery in 7–10 working days

Available Options

R4,672 incl. VAT: R5,373

Key features

  • 8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
  • EDID EMULATION: 1x8 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
  • AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
  • LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for eight TVs/projectors/monitors/displays
  • EASY SETUP: No drivers required for this 1-input 8-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible

Key features

  • 8-PORT HDMI SPLITTER: Displays the same image with sound on 8 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
  • EDID EMULATION: 1x8 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
  • AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
  • LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for eight TVs/projectors/monitors/displays
  • EASY SETUP: No drivers required for this 1-input 8-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
Tags: startech.com audio & video cables , startech.com audio & video cable

Description

Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter

This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports true 4K at 60Hz

This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.

Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.

Widely compatible

The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

Easy installation and setup

The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.

The ST128HD20 is backed by a 2-year StarTech.com warranty.

Price History

Price History

Current price4,672 ZAR
4,7264,6974,66809-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Video ports quantity 8
Video port type HDMI
Video out 8x HDMI
HDMI version 2
Features
Maximum resolution 3840 x 2160 pixels
Product colour Black
HD type 4K Ultra HD
Maximum refresh rate 60 Hz
HDCP Yes
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Power LED Yes
Supported video modes 720p, 1080p
LED indicators Yes
Certification CE, FCC, REACH
Power
AC input voltage 100 - 240 V
Input current 0.6 A
Output voltage 5 V
Output current 3 A
Power consumption (typical) 15 W
Weight & dimensions
Width 110 mm
Depth 258 mm
Height 26 mm
Weight 762 g
Packaging data
Package width 330 mm
Package depth 267 mm
Package height 71 mm
Package weight 1.2 kg
Packaging content
Included power plug types AU, EU, NA, UK
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 85%
Technical details
Supported audio channels 7.1
Compliance certificates RoHS
Audio support Yes
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 445 mm
Master (outer) case length 361 mm
Master (outer) case height 297 mm
Products per master (outer) case 6 pc(s)
