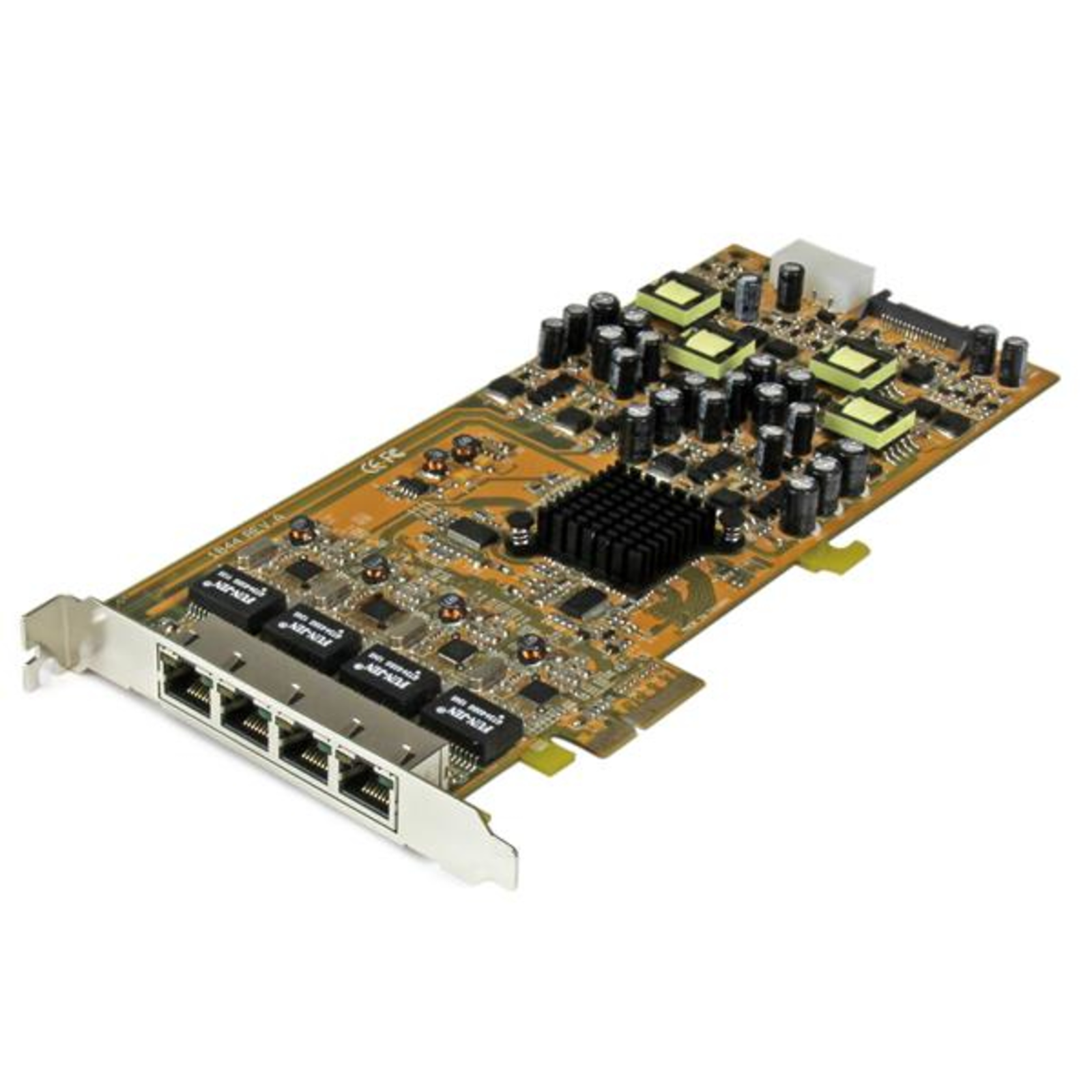

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - TAA – photo 1
STARTECH.COM

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - TAA

R7,942
incl. VAT: R9,133
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: ST4000PEXPSE
  • Weight: 0.45 kg
  • Dimensions: 30 × 20 × 7 cm
  • EAN: 065030855150
  • Product code: 1068400
Backordered goods Delivery in 7–10 working days

Available Options

R7,942 incl. VAT: R9,133

Key features

  • FULLY COMPLIANT: This 4 port Gigabit PoE card is fully compliant with IEEE 802.3at Class 1 & Class 2, Type 1, Power over Ethernet (PoE) standards
  • PSE SUPPORT: This PCIe network card features a Power Sourcing Equipment (PSE) endpoint that supports up to 50V, 25.5 watts max. output per port
  • POWER YOUR PoE DEVICES: Provide connectivity and power to compatible PoE devices, including cameras and wireless access points using this PCIe PoE Ethernet card
  • ULTIMATE SUPPORT: The Gigabit NIC supports IEEE 802.3 AT Class 1 and Class 2 (Type 1), 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
  • THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cards are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance

Key features

  • FULLY COMPLIANT: This 4 port Gigabit PoE card is fully compliant with IEEE 802.3at Class 1 & Class 2, Type 1, Power over Ethernet (PoE) standards
  • PSE SUPPORT: This PCIe network card features a Power Sourcing Equipment (PSE) endpoint that supports up to 50V, 25.5 watts max. output per port
  • POWER YOUR PoE DEVICES: Provide connectivity and power to compatible PoE devices, including cameras and wireless access points using this PCIe PoE Ethernet card
  • ULTIMATE SUPPORT: The Gigabit NIC supports IEEE 802.3 AT Class 1 and Class 2 (Type 1), 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
  • THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cards are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Tags: startech.com networking , startech.com networkin

Description

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3 AT Class 1 and Class 2 (Type 1) standard for Power Sourcing Equipment (PSE), and can deliver up to 50V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Price History

Price History

Current price7,942 ZAR
8,3397,9427,54509-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 4
PCI Card form factor Full-height
Network
Maximum data transfer rate 2000 Mbit/s
Networking standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000BaseT(X)
Wake-on-LAN ready Yes
Auto MDIX IEEE Yes
Full duplex Yes
Jumbo frames support Yes
Jumbo frames 9000
Design
Internal Yes
Chipset RTL8111E
LED indicators Link, PoE
Certification CE, FCC, REACH, TAA
Power
Output voltage 48 V
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 18 mm
Depth 243 mm
Height 120 mm
Weight 102 g
Packaging data
Drivers included Yes
Package width 191 mm
Package depth 296 mm
Package height 71 mm
Package weight 428 g
Packaging content
Manual Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 402 mm
Master (outer) case length 510 mm
Master (outer) case height 324 mm
Products per master (outer) case 14 pc(s)
Other features
Buffer size 48 KB
Peripheral (Molex) power connectors (4-pin) 1
Number of SATA power connectors 1
