StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA – photo 1
STARTECH.COM

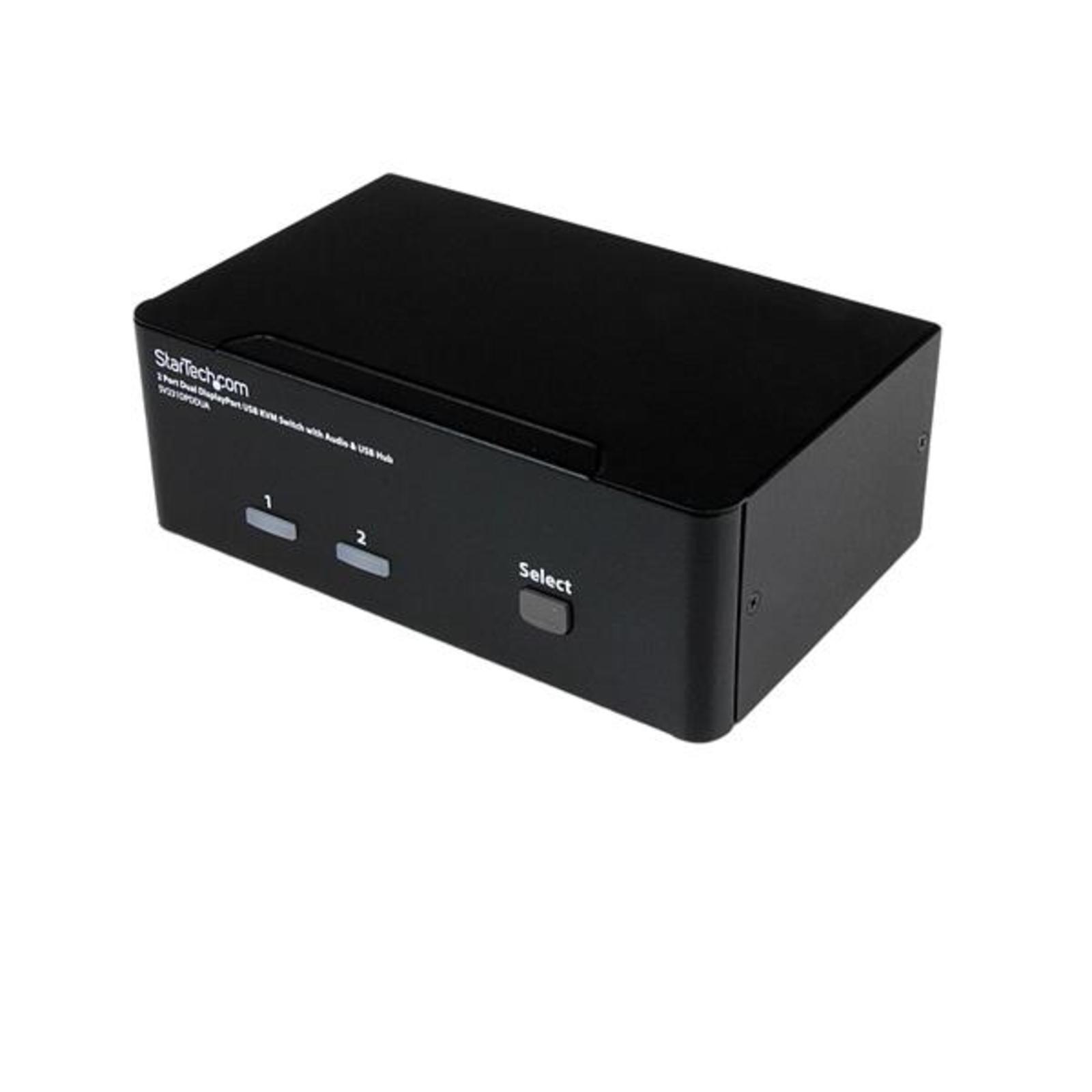

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA

R7,172
incl. VAT: R8,248
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: SV231DPDDUA
  • Weight: 1.19 kg
  • Dimensions: 25 × 19 × 10 cm
  • EAN: 065030839266
  • Product code: 1068750
Backordered goods Delivery in 7–10 working days

Available Options

R7,172 incl. VAT: R8,248

Key features

  • Native dual DisplayPort connections - no adapter required
  • Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
  • Maximum resolutions of 3840x2400 at lower refresh rates
  • 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
  • 3.5mm 2-channel stereo audio and microphone
  • Integrated 2 port hub for USB 2.0 peripheral sharing
  • No driver or software installation required
  • OS Independent
  • Hotkey and push-button switching
  • Full plug-and-play support with USB console interfaces

Key features

  • Native dual DisplayPort connections - no adapter required
  • Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
  • Maximum resolutions of 3840x2400 at lower refresh rates
  • 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
  • 3.5mm 2-channel stereo audio and microphone
  • Integrated 2 port hub for USB 2.0 peripheral sharing
  • No driver or software installation required
  • OS Independent
  • Hotkey and push-button switching
  • Full plug-and-play support with USB console interfaces
Tags: startech.com audio & video cable adapters & couplers , startech.com audio & video cable adapters & coupler

Description

Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Price History

Price History

Current price7,172 ZAR
7,6817,4047,12609-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Number of computers controlled 2
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity 6
Console USB ports quantity 2
USB hub Yes
USB connector type USB Type-A
Audio connections Yes
Headphone outputs 3
Number of microphone inputs 3
DC-in jack Yes
Network
Ethernet LAN No
Performance
HD type 4K Ultra HD
Maximum resolution 3840 x 2400 pixels
DDC2B support Yes
Hot-Plug support Yes
Daisy chain No
Number of users 1 user(s)
Audio channels 7.1
Design
Rack mounting No
Product colour Black
Housing material Steel
LED indicators Yes
Push button Yes
Hot keys Yes
Certification CE, FCC, REACH, TAA
Display
Built-in display No
On Screen Display (OSD) No
Power
Input voltage 110 - 240 V
Input current 0.8 A
Output voltage 12 V
Output current 1.5 A
Power consumption (typical) 18 W
External power adapter Yes
Power plug type Type M
Compatible power plug types AU, EU, UK, US
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) 20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 161 mm
Depth 100 mm
Height 57.5 mm
Weight 734 g
Packaging data
Package width 252 mm
Package depth 188 mm
Package height 100 mm
Package weight 1.19 kg
Packaging content
Manual Yes
Logistics data
Harmonized System (HS) code 85176200
Master (outer) case width 403 mm
Master (outer) case length 322 mm
Master (outer) case height 285 mm
Products per master (outer) case 6 pc(s)
Other features
Audio support Yes
IP control No
