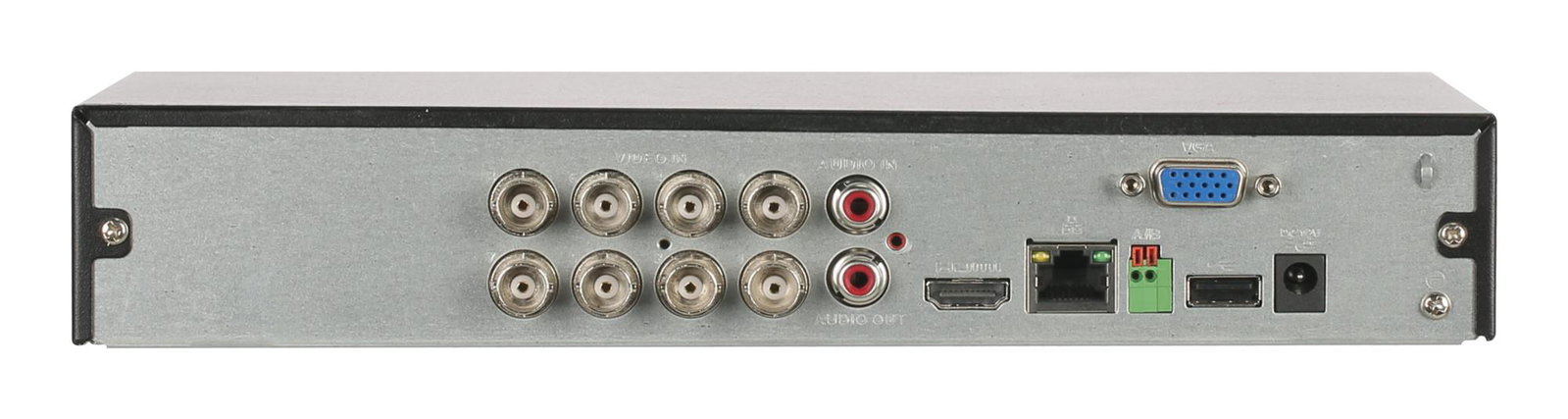

DVR 8CH HDCVI PENTABRID AI/XVR5108HS-I3/T DAHUA

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database to recognize the person identity.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.

Smart Dual Illuminators
With Smart Dual Illuminators technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual illumination technology can meet the requirements of a wide variety of scenes.

One-click Arming/Disarming
With just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.

Customizable Alarm Audio
Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR

AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details

Audio over Coax
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

• H.265+/H.265 dual-stream video compression
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
• Up to 2 channels video stream (analog channel) Perimeter Protection
• Up to 8 channels video stream (analog channel) SMD Plus
• Up to 1 channels video stream (analog channel ) human face recognition
• IoT & POS functionalities

Summary: Dahua Technology XVR5108HS-I3/T. Product colour: Black, Video compression formats: H.264, H.264+, H.265, H.265+, Channels quantity: 8 channels. Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W. Width: 260 mm, Depth: 237.9 mm, Height: 47.6 mm | Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5108HS-I3/T | HDMI ports quantity: 1 | RS-485 ports: 1 | USB 2.0 ports quantity: 2 | VGA (D-Sub) output ports: 1 | Ethernet LAN: Yes | Ethernet LAN (RJ-45) ports: 1 | Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P | HDD interface: SATA | Maximum HDD capacity: 16000 | Number of HDDs supported: 1 | Certification: FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 | Channels quantity: 8 | Dual stream support: Yes | Multi-display supported: Yes | Operating system installed: Linux | Product colour: Black | Video compression formats: H.264/H.264+/H.265/H.265+ | Video motion detection: Yes | Built-in processor: Yes | DC voltage: 12 | Power consumption (typical): 7 | Power supply type: DC | Depth: 237.9 | Height: 47.6 | Weight: 1100 | Width: 260 | Package depth: 315 | Package height: 89 | Package weight: 1500 | Package width: 333 | Operating relative humidity (H-H): 0 - 90 | Operating temperature (T-T): -10 - 55 | Units per Shipping Box: 10 | Unit Calculated Volume: 0.01061 | Unit Calculated Weight: 1.61
