NB ACC DOCKING STATION/USB-C 120W CSV-1585 CLUB3D

The Club 3D CSV-1585 is a MST dual(HDMI™+DP™) display dock with KVM func-
tion. Two USB Type-C input for connecting two different hosts to improve the
productivity between the two hosts quickly, just one click on the top button or
by clicking the connected cable remote button. 3xUSB Type-A+3xUSB Type-C
provide enough connection for external devices with up to 5Gbps data trans-

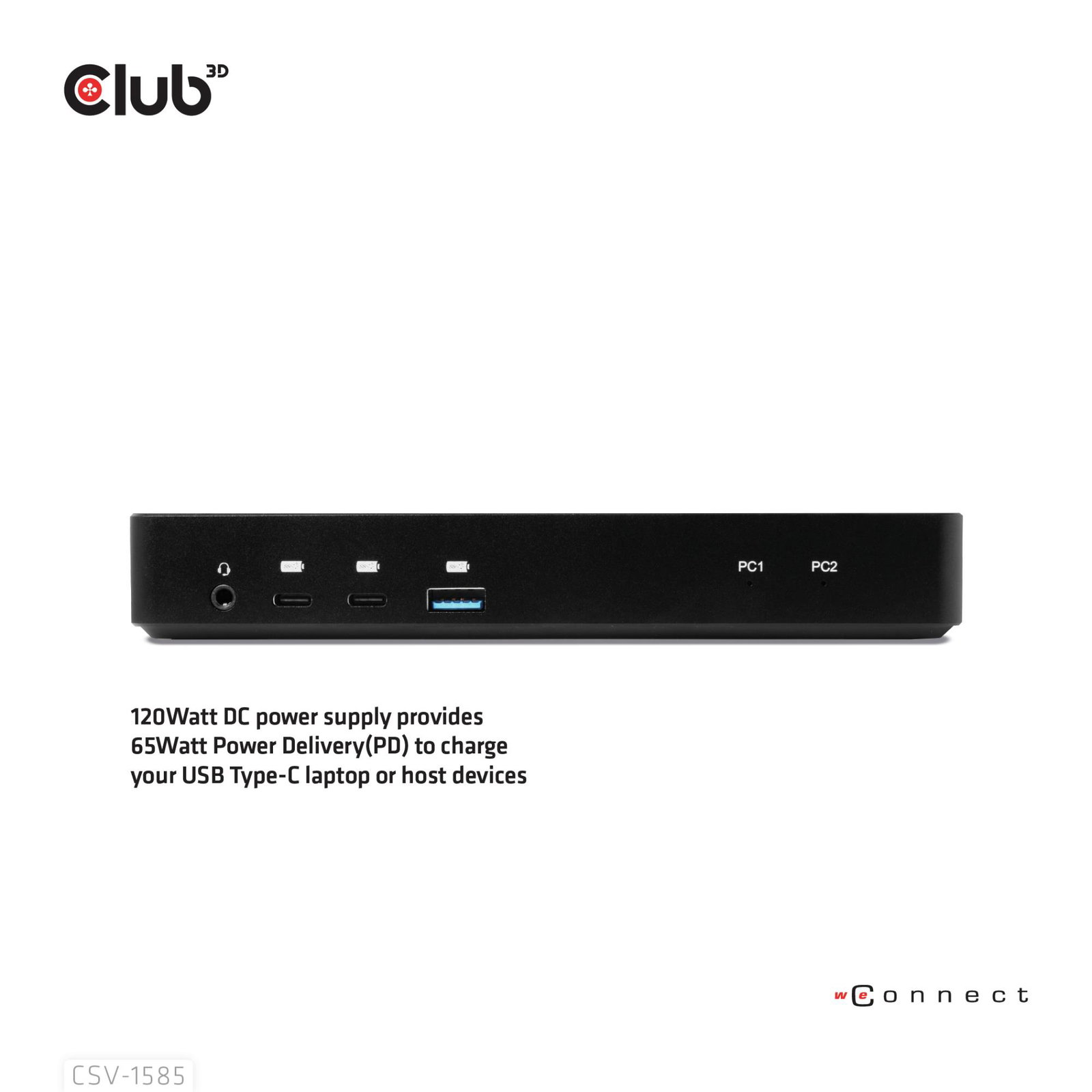

fer. 120Watt DC power supply provides 65Watt Power Delivery(PD) to charge

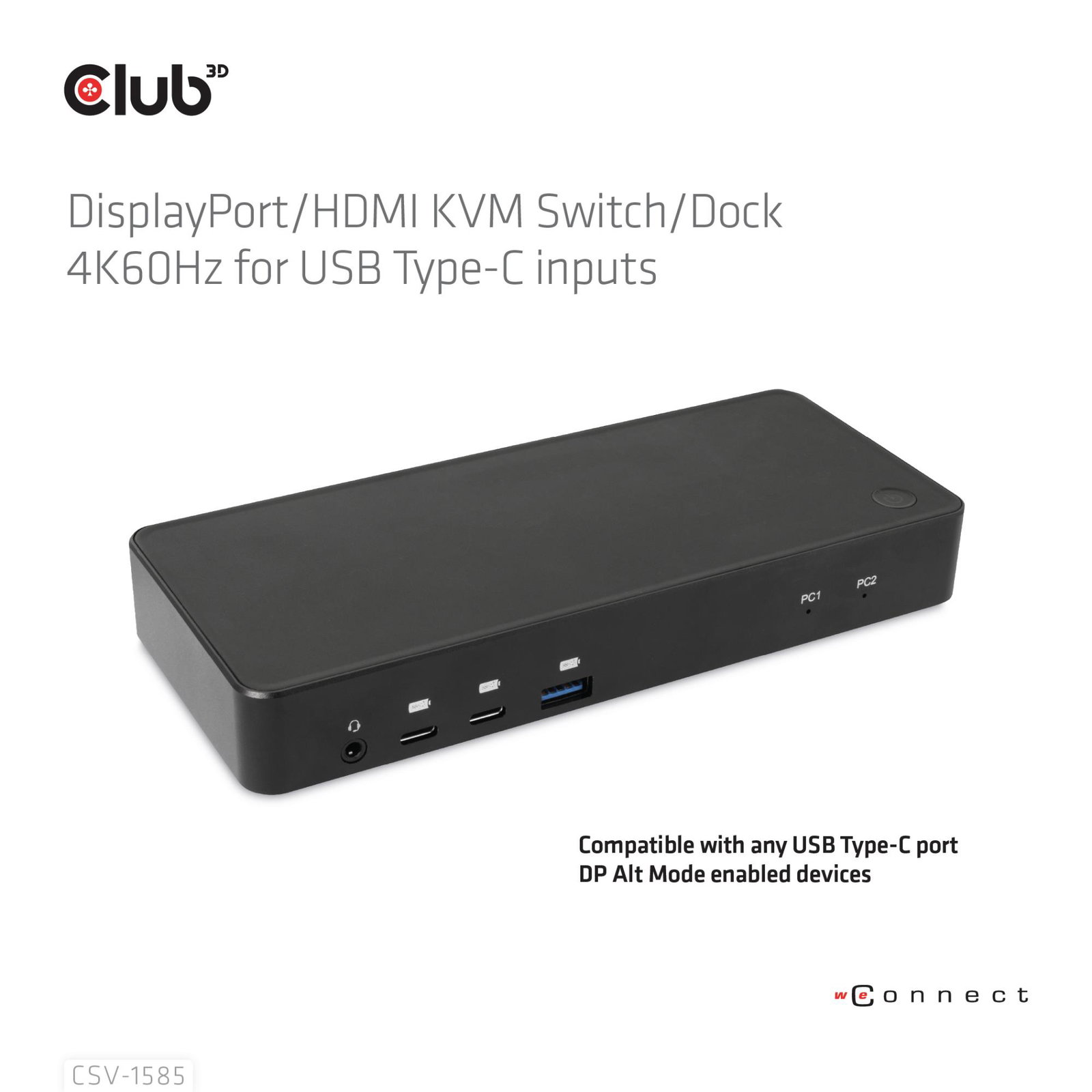

your USB Type-C laptop or host devices. Compatible with any USB Type-C port
DP™ Alt Mode enabled devices, like Laptop, desktop PC, tablet, Phone, etc.
Support charging with PC1 and PC2 port, press the POWER SWITCH key to
switch input power. Using 20V/6A 120W DC power adapter to supply power
for docking station, among 65W power charging for PC2 host at the same
time. Supply External power for PC1 through USB Type-C1 port, the charging
power depends on the PD adapter. With Kensington lock. Plug and play.

• Features:
• Dual USB Type-C Inputs
• Dual DisplayPort™™ / HDMI™™ Output up to 4K60Hz
• Compatible with DP™ Alt Mode
• Support KVM function
• Dual PD connections Thru PS and USB Type-C connector
• Support for switching LED indications
• Applications:
• Docking station with MST functionality
• KVM for USB Type-C inputs
• Supported resolutions:
• See QIG
• DisplayPort™/HDMI™ KVM Switch/Dock 4K60Hz
• for USB Type-C inputs
• OS Support:
• Windows 10 or upwards, Mac 13.5.2

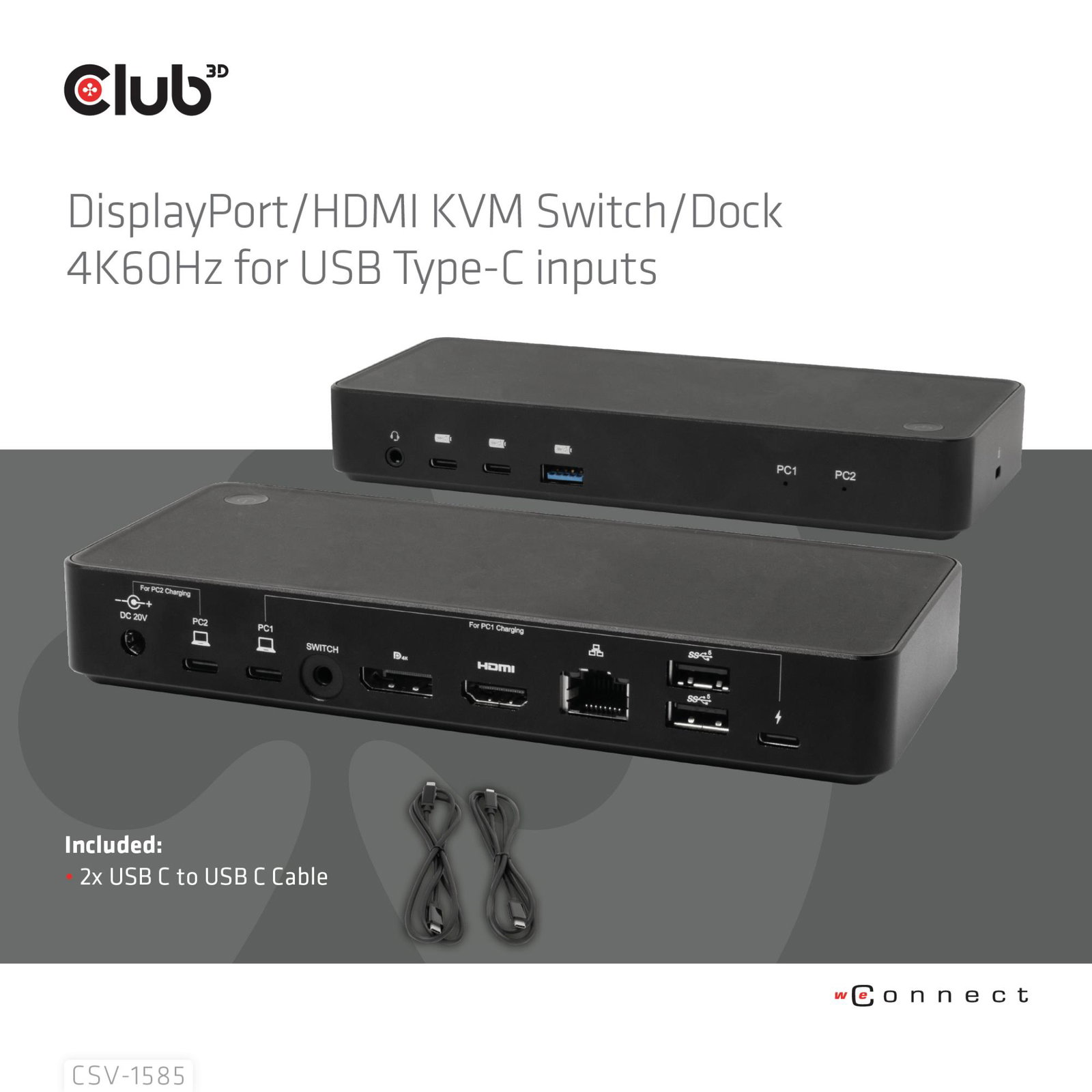

• In the box:
• 1X CSV-1585 DisplayPort™/HDMI™ KVM Switch/Dock 4K60Hz
• For USB Type-C inputs
• 2x USB Type-C Cable length approx.: 1m / 3.28 ft
• 1x Remote Cable length approx.: 1m / 3.28 ft
• Power Supply 100-240VAC/ 20V/6A DC 120Watt(Specify Power Plug)

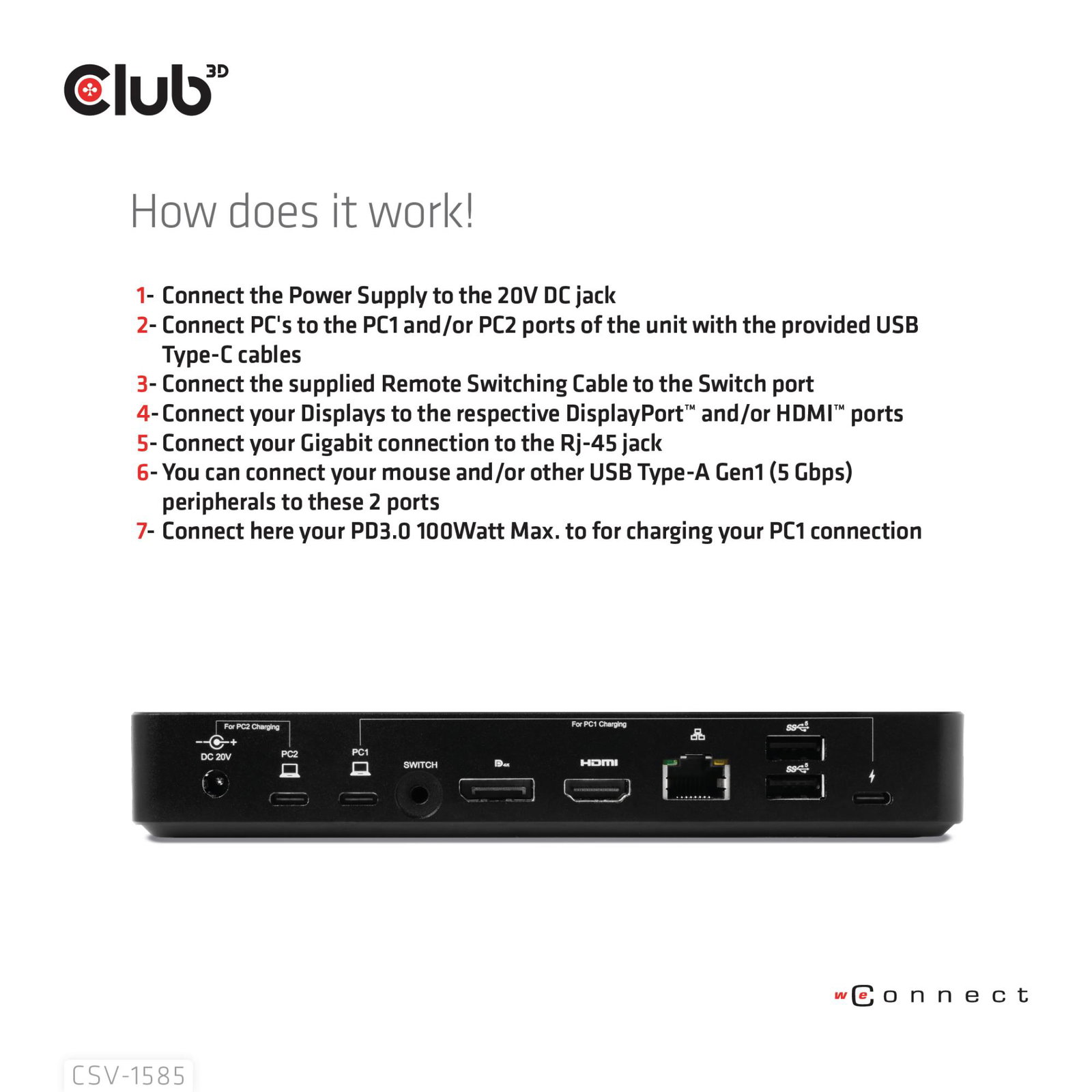

• Available Interfaces
• Input:
• PC 1 USB Type-C
• PC 2 USB Type-C
• 1x USB Type-C PD3.0(100Watt)
• for charging PC1
• 2x USB Type-A Gen1(5 Gbps)
• DC 20V/120Watt from
• Power Supply Unit
• Remote Switching Cable
• Ethernet Gigabit RJ-45
• Output:
• 1x HDMI™™ Female
• 1x DisplayPort™™ Female
• 1x Headset 3.5mm Stereo port
• 2x USB Type-C Gen1(5 Gbps)
• 1x USB Type-A Gen1(5 Gbps)
• Other info:
• Box size: 21 x 25 x 5 cm / 8.27 x 9.84 x 1.97"
• Device size: 18.5 x 7.9 x 2.8 cm / 7.28 x 3.11 x 1.1"
• USB Type-C Male Connector dimensions: 3.62 x 1.2 x 0.63 cm / 1.43 x 0.47 x 0.25"
• Device Weight: 248 gr / 8.75 oz
• 2x USB Cable Weight: 36 gr / 1.27 oz
• 1x Remote Cable Weight approx.: 24 gr / 0.85 oz
• PS Weight approx.: 592 gr / 20.88 oz (Depending on Power Plug)
• Box Weight: 142 gr / 5.01 oz
• Total Weight: Approx.: 1078 gr / 38.03 oz
• Meets ROHS, FCC, and CE EMI requirements

Summary: CLUB3D DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. Product colour: Black. Paper/cardboard packaging weight: 142 g. Harmonized System (HS) code: 8473 3020 | Vendor Homepage: https://club-3d.com/en/detail/2647/displayport-hdmi_kvm_switch-dock_4k60hz_for_usb_type_c_inputs/ | Console ports: 3.5mm headphone/3.5mm mic/DisplayPort/HDMI/USB A/USB C | DisplayPorts quantity: 1 | HDMI ports quantity: 1 | Keyboard port type: USB | Mouse port type: USB | Number of computers controlled: 2 | Video port type: HDMI/DisplayPort | Product colour: Black | Built-in display: No | Paper/cardboard packaging weight: 142 | Plastic packaging weight: 0 | Total paper/cardboard packaging weight: 0 | Total plastic packaging weight: 0 | Harmonized System (HS) code: 8473 3020 | Model: CSV-1585 | Model name: DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs | Units per Pallet: 0 | Unit Calculated Volume: 0.002563 | Unit Calculated Weight: 1.02
