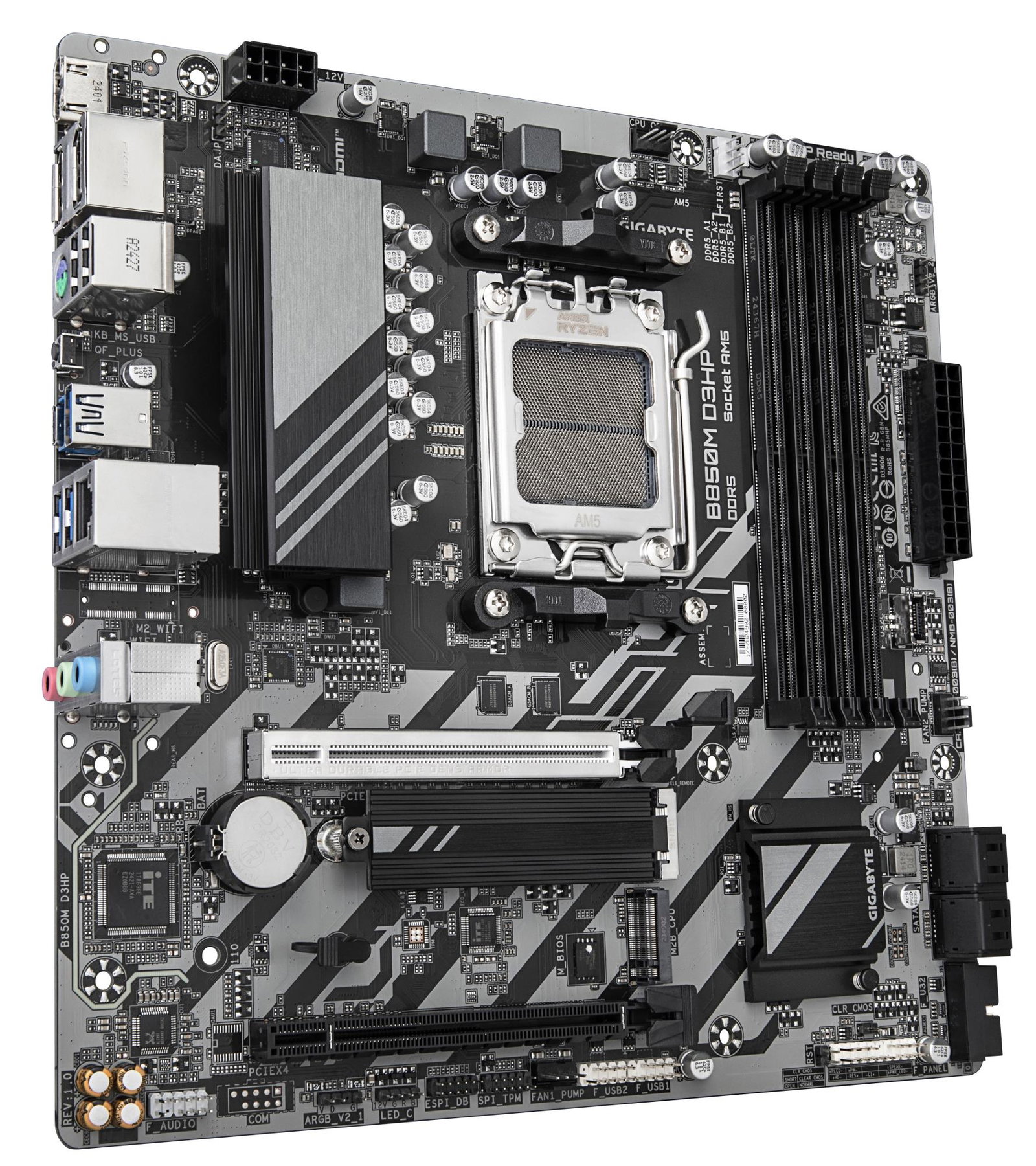

GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 – photo 1
GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 – photo 2
GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 – photo 3
GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 – photo 4
GIGABYTE

GIGABYTE B850M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

R2,917
incl. VAT: R3,354
  • Stock: Backordered - ETA 7-10 Days
  • Brand: GIGABYTE
  • Model: B850M D3HP 1.2
  • Weight: 0.99 kg
  • Dimensions: 27 × 7 × 27 cm
  • EAN: 4719331867058
  • Product code: 406912
Backordered goods Delivery in 7–10 working days

Available Options

R2,917 incl. VAT: R3,354

Key features

  • 5+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
  • M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink

Key features

  • 5+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch
  • M.2 Gen5 with M.2 Heatsink, MOSFET Heatsink
Tags: gigabyte motherboards , gigabyte motherboard

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Price History

Current price2,917 ZAR
2,9362,8812,82508-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 256 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max) 8200 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 3
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Serial port headers 1
12V power connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 4

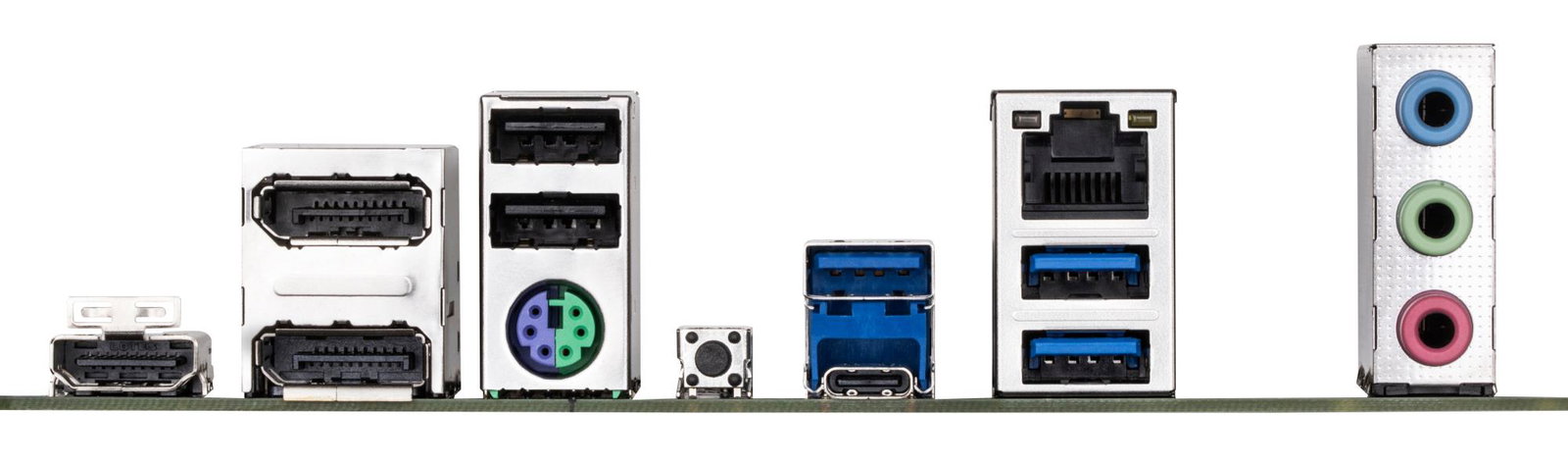

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 2.1
Headphone outputs 1
Microphone in Yes
WiFi-AP antenna jack 2
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B850
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Brown
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2580
1st M.2 highest PCI Express generation 5
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5
Clear CMOS jumper Yes
Clear CMOS button Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Antenna included Yes
Screws included Yes
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Other features
Weight 1.3 kg
Technical details
Warranty period 3 year(s)
