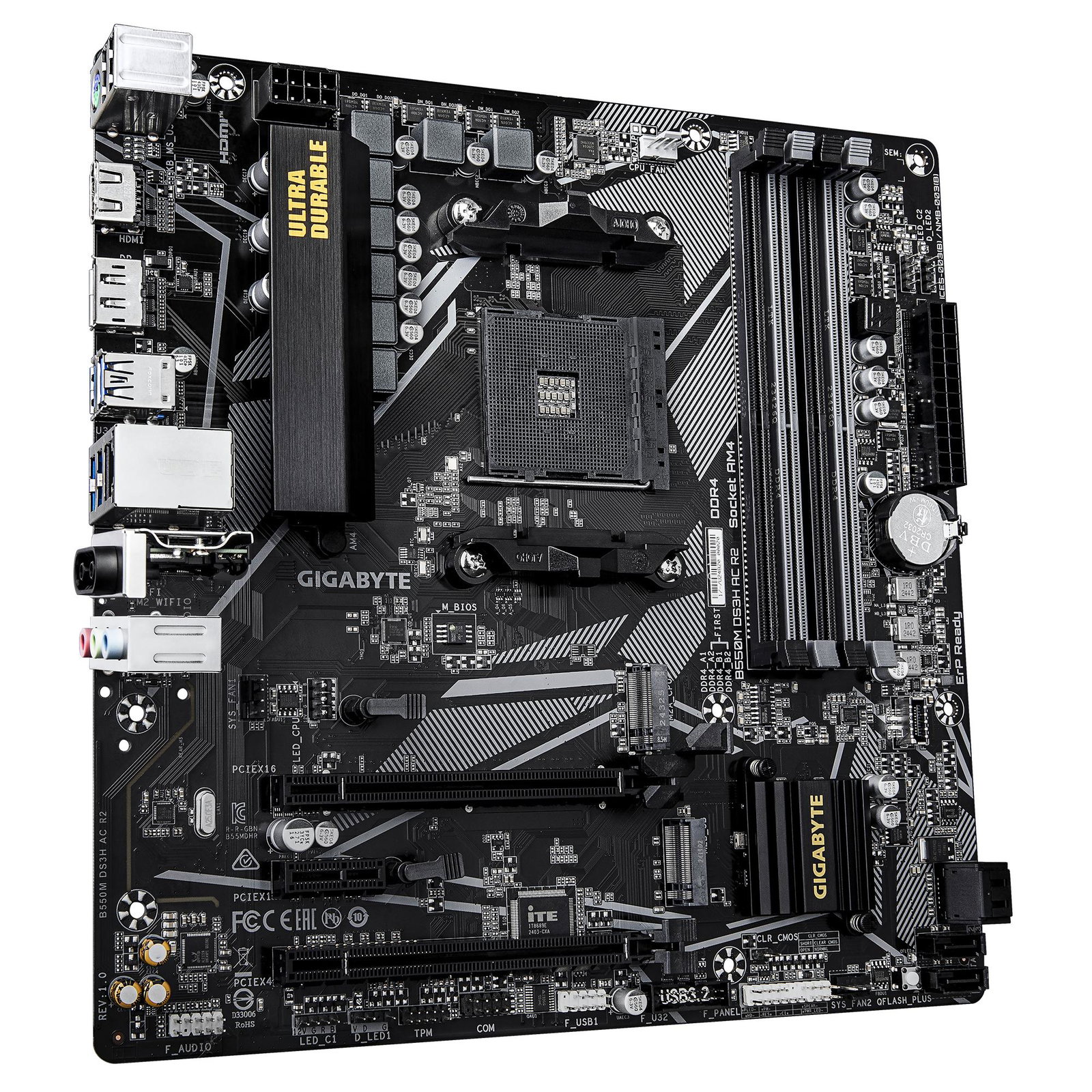

Mainboard GIGABYTE AMD B550 Socket AM4 micro ATX RAM DDR4-SDRAM 4xSlots Wi-Fi Yes Bluetooth Yes 2xNumber of M.2 (M) slots GIGABYTE B550M DS3H AC R2 B550MDS3HACR2

Материнська плата GIGABYTE B550M DS3H AC R2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

• AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
• Digital 5+3 phases VRM solution
• Dual Channel DDR4: 4*DIMMs
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch: PCIe slots with Quick Release Design
• Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal: VRM Thermal Armor Advanced
• Fast Networking: GbE LAN & Wi-Fi 5

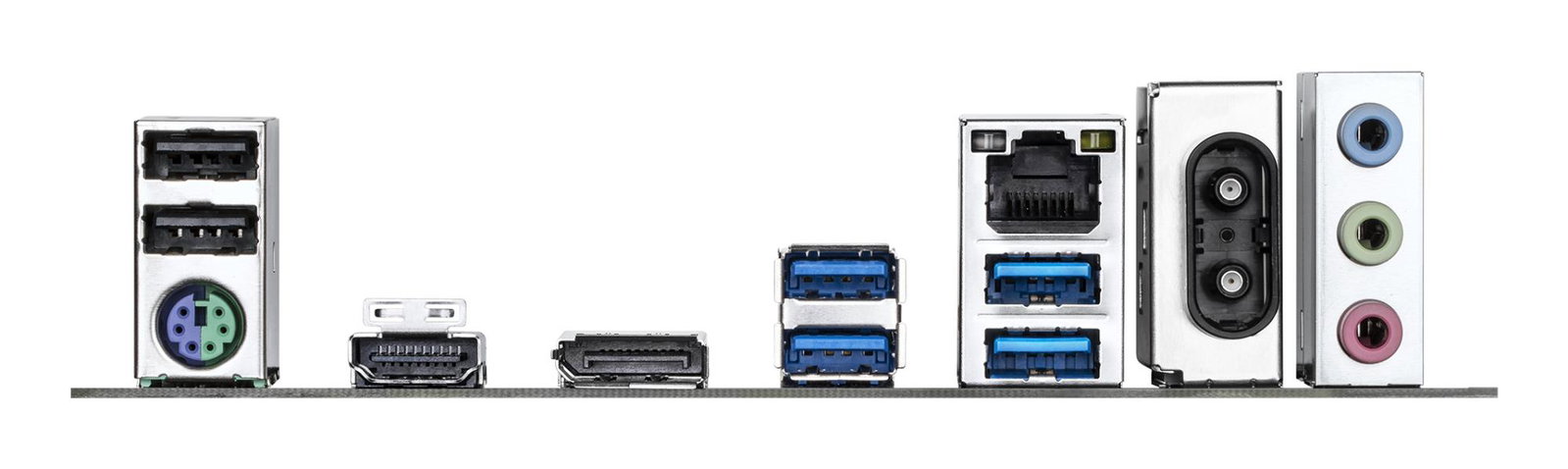

• Extended Connectivity: HDMI, Displayport
• PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Summary: GIGABYTE B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac) | Vendor Homepage: https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2 | Audio chip: Realtek ALC1220-VB | Audio output channels: 7.1 | Component for: PC | Cooling type: Passive | Motherboard chipset: AMD B550 | Motherboard chipset family: AMD | Motherboard form factor: micro ATX | PC health monitoring: Fan/Temperature/Voltage | Power source type: ATX | Product colour: Dark brown | Windows operating systems supported: Windows 10 x64/Windows 11 x64 | Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series | Processor manufacturer: AMD | Processor socket: Socket AM4 | Supported processor sockets: Socket AM4 | ECC сompatibility: ECC & Non-ECC | Maximum internal memory: 128 | Maximum internal memory per slot: 32 | Memory channels: Dual-channel | Memory slots type: DIMM | Number of memory slots: 4 | Supported memory clock speed (max): 4733 | Supported memory clock speeds: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 | Supported memory types: DDR4-SDRAM | Unbuffered memory: Yes | Number of HDDs supported: 4 | Number of storage drives supported: 6 | RAID levels: 0/1/10 | RAID support: Yes | Supported storage drive interfaces: M.2,PCI Express 3.0,PCI Express 4.0,SATA III | Supported storage drive types: HDD & SSD | DirectX version: 12.0 | HDCP: Yes | Maximum resolution: 5120 x 2880 | On-board graphics card: No | Parallel processing technology support: Not supported | ATX Power connector (24-pin): Yes | CPU fan connector: Yes | EPS power connector (8-pin): Yes | Front panel audio connector: Yes | Front panel connector: Yes | Number of chassis fan connectors: 2 | Number of CPU fan connectors: 1 | Number of EPS power connectors (8-pin): 1 | Number of RGB LED pin headers: 5 | Number of SATA III connectors: 4 | RGB LED pin header: Yes | Serial port headers: 1 | TPM connector: Yes | USB 2.0 connectors: 1 | USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 | DisplayPort version: 1.4 | DisplayPorts quantity: 1 | Ethernet LAN (RJ-45) ports: 1 | HDMI ports quantity: 1 | HDMI version: 2.1 | Headphone outputs: 1 | Line-in: Yes | Microphone in: Yes | PS/2 ports quantity: 1 | USB 2.0 ports quantity: 2 | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 | WiFi-AP antenna jack: 2 | Bluetooth: Yes | Bluetooth version: 5.0 | Ethernet interface type: Gigabit Ethernet | Ethernet LAN: Yes | LAN controller: Realtek RTL8111H | Top Wi-Fi standard: Wi-Fi 5 (802.11ac) | Wi-Fi: Yes | Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) | WLAN controller model: Realtek RTL8821CE | 1st M.2 highest PCI Express generation: 4.0 | 1st M.2 largest key size: 2280 | 2nd M.2 highest PCI Express generation: 3.0 | 2nd M.2 largest key size: 2280 | Number of M.2 (M) slots: 2 | PCI Express x1 (Gen 3.x) slots: 1 | PCI Express x16 (Gen 3.x) slots: 1 | PCI Express x16 (Gen 4.x) slots: 1 | ACPI version: 5.0 | BIOS memory size: 128 | BIOS type: UEFI AMI | Clear CMOS jumper: Yes | Desktop Management Interface (DMI) version: 2.7 | System Management BIOS (SMBIOS) version: 2.7 | Battery technology: Lithium-Manganese Dioxide (LiMnO2) | Battery type: CR2032 | Battery weight: 3 | Lithium weight per battery: 0.07 | Number of battery cells: 1 | Package depth: 268 | Package height: 68 | Package weight: 1070 | Package width: 270 | Products per shipping (inner) case: 1 | Depth: 244 | Height: 35 | Width: 244 | Antenna included: Yes | Batteries included: Yes | Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software | Screws included: Yes | Warranty period: 3 | Weight: 980 | Model: GIGABYTE B550M DS3H AC R2 | Units per Pallet: 0 | Units per Shipping Box: 10 | Unit Calculated Volume: 0.006423 | Unit Calculated Weight: 1.06
