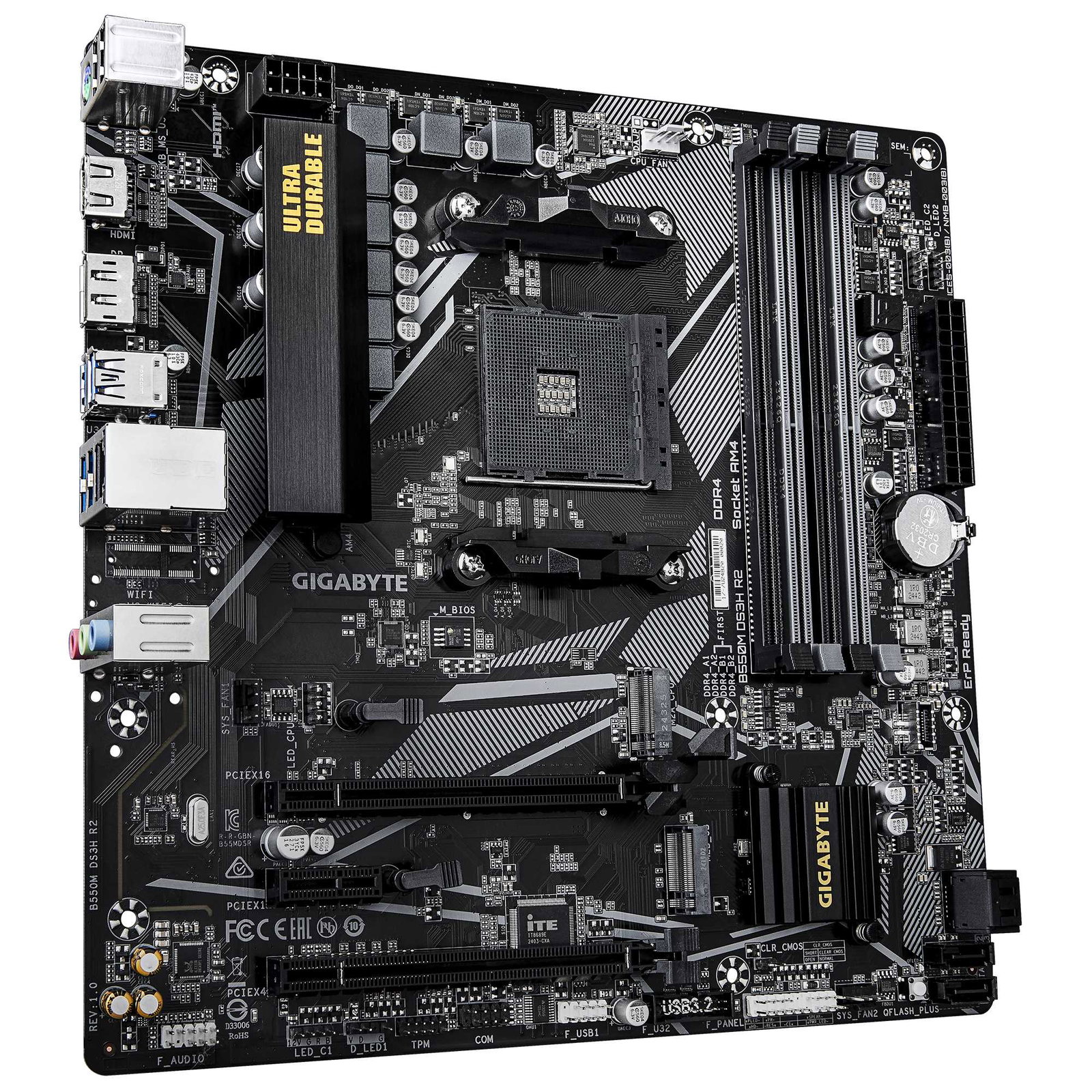

GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 1
GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 2
GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 3
GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 4
Out of Stock / Please Enquire ETA
GIGABYTE

GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

R2,203
incl. VAT: R2,534
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: GIGABYTE
  • Model: B550M DS3H R2
  • Weight: 0.87 kg
  • Dimensions: 27 × 27 × 6 cm
  • EAN: 4719331870454
  • Product code: 407285
Please Inquire
R2,203 incl. VAT: R2,534
We will email you when the product is back in stock.

Key features

  • AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital 5+3 phases VRM solution
  • Dual Channel DDR4: 4*DIMMs
  • EZ-Latch：PCIe slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Key features

  • AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital 5+3 phases VRM solution
  • Dual Channel DDR4: 4*DIMMs
  • EZ-Latch：PCIe slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Tags: gigabyte motherboards , gigabyte motherboard

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Price History

Current price2,203 ZAR
2,2172,1772,13708-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets Socket AM4
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max) 4733 MHz
Unbuffered memory Yes
Maximum internal memory per slot 32 GB
Storage controllers
Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 5120 x 2880 pixels
HDCP Yes
DirectX version 12
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Serial port headers 1
RGB LED pin header Yes
Number of RGB LED pin headers 5

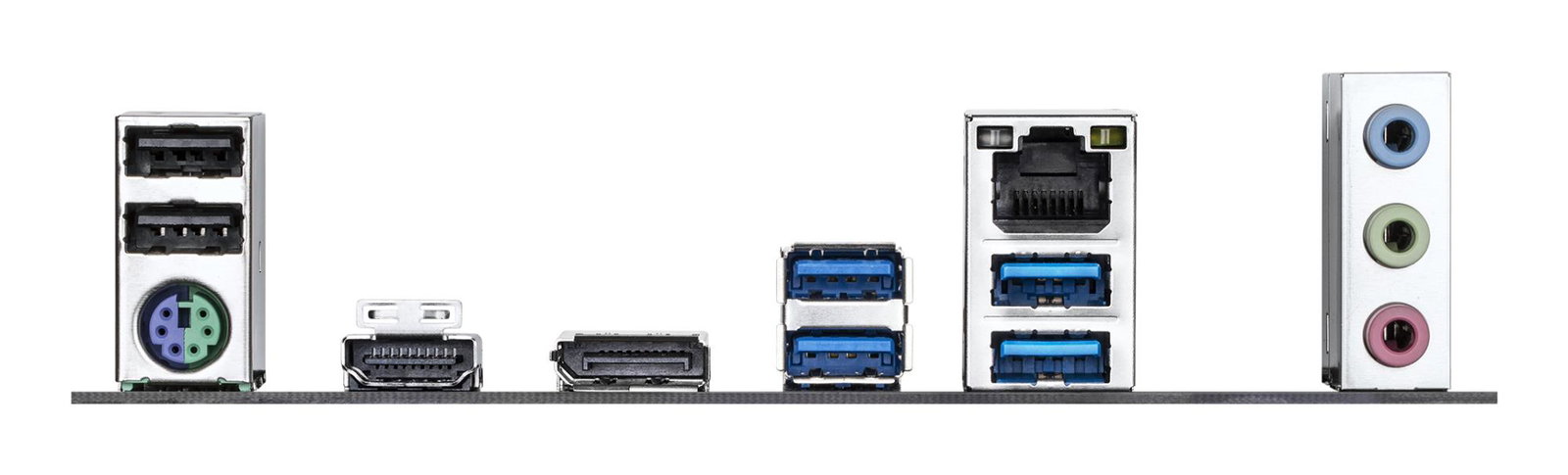

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
PS/2 ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Line-in Yes
Microphone in Yes
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B550
Audio output channels 7.1 channels
Audio chip Realtek ALC1220-VB
Product colour Dark brown
PC health monitoring Fan, Temperature, Voltage
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 3
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Package weight 947 g
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Screws included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight 870 g
Technical details
Warranty period 3 year(s)
