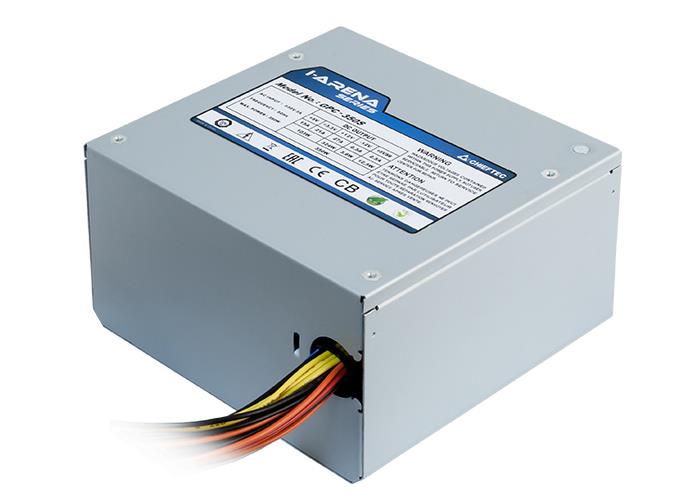

CASE PSU ATX 700W/GPC-700S CHIEFTEC

In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.

Summary: Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm | Vendor Homepage: https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html | AC input frequency: 50 | AC input voltage: 230 | Combined power (+3.3V): 130 | Combined power (+5Vsb): 12.5 | Input current: 6.3 | Max output current (+12V1): 52.5 | Max output current (+3.3V): 22 | Max output current (+5V): 22 | Max output current (+5Vsb): 2.5 | Max output current (-12V): 0.3 | Power Factor Correction (PFC) type: Active | Power protection features: Over voltage/Overload/Short circuit/Under voltage | Total power: 700 | Cabling type: Non-Modular | Motherboard power connector: 24-pin ATX | Number of SATA power connectors: 6 | Peripheral (Molex) power connectors (4-pin): 2 | ATX version: 2.3 | Power supply unit (PSU) form factor: PS/2 | Purpose: PC | Fan diameter: 120 | Number of fans: 1 | Product colour: Silver | Depth: 150 | Height: 87 | Width: 140 | Harmonized System (HS) code: 84733020 | Units per Pallet: 0 | Units per Shipping Box: 10 | Unit Calculated Volume: 0.004671 | Unit Calculated Weight: 1.65
