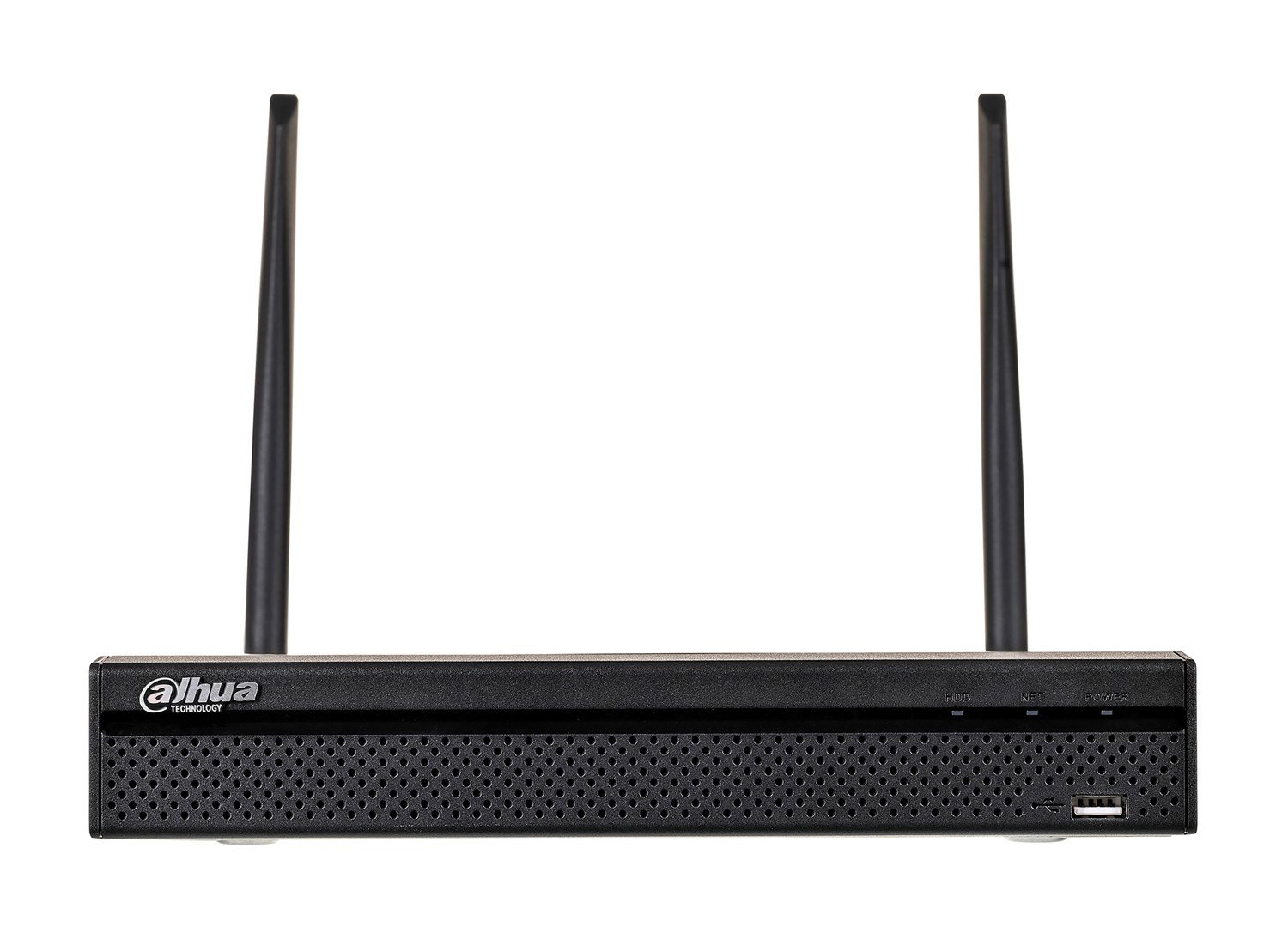

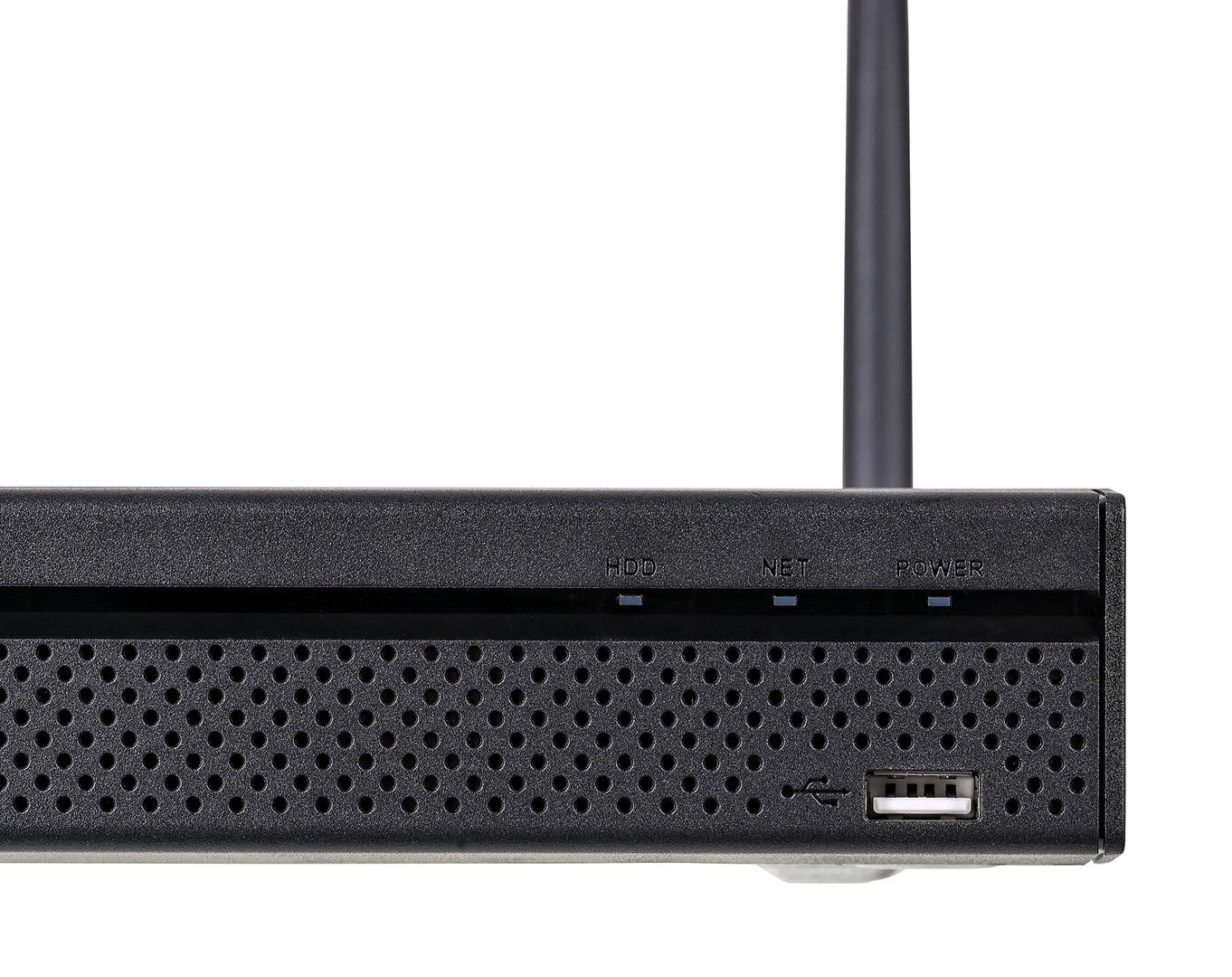

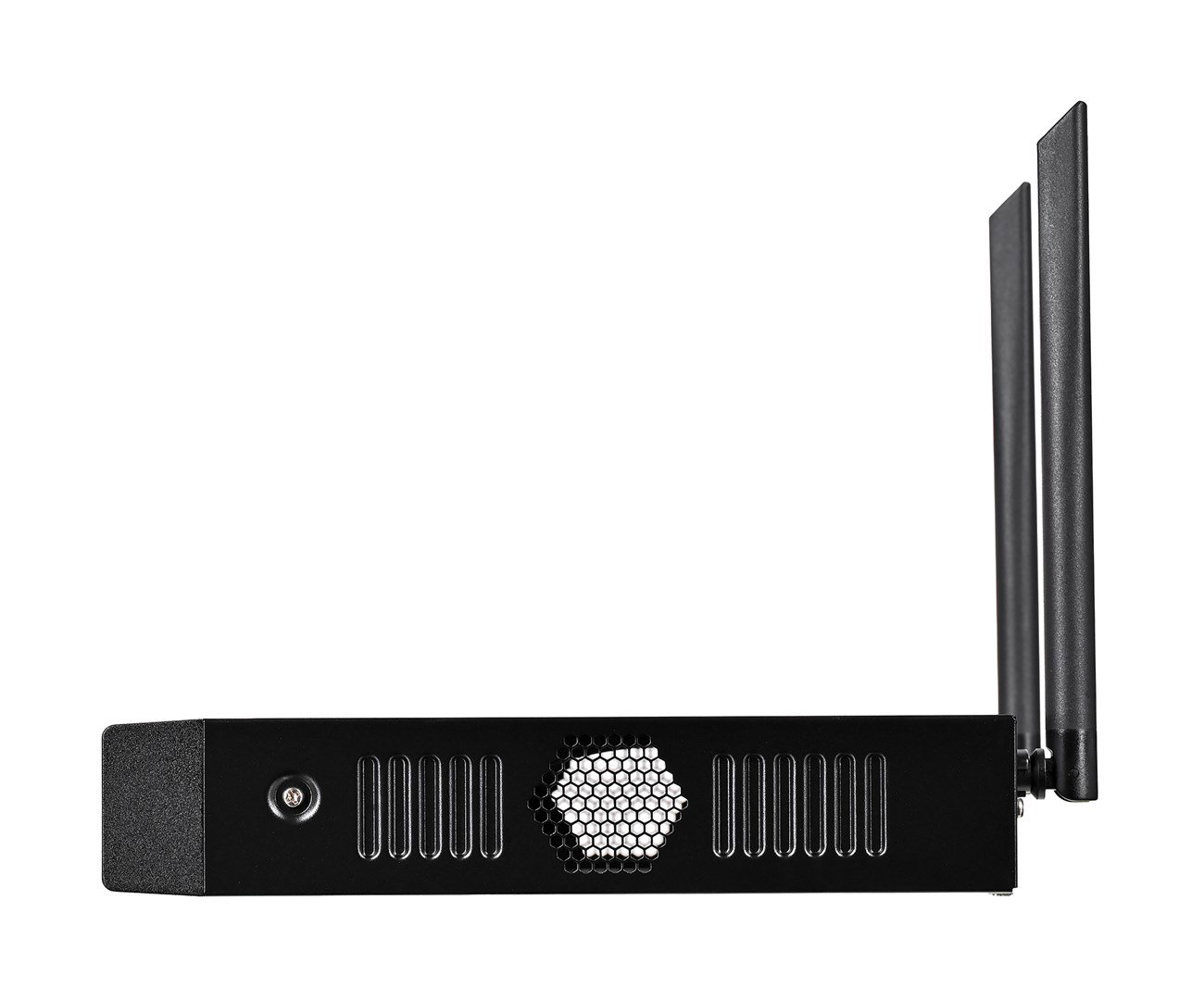

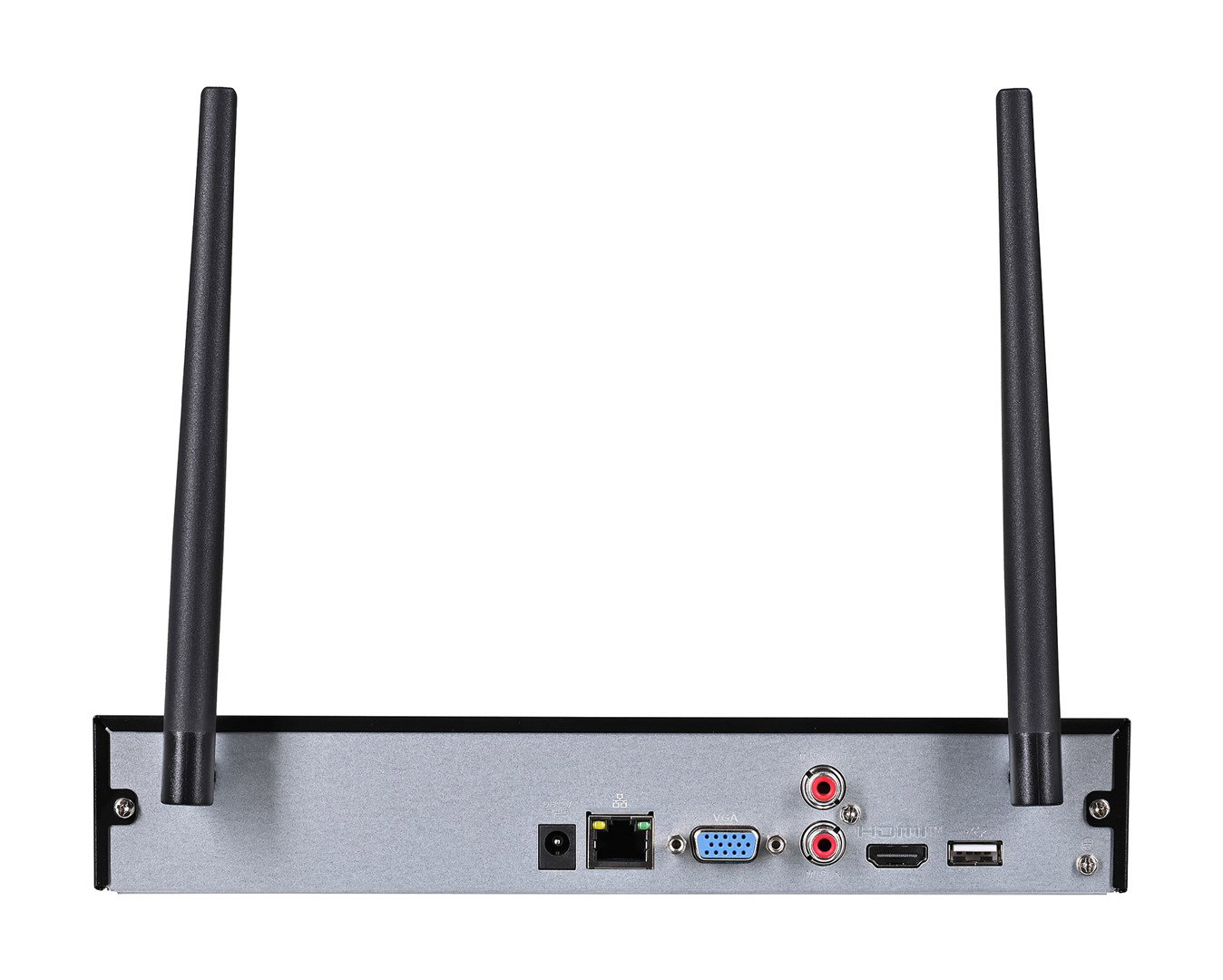

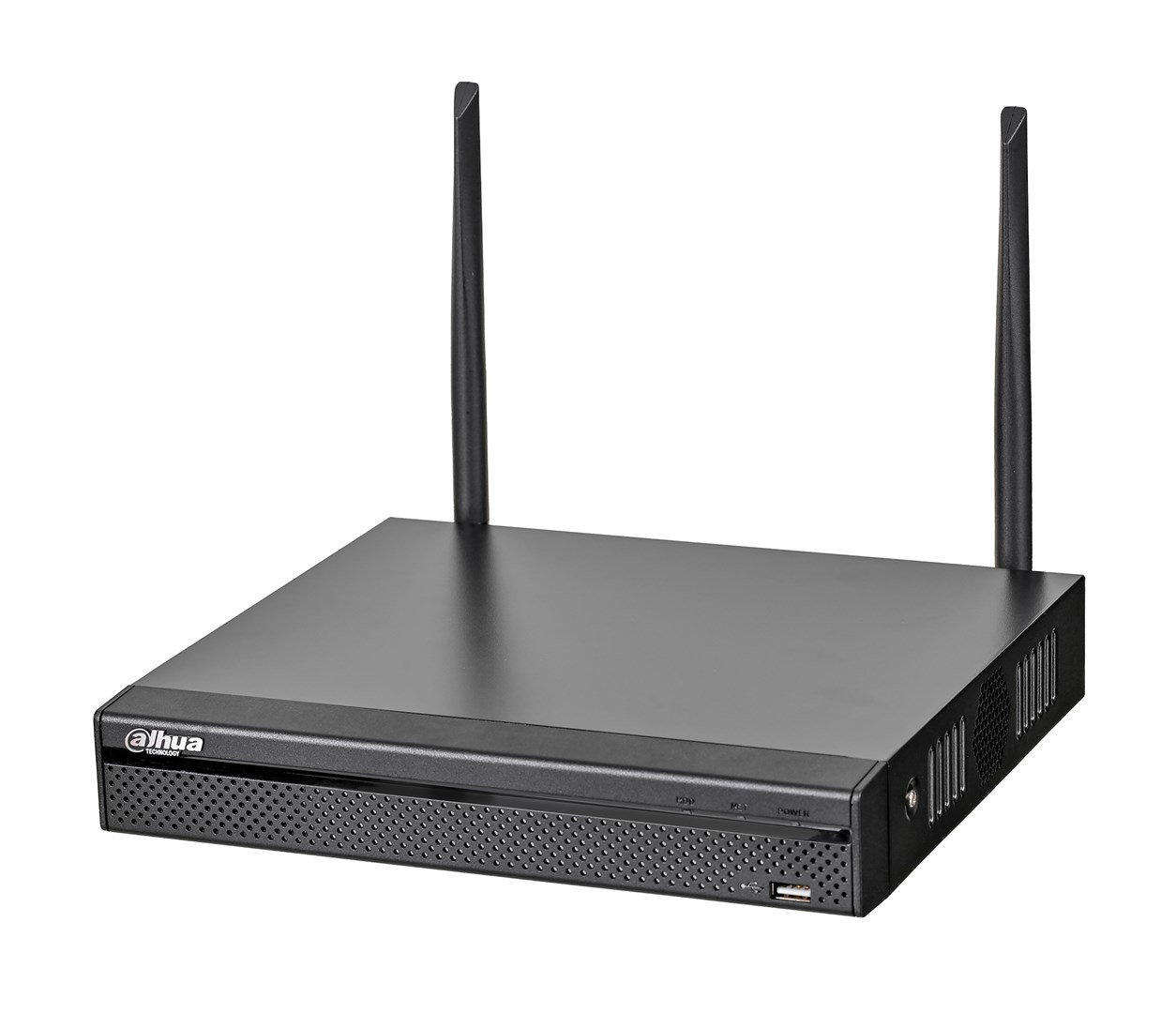

Dahua Technology NVR1104HS-W-S2-CE 1U Black
R1,843
incl. VAT: R2,120
- Stock: Out of Stock / Please Enquire ETA
- Brand: DAHUA
- Model: NVR1104HS-W-S2-CE
- Weight: 1.54kg
- Dimensions: 12.00cm x 37.00cm x 31.00cm
- EAN: 6923172542984
Pagrindinės savybės
- New 4.0 user interface
- One-click wireless pairing to IPCs
- Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions
- Automatic cascading of IPCs for long-distance surveillance
- 4–ch@1080P (25FPS), self-adaptive decoding capability
- Supports mainstream cameras of ONVIF protocol
- Smart H.265/Smart H.264
- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
- Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
- DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext
- TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)
Pagrindinės savybės
- New 4.0 user interface
- One-click wireless pairing to IPCs
- Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions
- Automatic cascading of IPCs for long-distance surveillance
- 4–ch@1080P (25FPS), self-adaptive decoding capability
- Supports mainstream cameras of ONVIF protocol
- Smart H.265/Smart H.264
- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
- Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
- DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext
- TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)
With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
Kainos istorija
Dabartinė kaina1.843 ZAR
Įprasta kaina
| Specifications | |
| Warehouse group | Recorders [+14][-22] |
| Performance | |
| Video input channels | 4 channels |
| Video recording modes | 720p, 1080p |
| Video motion detection | Yes |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
| Video codecs | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Audio codecs | PCM; G711A; G711U; G726 |
| Maximum frame rate | 25 fps |
| Input bandwidth | 40 Mbit/s |
| Output bandwidth | 20 Mbit/s |
| Recording modes | Manual |
| Hard drive | |
| Number of HDDs installed | 1 |
| Maximum storage capacity | 16 TB |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P |
| Features | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | HDD, Network, Power |
| Product colour | Black |
| Certification | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C |
| Processor | |
| Built-in processor | Yes |
| Power | |
| Output current | 1.5 A |
| Output voltage | 12 V |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome; IE 9 or later; Firefox |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Weight & dimensions | |
| Width | 260.3 mm |
| Depth | 247.3 mm |
| Height | 44.7 mm |
| Weight | 824 g |
| Package width | 372 mm |
| Package depth | 117 mm |
| Package height | 308 mm |
| Package weight | 1.56 kg |
