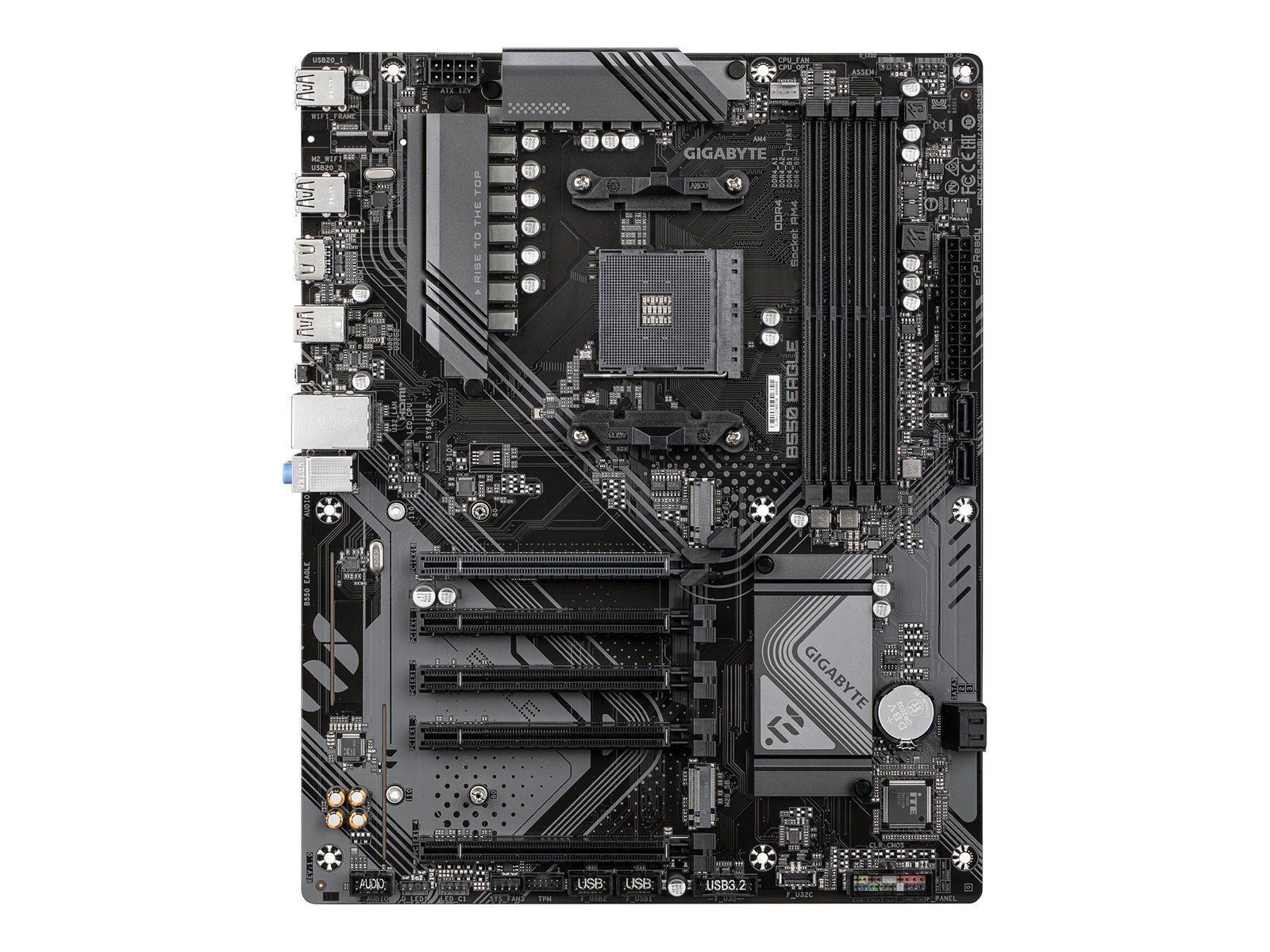

GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2 – photo 1
GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2 – photo 2
GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2 – photo 3
GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2 – photo 4
Out of Stock / Please Enquire ETA
GIGABYTE

GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2

R2,434
incl. VAT: R2,799
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: GIGABYTE
  • Model: B550 EAGLE
  • Weight: 1.22 kg
  • Dimensions: 28 × 34 × 8 cm
  • EAN: 4719331868208
  • Product code: 421680
Please Inquire
R2,434 incl. VAT: R2,799
We will email you when the product is back in stock.

Key features

  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital twin 10+3+1 phases VRM solution
  • Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch: PCIe slots with Quick Release Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Key features

  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital twin 10+3+1 phases VRM solution
  • Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch: PCIe slots with Quick Release Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Tags: gigabyte motherboards , gigabyte motherboard

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Price History

Current price2,434 ZAR
2,4502,3982,34608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets Socket AM4
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max) 3200 MHz
Unbuffered memory Yes
Maximum internal memory per slot 32 GB
Storage controllers
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 2
Number of chassis fan connectors 3
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Number of water pump connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 5
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD B550
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Dark brown
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 4
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 22110
1st M.2 highest PCI Express generation 4
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 3
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 1.48 kg
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Screws included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight 1.25 kg
Technical details
Warranty period 3 year(s)
