Chieftec EON power supply unit 600 W 20+4 pin ATX ATX Black – photo 1
Chieftec EON power supply unit 600 W 20+4 pin ATX ATX Black – photo 2
Chieftec EON power supply unit 600 W 20+4 pin ATX ATX Black – photo 3
Out of Stock / Please Enquire ETA
CHIEFTEC

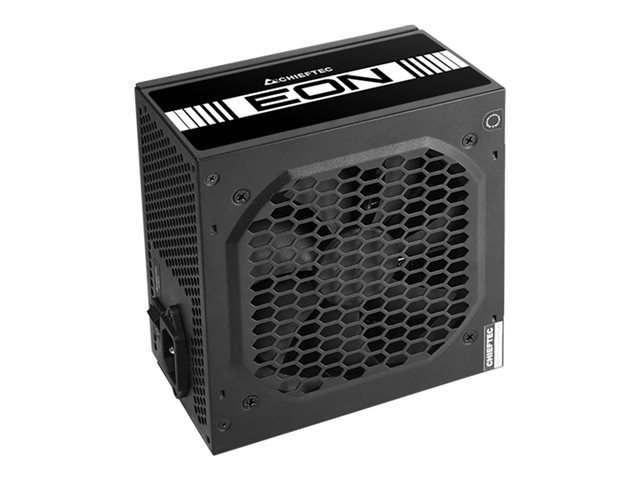

Chieftec EON power supply unit 600 W 20+4 pin ATX ATX Black

R1,374
incl. VAT: R1,581
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: CHIEFTEC
  • Model: ZPU-600S
  • Weight: 1.63 kg
  • Dimensions: 10 × 25 × 18 cm
  • EAN: 753263078438
  • Product code: 421817
Please Inquire
R1,374 incl. VAT: R1,581
We will email you when the product is back in stock.

Key features

  • 600 W 200 - 240 V 50 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC/Server ATX 80 PLUS
  • 12 cm
  • Black

Key features

  • 600 W 200 - 240 V 50 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC/Server ATX 80 PLUS
  • 12 cm
  • Black
Tags: chieftec power supply enclosures , chieftec power supply enclosure

Description

The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly

competitive pricing, equipped with silent 120mm fans.

The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.

Price History

Price History

Current price1,374 ZAR
1,3901,3481,30608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Power
Total power 600 W
AC input voltage 200 - 240 V
AC input frequency 50 Hz
Input current 4.5 A
Maximum input current (@220V) 4.5 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (-12V) 4.8 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V1) 45 A
Max output current (+5V) 20 A
Max output current (-12V) 0.4 A
Max output current (+5Vsb) 2.5 A
Power protection features Short circuit, Surge and inrush, Surge protection
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 65 cm
Number of SATA power connectors 4
SATA power cable length 450,600,750 mm
Peripheral (Molex) power cable length 450,600,750 mm
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 2
CPU power connector (4+4 pin) Yes
ATX power connector (20+4 pin) Yes
Cabling type Non-Modular
Performance
Purpose PC/Server
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS
Supported motherboard form factors ATX
ATX version 2.3
Design
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.34 kg
Logistics data
Warranty period 2 year(s)
