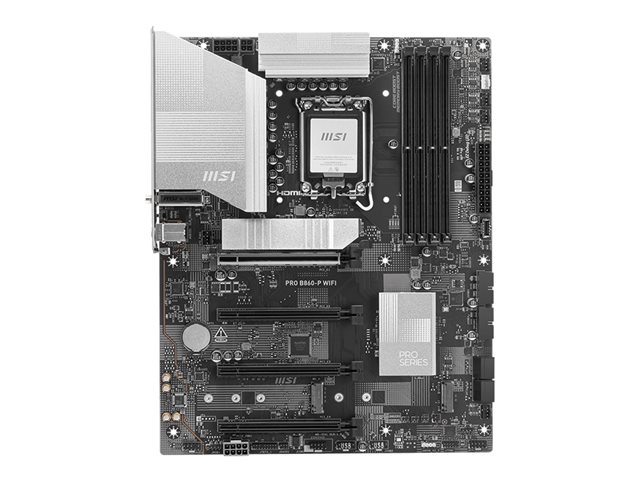

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – photo 1
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – video

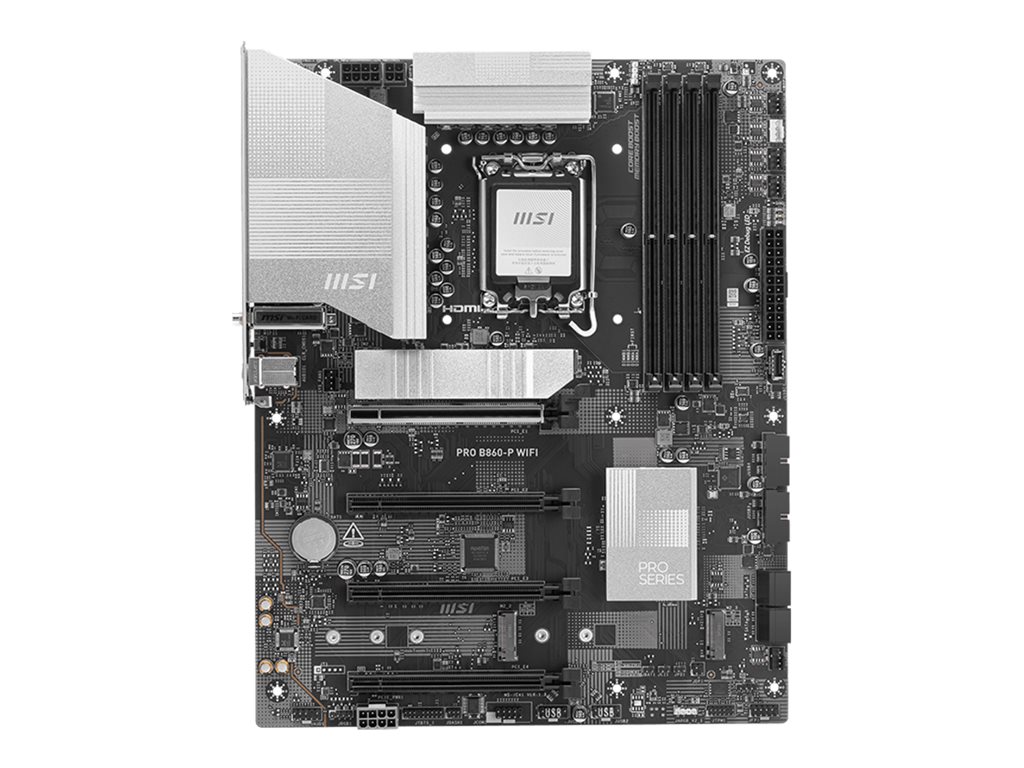

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – photo 2
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – photo 3
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – photo 4
MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX – photo 5
Out of Stock / Please Enquire ETA
MSI

MSI PRO B860-P WIFI motherboard Intel B860 LGA 1851 (Socket V1) ATX

R3,658
incl. VAT: R4,207
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: MSI
  • Model: PRO B860-P WIFI
  • Weight: 1.6 kg
  • Dimensions: 34 × 28 × 8 cm
  • EAN: 4711377286572
  • Product code: 421971
Please Inquire
R3,658 incl. VAT: R4,207
We will email you when the product is back in stock.

Key features

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Key features

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Tags: msi motherboards , msi motherboard

Description

PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Price History

Price History

Current price3,658 ZAR
3,7053,5983,49008-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Maximum internal memory supported by processor 256 GB
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 256 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 4800,6400,8800 MHz
Supported memory clock speed (max) 8800 MHz
Storage controllers
Supported storage drive interfaces M.2, Micro SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 7
RAID support Yes
RAID levels 0, 1, 5, 10
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Total number of SATA connectors 4
CPU fan connector Yes
Number of CPU fan connectors 1
Number of water pump connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 3
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
HDMI version 2.1
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset Intel B860
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Black
Windows operating systems supported Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots 3
PCI Express x16 (Gen 5.x) slots 1
Number of M.2 (M) slots 3
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 5
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4
3rd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 6.5
System Management BIOS (SMBIOS) version 3.7
Weight & dimensions
Width 243.8 mm
Depth 304.8 mm
