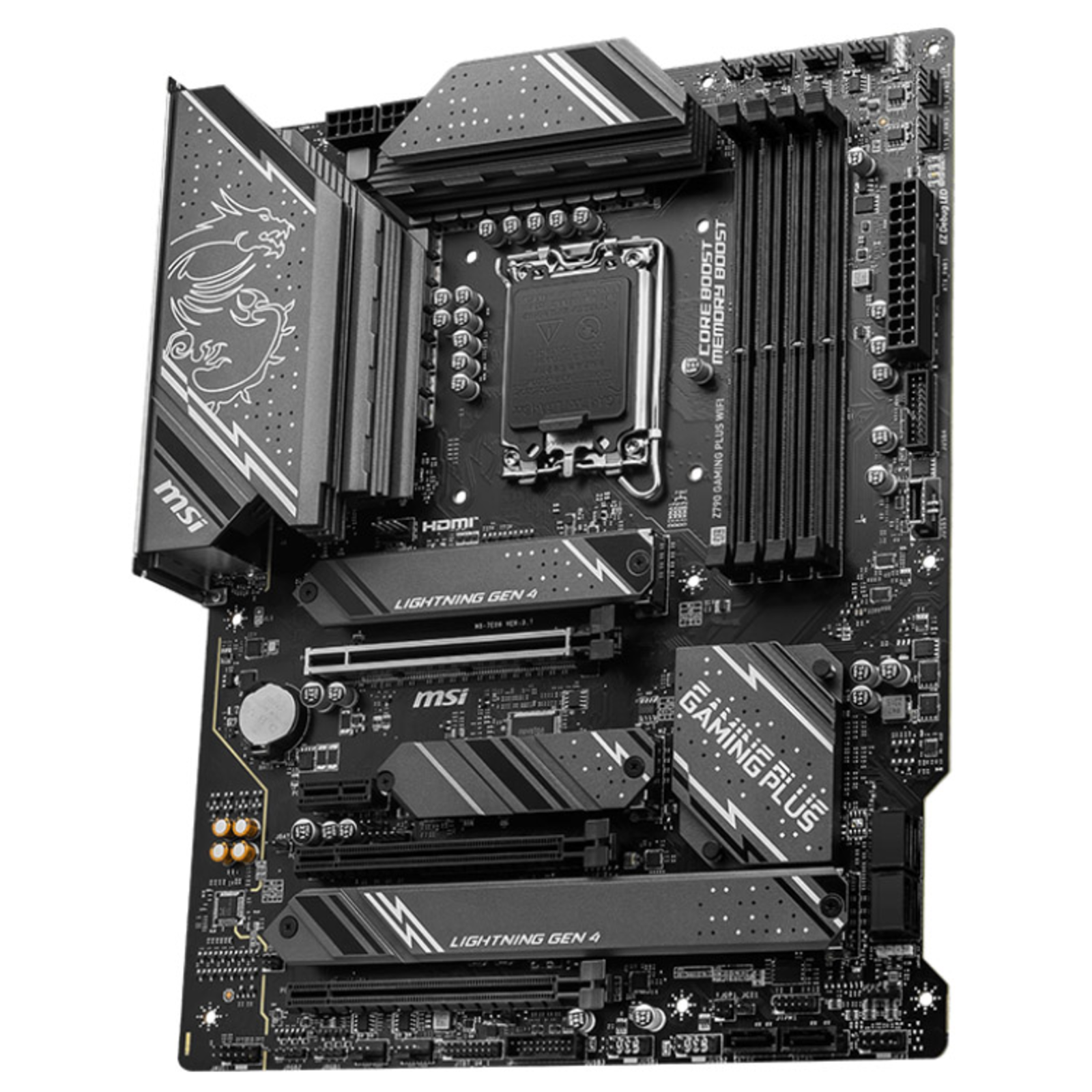

MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX – photo 1

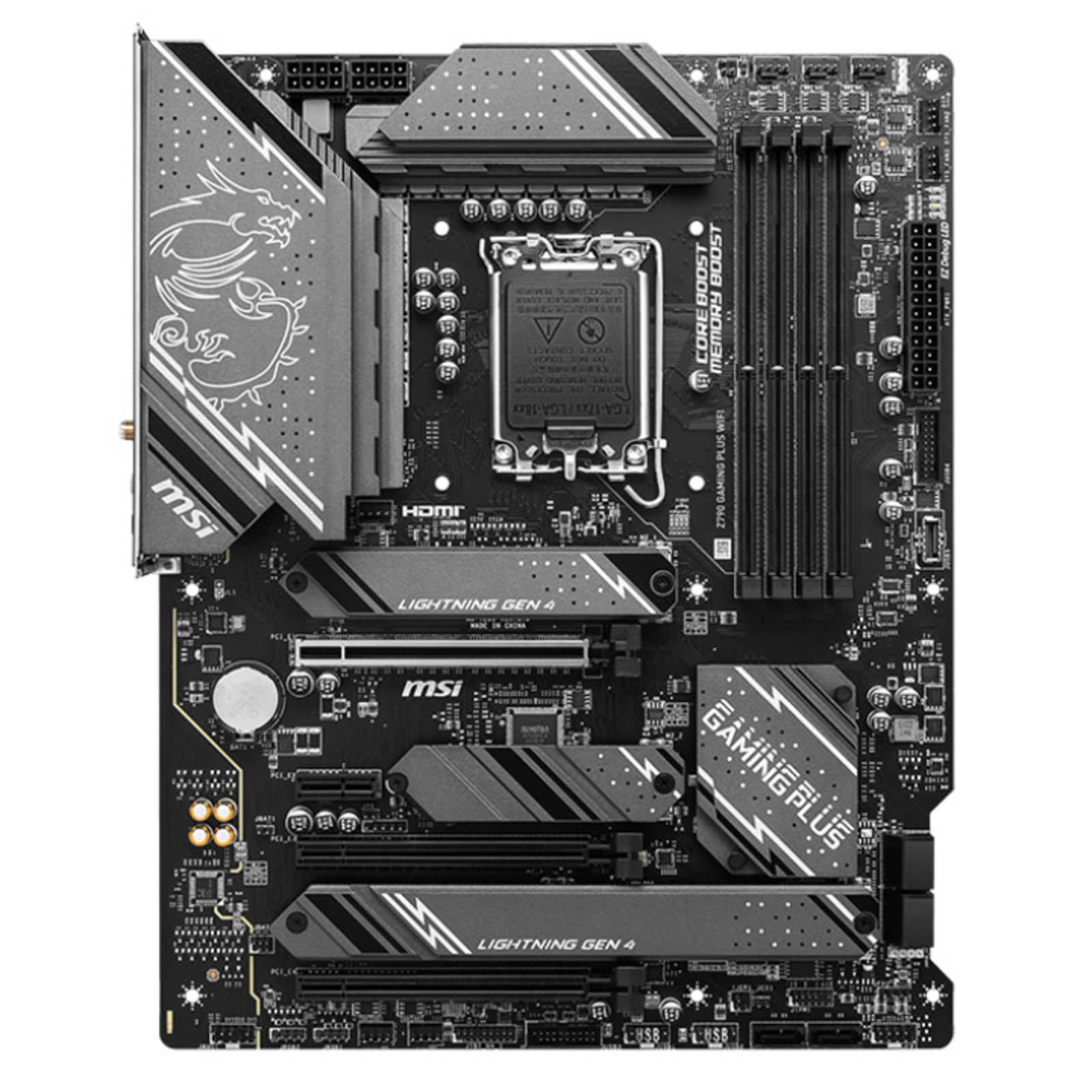

MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX – photo 2
MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX – photo 3
MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX – photo 4
MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX – photo 5
Out of Stock / Please Enquire ETA
MSI

MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX

R5,602
incl. VAT: R6,442
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: MSI
  • Model: 7E06-026R
  • Weight: 1.77 kg
  • Dimensions: 34 × 7 × 27 cm
  • EAN: 4711377134712
  • Product code: 473526
Please Inquire
R5,602 incl. VAT: R6,442
We will email you when the product is back in stock.

Key features

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Key features

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Tags: msi motherboards , msi motherboard

Description

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Price History

Price History

Current price5,578 ZAR
5,6615,4475,23308-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets LGA 1700
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 192 GB
ECC сompatibility Non-ECC
Supported memory clock speeds 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max) 7200 MHz
Storage controllers
Supported storage drive interfaces M.2, PCI Express
Supported storage drive types HDD & SSD
Number of storage drives supported 10
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 6
Number of SATA II connectors 0
Number of SATA connectors 0
Front panel audio connector Yes
Front panel connector Yes
TPM connector Yes
RGB LED pin header Yes

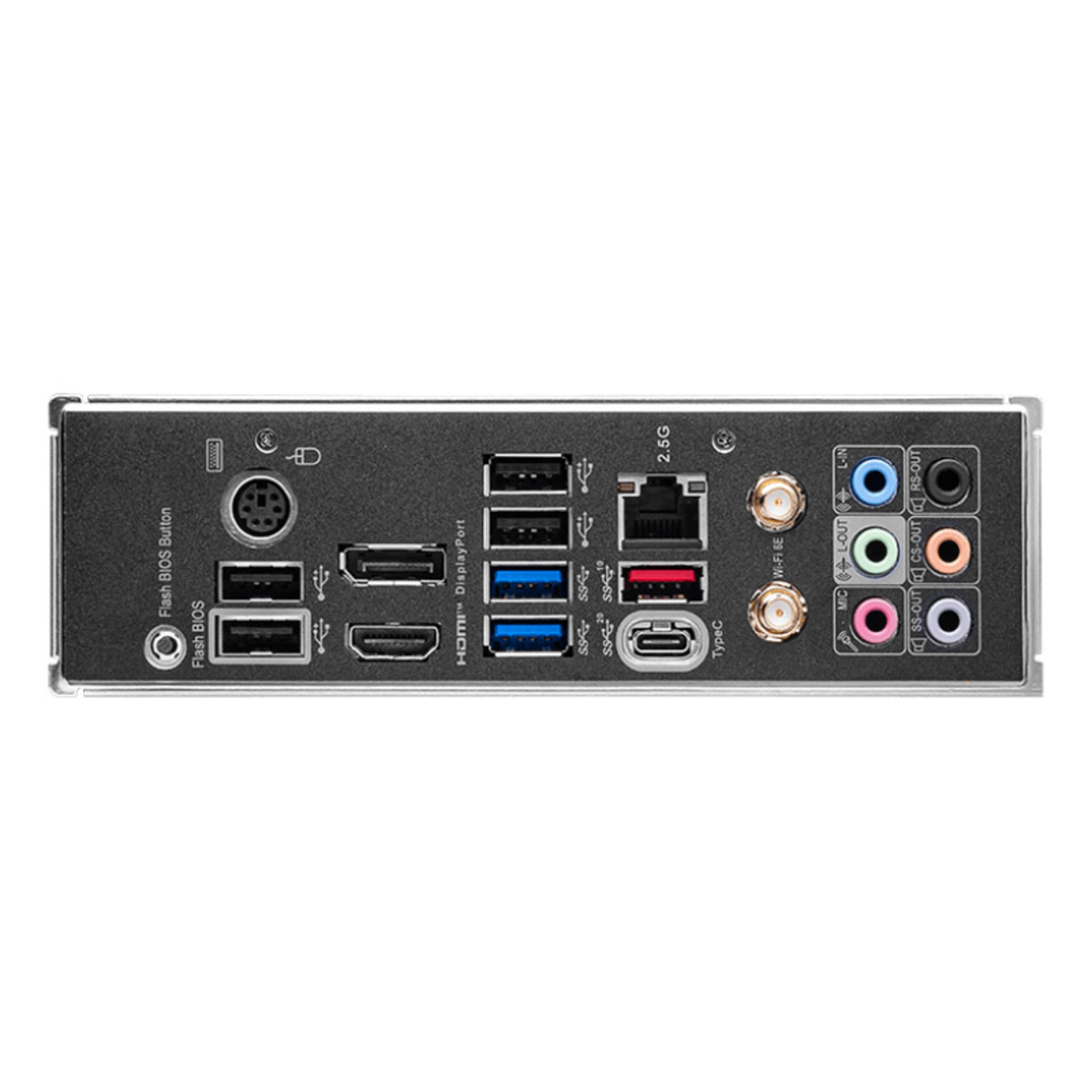

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.1
S/PDIF out port Yes
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth Yes
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Motherboard chipset Intel Z790
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Black
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI slots 4
Number of M.2 (M) slots 4
Weight & dimensions
Width 243.8 mm
Depth 304.8 mm
Packaging content
Cables included SATA
