ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included) – photo 1
ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included) – photo 2
ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included) – photo 3
ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included) – photo 4
Out of Stock / Please Enquire ETA
ATEN

ATEN 4-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)

R5,721
incl. VAT: R6,579
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: ATEN
  • Model: CS1914
  • EAN: 4719264645044
  • Product code: 490404
Please Inquire
R5,721 incl. VAT: R6,579
We will email you when the product is back in stock.

Key features

  • Supports superior video quality – up to 3840 x 2160 @ 30 Hz
  • Computer selection via front panel pushbuttons, hotkeys and mouse1
  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
  • DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter3

Key features

  • Supports superior video quality – up to 3840 x 2160 @ 30 Hz
  • Computer selection via front panel pushbuttons, hotkeys and mouse1
  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
  • DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter3
Tags: aten audio & video cable adapters & couplers , aten audio & video cable adapters & coupler

Description

The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.

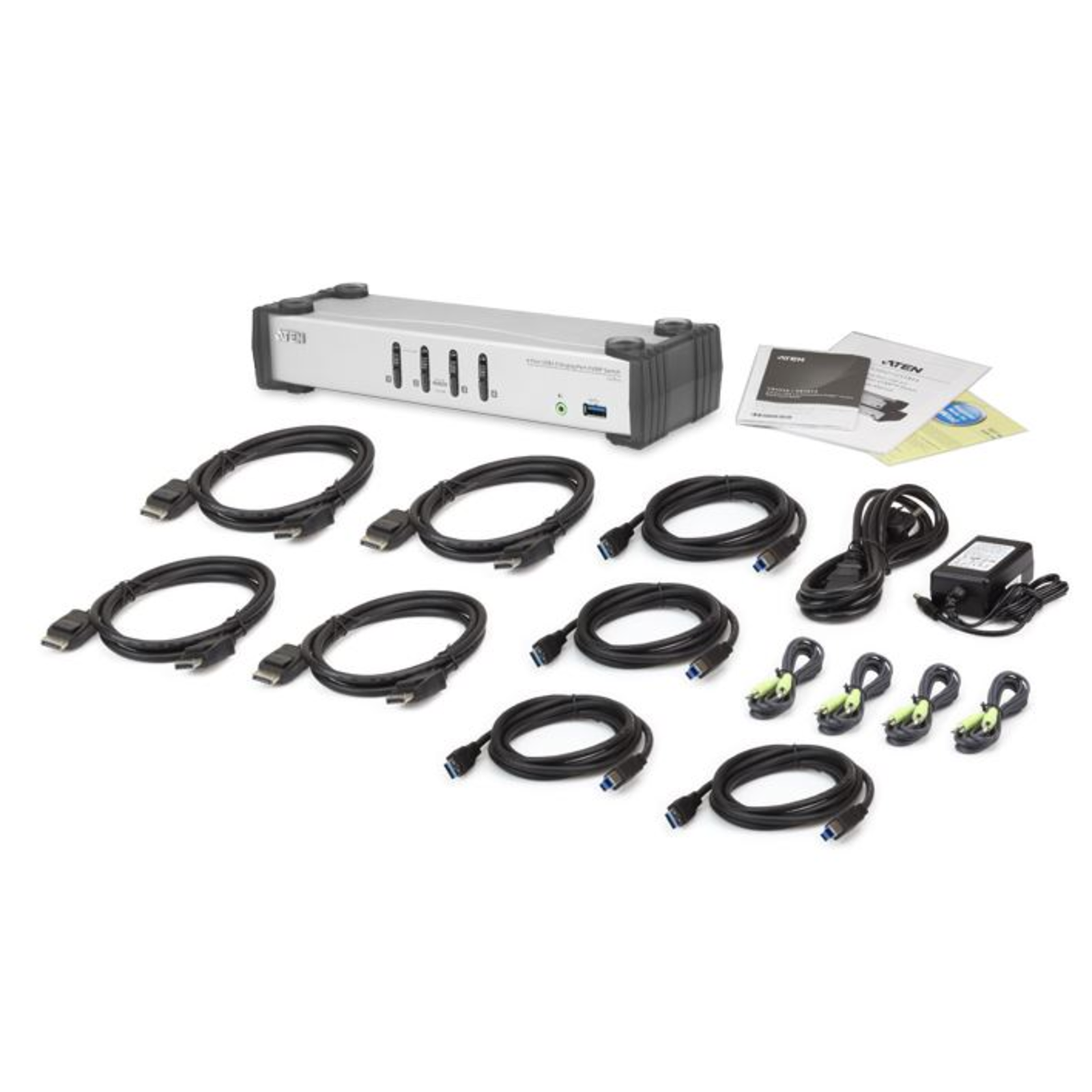

1 x CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch
4 x LIN5-20K1-K14G DisplayPort Cables
4 x LIN6-11C1-E12G USB 3.0 Cables
4 x LIN5-0205-21CG Audio Cables
1 x 0AD8-8005-40MG Power Adapter
1 x User Instructions

Price History

Price History

Current price5,721 ZAR
7,3966,4825,56808-2409-0409-1609-2710-0910-20
Regular price

Specifications

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type DisplayPort
Console ports USB A
DisplayPorts quantity 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
Console USB ports quantity 2
USB hub Yes
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 6
DC-in jack Yes
Performance
Maximum resolution 3840 x 2160 pixels
Automatic switching Yes
Scan interval 1,99 s
HDCP Yes
Hot-Plug support Yes
Design
Rack mounting No
Product colour Black, Grey
Housing material Metal, Plastic
LED indicators Status, USB
Push button Yes
Hot keys Yes
Display
Built-in display No
Power
Output voltage 5 V
Power consumption (typical) 2.99 W
External power adapter Yes
System requirements
Mac operating systems supported Yes
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 88 mm
Depth 270 mm
Height 55.5 mm
Weight 1.97 kg
Packaging data
Package width 98 mm
Package depth 325 mm
Package height 210 mm
Package weight 2.46 kg
Packaging content
Cables included Audio (3.5mm), DisplayPort, USB
Manual Yes
AC adapter included Yes
Logistics data
Master (outer) case net weight 9.85 kg
Harmonized System (HS) code 85176200
Master (outer) case width 342 mm
Master (outer) case length 512 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 12.8 kg
Products per master (outer) case 5 pc(s)
