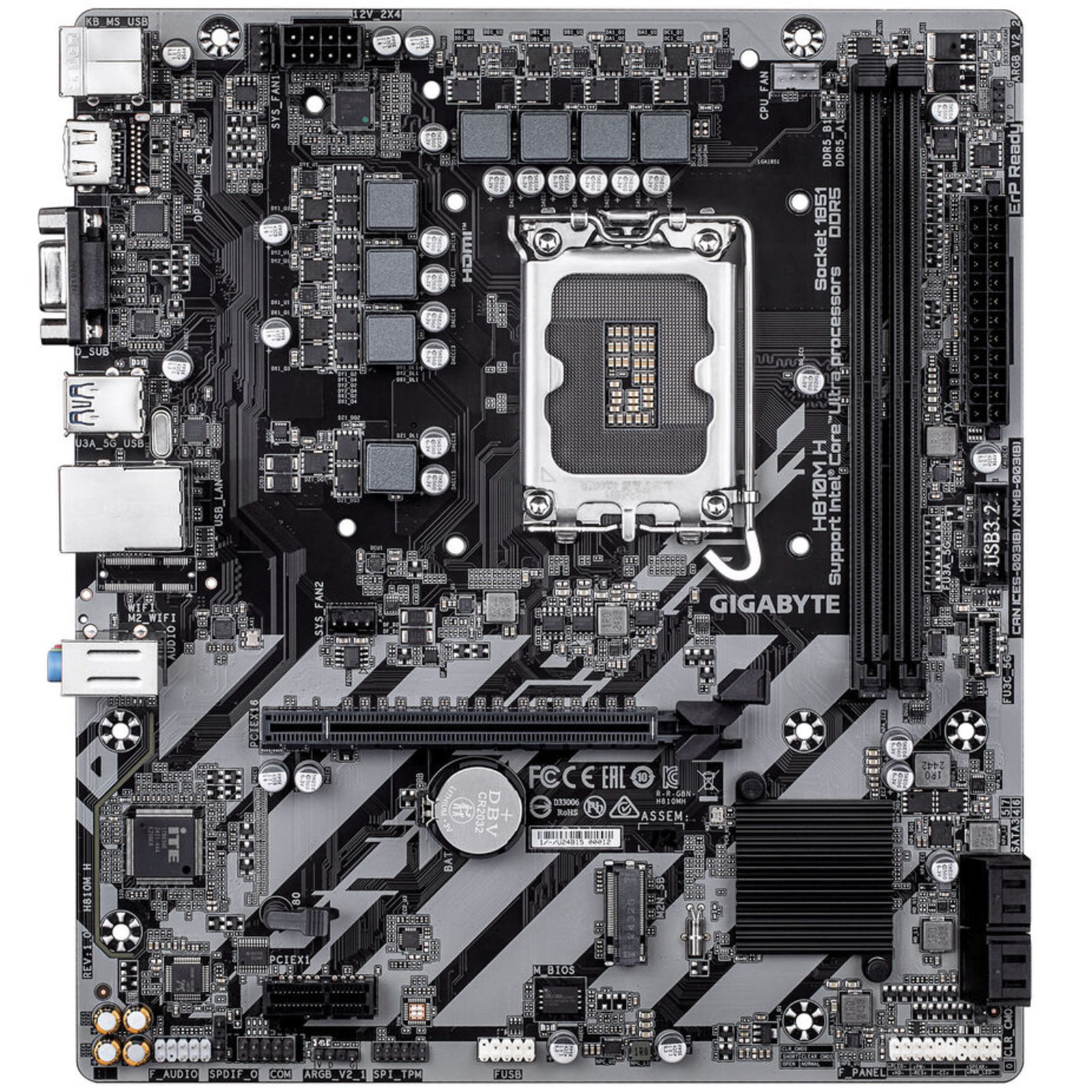

GIGABYTE H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 1

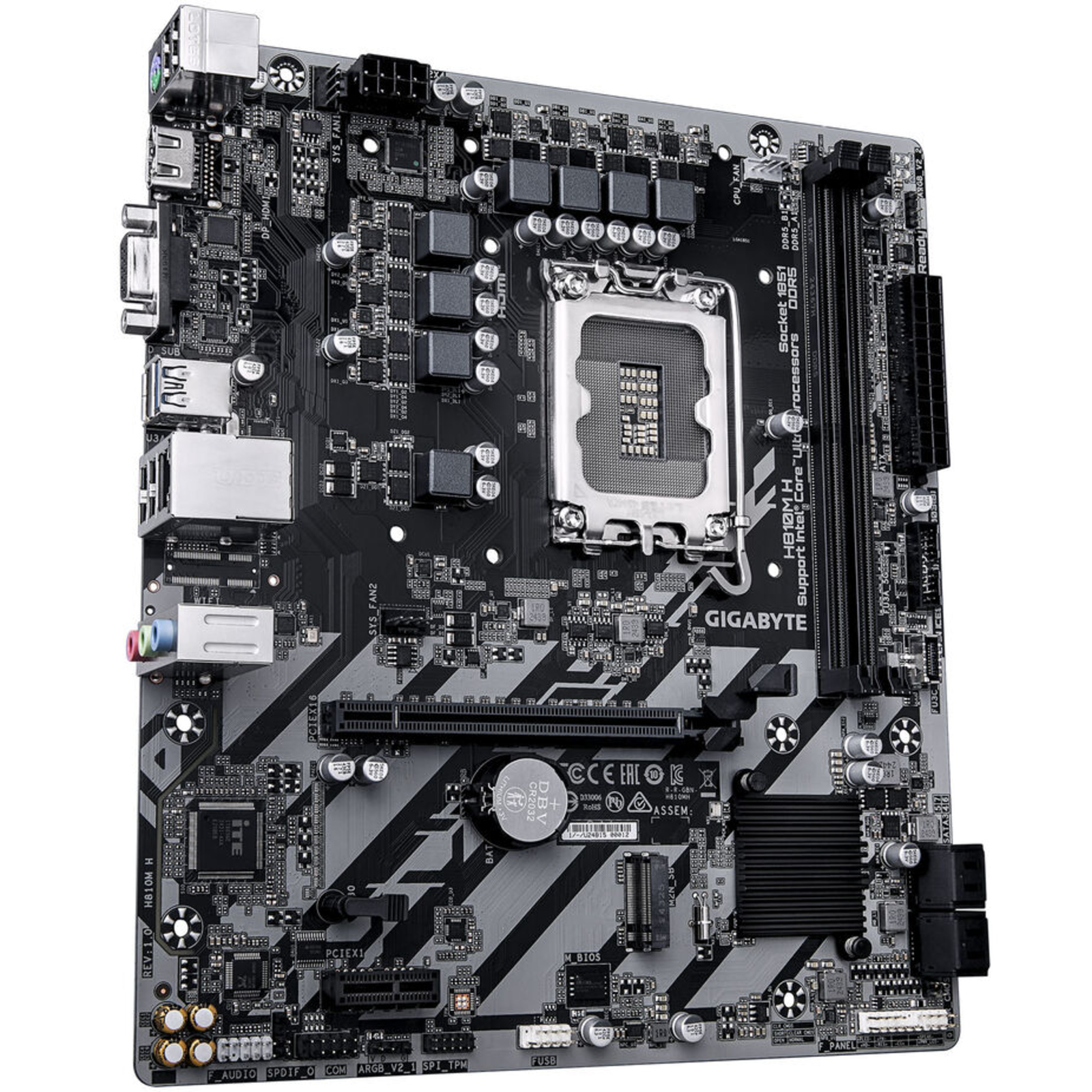

GIGABYTE H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 2
GIGABYTE H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 3
GIGABYTE H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1 – photo 4
Out of Stock / Please Enquire ETA
GIGABYTE

GIGABYTE H810M H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1

R2,688
incl. VAT: R3,091
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: GIGABYTE
  • Model: H810M H
  • EAN: 4719331869540
  • Product code: 499977
Please Inquire
R2,688 incl. VAT: R3,091
We will email you when the product is back in stock.

Key features

  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 4+1+2 phases VRM solution
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI

Key features

  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 4+1+2 phases VRM solution
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI
Tags: gigabyte motherboards , gigabyte motherboard

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Price History

Current price2,688 ZAR
2,8042,7102,61508-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Compatible processor series Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 5600,6400 MHz
Supported memory clock speed (max) 6400 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Storage controllers
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 5
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Serial port headers 1
RGB LED pin header Yes
Number of RGB LED pin headers 2
Rear panel I/O ports
USB 2.0 ports quantity 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
DVI-D ports quantity 0
PS/2 ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel H810
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Dark brown
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 54 mm
Package weight 860 g
Weight & dimensions
Width 244 mm
Depth 215 mm
Height 35 mm
Packaging content
Batteries included Yes
Screws included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight 860 g
Technical details
Warranty period 3 year(s)
