- Stock: In Stock
- Brand: UNI-T
- Model: UT15B MAX
- Weight: 0.98kg
- Dimensions: 22.00cm x 16.00cm x 7.00cm
- EAN: 6935750515259

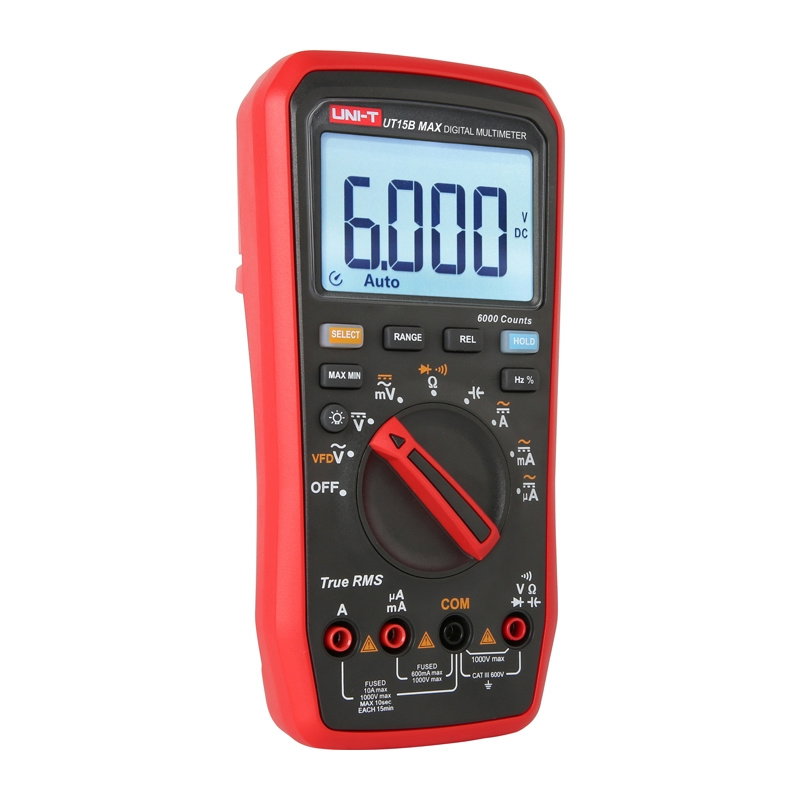

Uni-T True RMS UT15B MAX digital multimeter
The Uni-T UT15B MAX is the entry-level model in the series, combining high measurement precision with practical features useful in everyday work. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. An additional advantage is the VFD function, which enhances the multimeter’s utility when working with selected electrical circuits.
Convenient features and safe operation
The model features a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlighting improves readability, and automatic or manual range switching allows you to adapt the operation to the situation. Automatic shutdown and wake-up with any button also contribute to ease of use.
Safety and practical operation
The UT15B MAX is designed for safe and convenient operation. The device features visual and audible alarms, a wrong-lead connection alarm, and CAT III 600V overvoltage protection. It is an ideal solution for professionals seeking a precise multimeter for routine tasks where temperature measurement is not critical.
Included
- Digital multimeter
- Standard gold-plated test leads (2 pcs.)
- Test leads with fine tips (2 pcs.)
- 2 AA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15B MAX |
| Product type | True RMS digital multimeter |
| DC voltage range | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4% + 3) |
| AC voltage range | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5% + 5) |
| VFD range | 600.0 V ±(8%) |
| AC current range | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3) |
| DC current range | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3) |
| Resistance measurement range | 600.0 Ω – 60.00 MΩ ±(0.5% + 2) |
| Capacitance measurement range | 6.000 nF – 6000 µF ±(2.0% + 5) |
| Frequency range | 10 Hz – 10 MHz ±(0.1% + 3) |
| Duty cycle | 1% – 99.9% ±(1.0% + 4) |
| Temperature measurement | No |
| Maximum display reading | 6000 |
| Continuity test | Yes |
| Diode test | Yes |
| Data Hold | Yes |
| MAX/MIN mode | Yes |
| Relative mode | Yes |
| Backlight | Adjustable |
| Range selection | Automatic and manual |
| Auto power off | Yes |
| Wake-up with any button | Yes |
| Visual and audible alarm | Yes |
| Wrong-lead connection alarm | Yes |
| Measurement category | CAT III 600V |
| Power supply | 2 × 1.5 V AA batteries |
| Weight | 455 g |
| Dimensions | 182 × 91 × 45 mm |
| Color | Red and gray |
