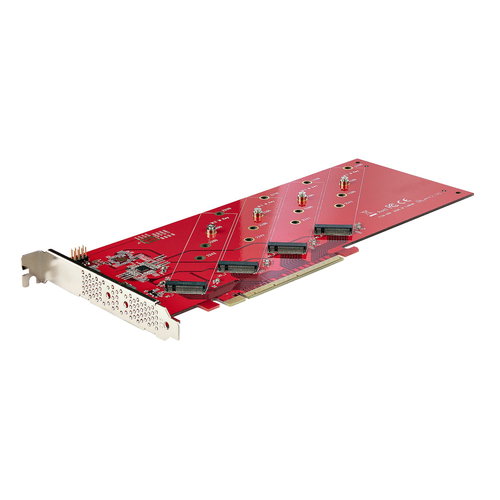

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible - TAA – photo 1
STARTECH

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible - TAA

R3,762
incl. VAT: R4,327
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: QUAD-M2-PCIE-CARD-B
  • Weight: 0.22 kg
  • Dimensions: 29 × 17 × 3 cm
  • EAN: 065030895606
  • Product code: 626826
Backordered goods Delivery in 7–10 working days

Available Options

R3,762 incl. VAT: R4,327

Key features

  • HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
  • WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
  • BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot / PCIe bifurcation is required / This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
  • SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD
  • VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket / The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling

Key features

  • HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
  • WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
  • BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot / PCIe bifurcation is required / This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
  • SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD
  • VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket / The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling
Tags: startech input devices , startech input device

Description

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

Access Four M.2 PCIe SSDs Simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

Price History

Price History

Current price3,992 ZAR
4,0093,9133,81708-2409-0409-1609-2710-0910-20
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface M.2
Expansion card standard PCIe 4.0
Number of M.2 (M) slots 4
Design
Internal Yes
Product colour Red
LED indicators Yes
Mean time between failures (MTBF) 4353192 h
Features
Data transfer rate (max) 7.8 Gbit/s
Plug and Play Yes
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 15 - 90%
Weight & dimensions
Width 290 mm
Depth 170 mm
Height 30 mm
Weight 150 g
Packaging data
Screws included Yes
Quick installation guide Yes
Package width 174 mm
Package depth 292 mm
Package height 33 mm
Package weight 150 g
Logistics data
Products per master (outer) case 30 pc(s)
Master (outer) case width 501 mm
Master (outer) case length 382 mm
Master (outer) case height 328 mm
