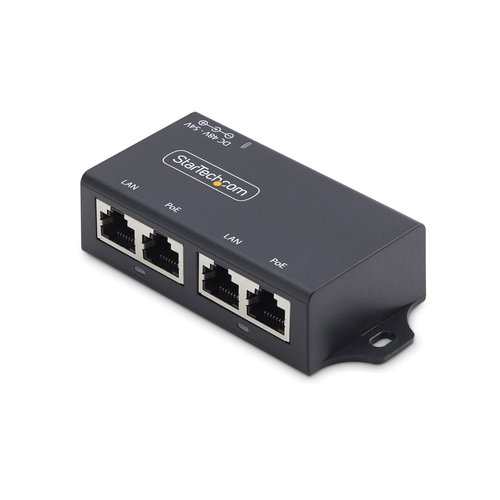

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet – photo 1
STARTECH

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet

R2,098
incl. VAT: R2,412
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: AF221CE-POE-INJECTOR
  • Weight: 0.36 kg
  • Dimensions: 19 × 12 × 7 cm
  • EAN: 065030911313
  • Product code: 630055
Backordered goods Delivery in 7–10 working days

Available Options

R2,098 incl. VAT: R2,412

Key features

  • TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
  • NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
  • HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
  • APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
  • TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch (82x25x46mm)

Key features

  • TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
  • NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
  • HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
  • APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
  • TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch (82x25x46mm)
Tags: startech converters , startech converter

Description

Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

Price History

Price History

Current price2,098 ZAR
2,1942,1412,08908-2409-0609-1910-0110-1410-27
Regular price

Specifications

Network
Ethernet interface type Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates 10,1000,100 Mbit/s
Cabling technology 10/100/1000
Power over Ethernet (PoE) Yes
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
Auto MDI/MDI-X Yes
Web-based management No
Chipset IC Plus - IP802AR
Features
Product colour Black
Housing material Plastic
Wall mountable Yes
Surge protection Yes
Maximum operating distance 100 m
LED indicators Yes
Jumbo frames support Yes
Jumbo frames 9000
Auto-negotiation Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 4
RJ-45 input ports 2
RJ-45 output ports 2
DC-in jack Yes
Power
Output power 30 W
AC adapter input voltage 100 - 240 V
Input current 1.5 A
AC adapter output voltage 52 V
Output current 1.25 A
Power consumption (max) 65 W
Total Power over Ethernet (PoE) budget 30 W
Surge protection voltage 2 kV
Power plug type Type M
Suitable for use in country/location Europe, United Kingdom
Certificates
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 70 °C
Weight & dimensions
Width 46 mm
Depth 102 mm
Height 25 mm
Weight 60 g
Packaging content
Quick installation guide Yes
Packaging data
Package width 207 mm
Package depth 144 mm
Package height 38 mm
Package weight 105 g
Logistics data
Master (outer) case width 440 mm
Master (outer) case length 420 mm
Master (outer) case height 320 mm
Products per master (outer) case 40 pc(s)
