StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive, TAA-Compliant – photo 1
STARTECH

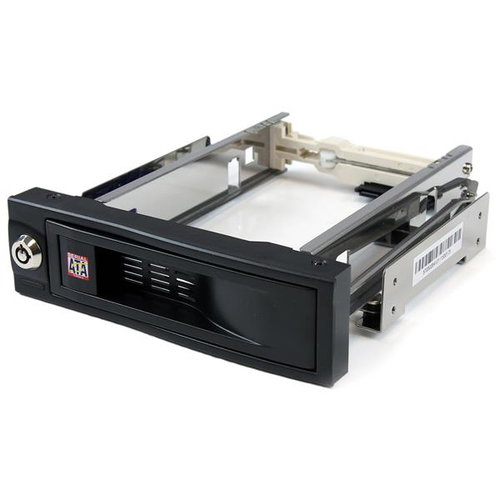

StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive, TAA-Compliant

R964
incl. VAT: R1,109
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: HSB100SATBK
  • Weight: 0.39 kg
  • Dimensions: 21 × 16 × 5 cm
  • EAN: 065030821360
  • Product code: 634041
Backordered goods Delivery in 7–10 working days

Available Options

R964 incl. VAT: R1,109

Key features

  • Holds a 3.5" SATA drive in a front accessible 5.25" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Lockable drive bay
  • Internal rubber shock absorbers
  • 50,000+ insertion rating
  • Power and Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 3.5" form factor SATA hard drives
  • Plug-and-Play and Hot-Swap compatible

Key features

  • Holds a 3.5" SATA drive in a front accessible 5.25" bay
  • Trayless design: drives are not mounted into separate trays/enclosures
  • Lockable drive bay
  • Internal rubber shock absorbers
  • 50,000+ insertion rating
  • Power and Activity LED indicator
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 3.5" form factor SATA hard drives
  • Plug-and-Play and Hot-Swap compatible

Description

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.

Price History

Price History

Current price1,010 ZAR
1,01399798108-2409-0409-1609-2710-0910-20
Regular price

Specifications

Features
Size (imperial) 13.3 cm (5.25")
Type Bezel panel
Product colour Black
Number of HDDs supported 1
HDD size 3.5"
HDD interface Serial ATA, Serial ATA II, Serial ATA III
Material Aluminium, PU plastic
Number of cycles 50000
LED indicators Activity, Power
Key lock Yes
Certification CE, FCC, REACH
Weight & dimensions
Width 149 mm
Depth 184 mm
Height 42 mm
Weight 261 g
Packaging data
Package width 209 mm
Package depth 160 mm
Package height 55 mm
Package weight 366 g
Packaging content
Screws included Yes
Manual Yes
Number of lock keys included 2 pc(s)
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 85%
Storage relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case width 443 mm
Master (outer) case length 341 mm
Master (outer) case height 295 mm
Harmonized System (HS) code 84733080
