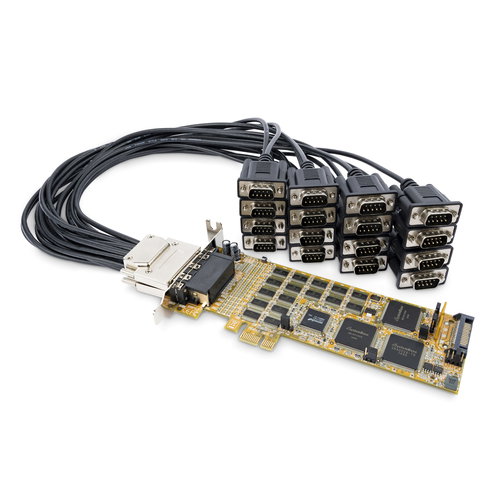

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA – photo 1
STARTECH

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA

R8,576
incl. VAT: R9,863
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: PEX16S550LP
  • Weight: 1.01 kg
  • Dimensions: 29 × 19 × 7 cm
  • EAN: 065030868228
  • Product code: 634839
Backordered goods Delivery in 7–10 working days

Available Options

R8,576 incl. VAT: R9,863

Key features

  • 16 DB9 RS232 ports from a single PCIe slot
  • Enables high-speed serial communication with data transfer rates up to 921.6 Kbps
  • Low Profile bracket installed and Standard (Full) bracket included
  • Fully compliant with PCI Express 1.0a/1.1 specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • +/-15kV ESD protection
  • Selectable power output (5V or 12V ) on pin 9 for the serial port
  • Data Bits: 5, 6, 7, or 8-bit characters
  • Hex nuts included for optional screw or nut DB9 interface

Key features

  • 16 DB9 RS232 ports from a single PCIe slot
  • Enables high-speed serial communication with data transfer rates up to 921.6 Kbps
  • Low Profile bracket installed and Standard (Full) bracket included
  • Fully compliant with PCI Express 1.0a/1.1 specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • +/-15kV ESD protection
  • Selectable power output (5V or 12V ) on pin 9 for the serial port
  • Data Bits: 5, 6, 7, or 8-bit characters
  • Hex nuts included for optional screw or nut DB9 interface
Tags: startech computer components , startech computer component

Description

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.

Add 16 RS232 ports through one PCIe slot

You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.

The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

High-speed serial communication

The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.

Easy installation

The serial card is easy to install and configure, and compatible with Windows® only. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket (installed), and a full-profile bracket (included in the package), making it compatible with both low profile and full profile PC chassis slots.

Price History

Price History

Current price9,208 ZAR
9,2509,0138,77608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface Serial
Expansion card form factor Low-profile
Expansion card standard PCIe 1.1
Serial ports quantity 16
Serial interface type RS-232
Internal SATA ports quantity 1
Design
Internal Yes
Product colour Yellow
Features
Chipset ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058
Baud rate 921.6 Kbit/s
Data bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 75 °C
Operating relative humidity (H-H) 10 - 90%
System requirements
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates CE, RoHS
Weight & dimensions
Width 68 mm
Depth 168 mm
Height 22 mm
Weight 70 g
Packaging data
Cables included RS-232
Mounting brackets included Yes
Drivers included Yes
Quick installation guide Yes
Package width 194 mm
Package depth 294 mm
Package height 70 mm
Package weight 1.2 kg
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 14 pc(s)
Master (outer) case width 396 mm
Master (outer) case length 520 mm
Master (outer) case height 324 mm
Other features
Electrostatic Discharge (ESD) protection 15 kV
