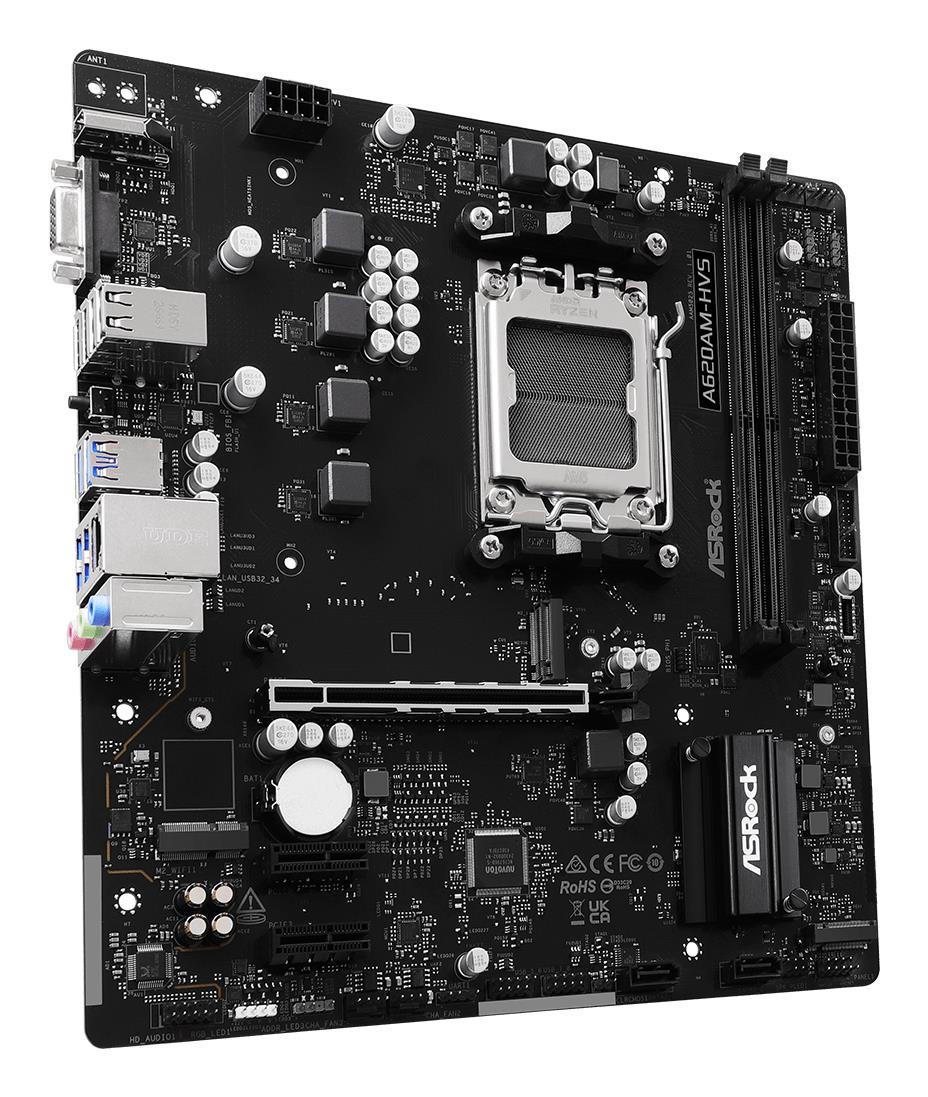

Mainboard ASROCK AMD A620A micro ATX RAM DDR5-SDRAM 2xSlots A620AM-HVS

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Fan-Tastic Tuning
ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Dr.MOS Power Design, 2oz PCB
• 2 x DDR5 DIMMs, Supports Dual Channel, up to 6800+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI, 1 D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA3), 2 SATA3
• 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek Gigabit LAN
• Supports BIOS Flashback

Summary: Asrock A620AM-HVS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A | Vendor Homepage: https://asrock.com/MB/AMD/A620AM-HVS/index.asp | Motherboard chipset: AMD A620A | Audio chip: Realtek ALC897 | Product colour: Black | Component for: PC | Motherboard form factor: micro ATX | Audio output channels: 7.1 | Motherboard chipset family: AMD | Windows operating systems supported: Windows 10 x64/Windows 11 x64 | Processor manufacturer: AMD | Processor socket: Socket AM5 | Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported processor sockets: Socket AM5 | Supported memory types: DDR5-SDRAM | Number of memory slots: 2 | Memory slots type: DIMM | Memory channels: Dual-channel | ECC сompatibility: Non-ECC | Supported memory clock speed (max): 6800 | Maximum internal memory: 128 | Unbuffered memory: Yes | Supported storage drive types: HDD & SSD | Supported storage drive interfaces: PCI Express 3.0,PCI Express 4.0,SATA III | Number of storage drives supported: 4 | RAID support: Yes | RAID levels: 0/1/10 | Parallel processing technology support: Not supported | Maximum resolution: 3840 x 2160 | HDCP: Yes | HDCP version: 2.3 | High Dynamic Range (HDR) supported: Yes | USB 2.0 connectors: 2 | USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 | Number of SATA III connectors: 2 | Front panel audio connector: Yes | ATX Power connector (24-pin): Yes | CPU fan connector: Yes | Number of CPU fan connectors: 1 | Number of chassis fan connectors: 3 | 12V power connector: Yes | RGB LED pin header: Yes | Number of RGB LED pin headers: 1 | USB 2.0 ports quantity: 4 | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 | Ethernet LAN (RJ-45) ports: 1 | VGA (D-Sub) ports quantity: 1 | HDMI ports quantity: 1 | HDMI version: 2.1 | Headphone outputs: 3 | Line-in: Yes | Microphone in: Yes | USB connector type: USB Type-A | Ethernet LAN: Yes | Ethernet interface type: Fast Ethernet/Gigabit Ethernet | LAN controller: Realtek RTL8111H | Wi-Fi: No | PCI Express x1 (Gen 3.x) slots: 2 | PCI Express x16 (Gen 4.x) slots: 1 | Number of M.2 (M) slots: 1 | 1st M.2 largest key size: 2280 | 1st M.2 highest PCI Express generation: 4.0 | BIOS type: UEFI AMI | BIOS memory size: 256 | Width: 244 | Depth: 229 | Cables included: SATA | Screws included: Yes | Compliance certificates: CE/Federal Communications Commission (FCC) | Unit Calculated Weight: 1.111 | Product Net Weight: 0.7 | Unit Calculated Volume: 0.005632 | Units per Shipping Box: 10 | Unit Width: 26.5 | Units per Pallet: 0 | Shipping Box Height: 32 | Unit Depth: 30 | Unit Height: 6 | Name: MB AMD A620A SAM5 MATX/A620AM-HVS ASROCK | Model: A620AM-HVS
