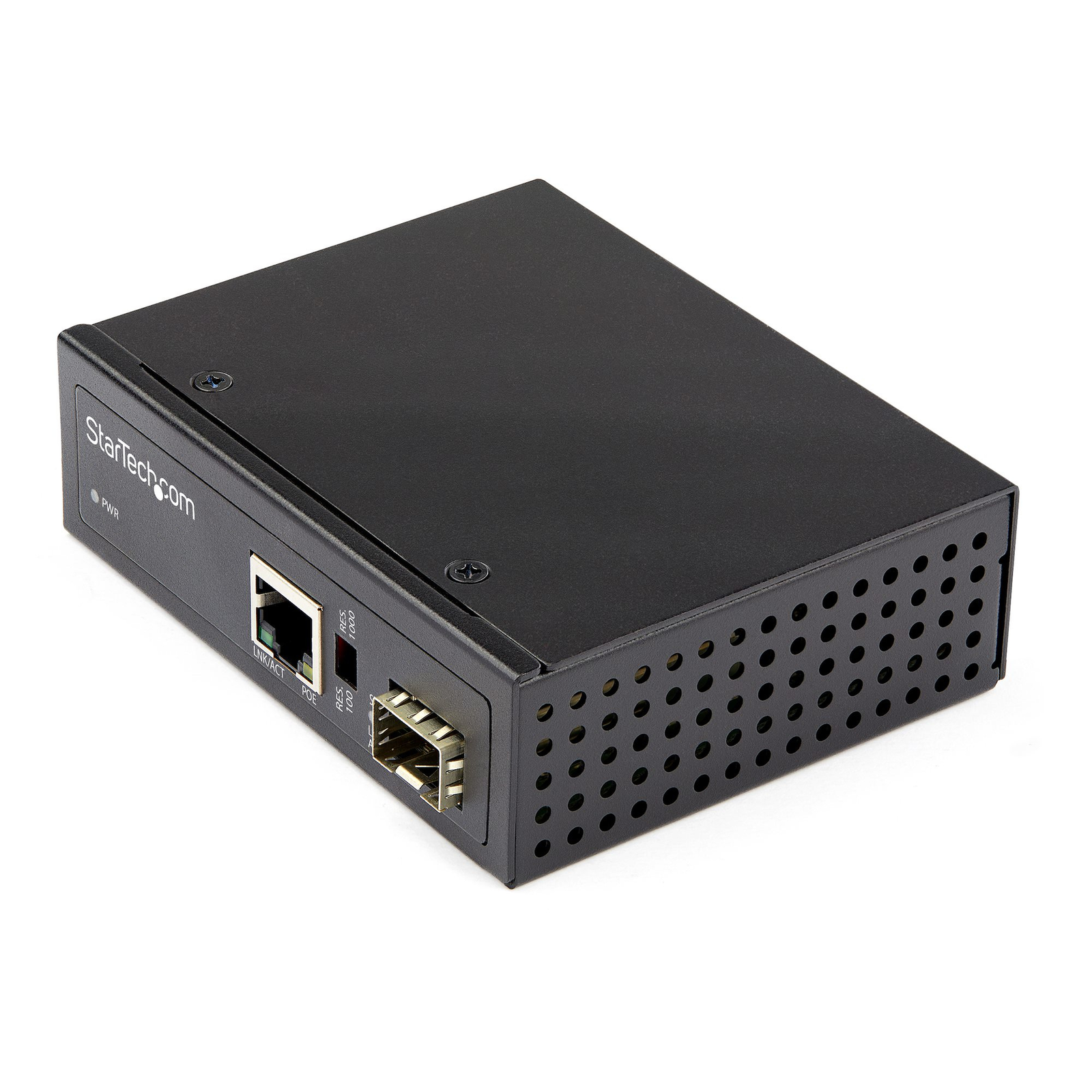

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C - TAA – photo 1
STARTECH.COM

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C - TAA

R5,911
incl. VAT: R6,798
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: IMC1GSFP60W
  • Weight: 0.37 kg
  • Dimensions: 22 × 17 × 7 cm
  • EAN: 065030889636
  • Product code: 815747
Backordered goods Delivery in 7–10 working days

Available Options

R5,911 incl. VAT: R6,798

Key features

  • EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
  • TECH SPECS: 1 Gbps / 1 x Open SFP (MSA Compliant) / 1x RJ45 / 48V-56VDC / IEEE 802.3af / IEEE 802.3at (60W) / 10/100/1000Mbps / LFP / 16K Jumbo Frames / DIN or Wall Mount Hardware Included / 2 yr warr
  • ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing / Hardened operating temp -40C to 75C
  • OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
  • FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Key features

  • EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
  • TECH SPECS: 1 Gbps / 1 x Open SFP (MSA Compliant) / 1x RJ45 / 48V-56VDC / IEEE 802.3af / IEEE 802.3at (60W) / 10/100/1000Mbps / LFP / 16K Jumbo Frames / DIN or Wall Mount Hardware Included / 2 yr warr
  • ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing / Hardened operating temp -40C to 75C
  • OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types
  • FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Tags: startech.com audio & video cable adapters & couplers , startech.com audio & video cable adapters & coupler

Description

Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.

Designed for Harsh Environments

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

Up to 60 Watts of Power for Connected Devices

60 watts of available support a wide range of PD devices such as:

• Pan-and-Tilt Cameras
• Lighting
• Cameras
• Sensors
• WiFi Access Points

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Dual Power Inputs

Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Price History

Price History

Current price5,911 ZAR
5,9325,8045,67509-0209-1209-2310-0310-1410-24
Regular price

Specifications

Network
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Jumbo frames support Yes
Jumbo frames 16000
Flow control support Yes
Auto MDI/MDI-X Yes
Duplex system Full
Performance
Maximum transfer distance 100 m
Fiber mode structure Multi-mode, Single-mode
Buffer size 512 KB
Mean time between failures (MTBF) 500000 h
Features
Internal No
Product colour Black
Housing material Aluminium
International Protection (IP) code IP30
DIN rail mounting Yes
Ports & interfaces
Fiber optic connector SFP
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Power
Input voltage 48 - 56 V
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 60 W
Power plug type Type N
Weight & dimensions
Width 81.5 mm
Depth 104 mm
Height 32 mm
Weight 153 g
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Quick installation guide Yes
Packaging data
Package width 167 mm
Package depth 213 mm
Package height 67 mm
Package volume 395 cm³
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 368 mm
Master (outer) case length 372 mm
Master (outer) case height 250 mm
Products per master (outer) case 10 pc(s)
Other features
Full duplex Yes
