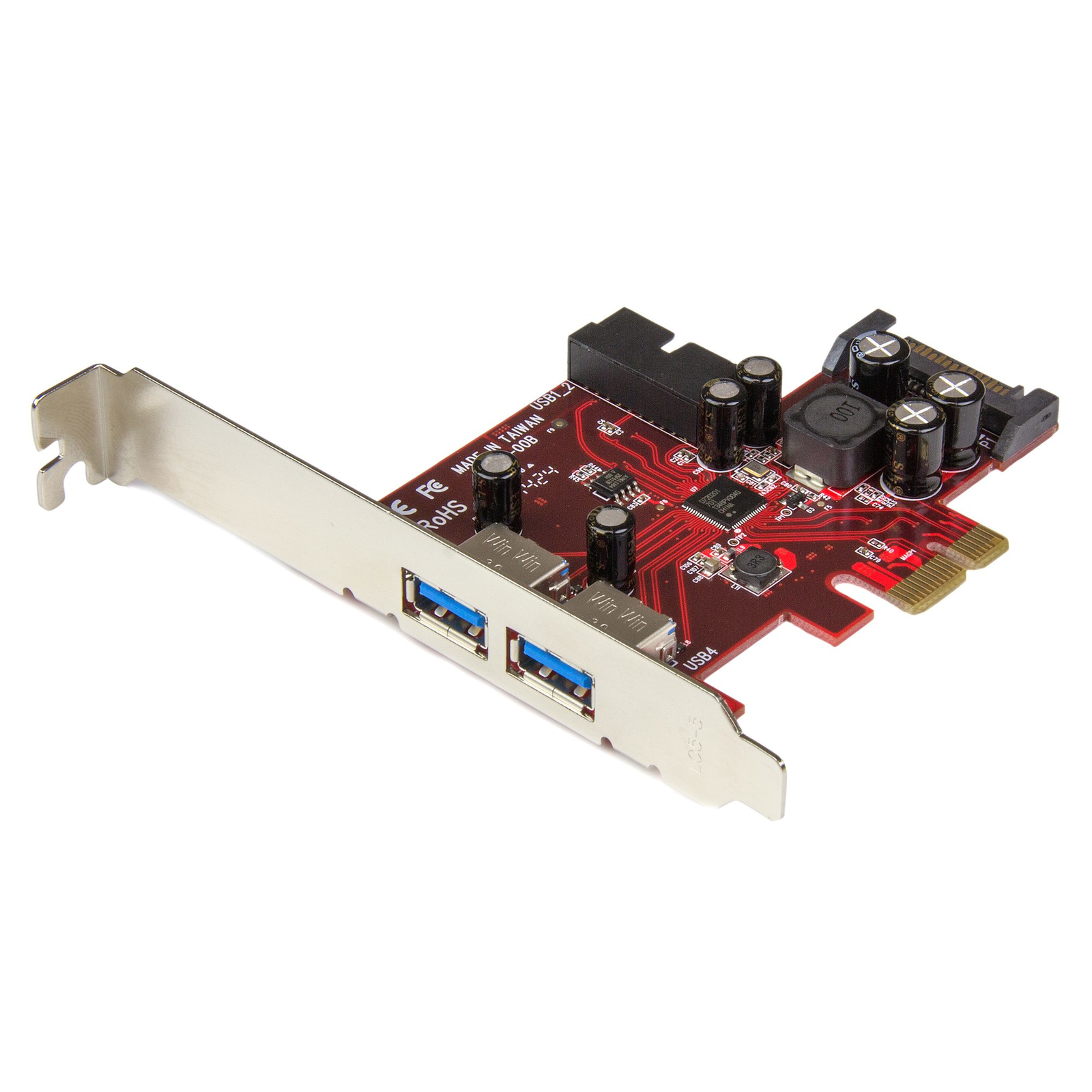

StarTech.com 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA – photo 1
STARTECH.COM

StarTech.com 4 Port PCI Express USB 3.0 Card - 5Gbps - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers - TAA

R1,703
incl. VAT: R1,959
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PEXUSB3S2EI
  • Weight: 0.14 kg
  • Dimensions: 17 × 15 × 3 cm
  • EAN: 065030860338
  • Product code: 1055344
Backordered goods Delivery in 7–10 working days

Available Options

R1,703 incl. VAT: R1,959

Key features

  • Flexibility to connect external and internal USB 3.2 Gen 1 devices and supports UASP
  • Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
  • Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
  • Transfer large files at lightning speed, with throughput support up to 5 Gbps
  • Optional SATA power connector provides up to 900mA per port for high-power USB devices
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
  • Configured with full-profile bracket, half-height bracket included

Key features

  • Flexibility to connect external and internal USB 3.2 Gen 1 devices and supports UASP
  • Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
  • Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
  • Transfer large files at lightning speed, with throughput support up to 5 Gbps
  • Optional SATA power connector provides up to 900mA per port for high-power USB devices
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
  • Configured with full-profile bracket, half-height bracket included
Tags: startech.com usb network cards , startech.com usb network card

Description

Add front or rear panel USB 3.0 (USB 3.2 Gen 1) ports to your computer case using USB 3.0 (USB 3.2 Gen 1) motherboard-style headers

This PCI Express USB 3.2 Gen 1 card offers a cost-effective upgrade that lets you add four USB 3.2 Gen 1 ports to your computer through a PCIe slot. It offers two external ports plus two internal (IDC) USB 3.2 Gen 1 headers to help adapt your desktop or server to support a variety of USB 3.2 Gen 1 devices.

Flexible and convenient port design

With extra motherboard-style USB 3.2 Gen 1 headers you have the flexibility to add more internal USB 3.2 Gen 1 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.

For added convenience, the card integrates two external USB 3.2 Gen 1 ports, so you can plug in more devices such as external hard drives or printers.

Simple installation and supports older devices

The USB 3.2 Gen 1 card is easy to install and requires no additional drivers or software in natively supported Windows® 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.

Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.

Effective USB 3.2 Gen 1 performance enhanced by UASP

This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure.

The PEXUSB3S2EI is ruggedly built for reliable USB 3.2 Gen 1 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

Price History

Price History

Current price1,703 ZAR
1,7281,5781,42809-2309-3010-0710-1510-2210-29
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface SATA, USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor Full-height / Low-profile
Expansion card standard PCI 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Internal SATA ports quantity 1
Design
Internal Yes
Product colour Metallic, Red
Maximum cable length 3 m
Mean time between failures (MTBF) 1920042 h
Features
Chipset Renesas / NEC - µPD720201
Data transfer rate (max) 5 Gbit/s
UASP support Yes
Operational conditions
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 20 - 80%
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates CE, RoHS
Weight & dimensions
Width 18 mm
Depth 92 mm
Height 120 mm
Weight 53 g
Packaging data
Mounting brackets included Yes
Drivers included Yes
Manual Yes
Package width 143 mm
Package depth 175 mm
Package height 33 mm
Package weight 143 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 60 pc(s)
Master (outer) case width 382 mm
Master (outer) case length 500 mm
Master (outer) case height 318 mm
Other features
Maximum operating distance 3 m
