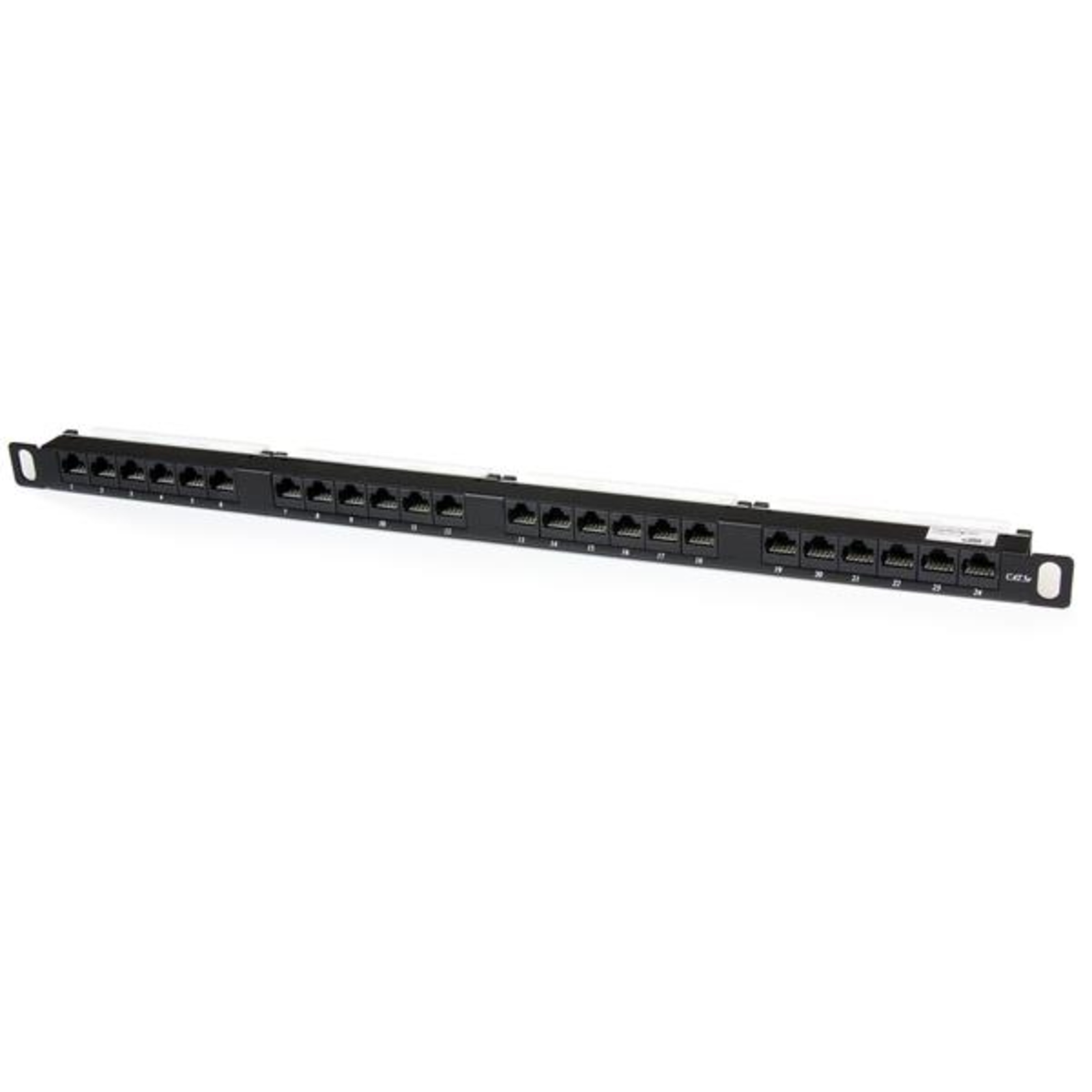

StarTech.com 24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel – photo 1
STARTECH.COM

StarTech.com 24 Port 0.5U Cat5e Patch Panel - RJ45 Ethernet Rackmount Cat 5e 110 Patch Panel

R1,358
incl. VAT: R1,562
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PANELHU24
  • EAN: 065030847988
  • Product code: 1054815
Backordered goods Delivery in 7–10 working days

Available Options

R1,358 incl. VAT: R1,562

Key features

  • High impact plastic housing, flame retardant UL 94V-0
  • Meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 specifications
  • Dual-type IDC headers, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool
  • Color coded for both T568A and T568B installations

Key features

  • High impact plastic housing, flame retardant UL 94V-0
  • Meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 specifications
  • Dual-type IDC headers, situated 180° relative to the RJ45 ports, terminated using 110-type punch tool
  • Color coded for both T568A and T568B installations
Tags: startech.com usb network cards , startech.com usb network card

Description

Organize up to 24 Cat5e patch cables using only 0.5U of rack space

The PANELHU24 Rack Mount Cat5e patch panel condenses 24 ports into a 0.5U panel, making it an ideal solution for smaller installations.
Color coded for both T568A and T568B wiring, this network patch panel provides the perfect solution for any voice or LAN application and offers dual type IDC termination. For convenience, the port numbers are clearly marked on the front of each RJ45 port, offering a quick and easy way to identify cable runs.
Durably constructed of only top quality materials, this 24-port Ethernet patch panel is backed by StarTech.com’s 2 year warranty.

Price History

Price History

Current price1,358 ZAR
1,4261,3581,29009-2309-3010-0710-1510-2210-29
Regular price

Specifications

Network
Ports quantity 24
Connector(s) RJ-45
Cable types supported Cat5e
Design
Mounting Rack mounting
Rack capacity 0.5U
Product colour Black
Weight & dimensions
Width 482 mm
Weight 400 g
Packaging data
Package width 59 mm
Package depth 496 mm
Package height 45 mm
Package weight 494 g
Logistics data
Harmonized System (HS) code 85371098
Master (outer) case width 250 mm
Master (outer) case length 514 mm
Master (outer) case height 258 mm
Products per master (outer) case 20 pc(s)
