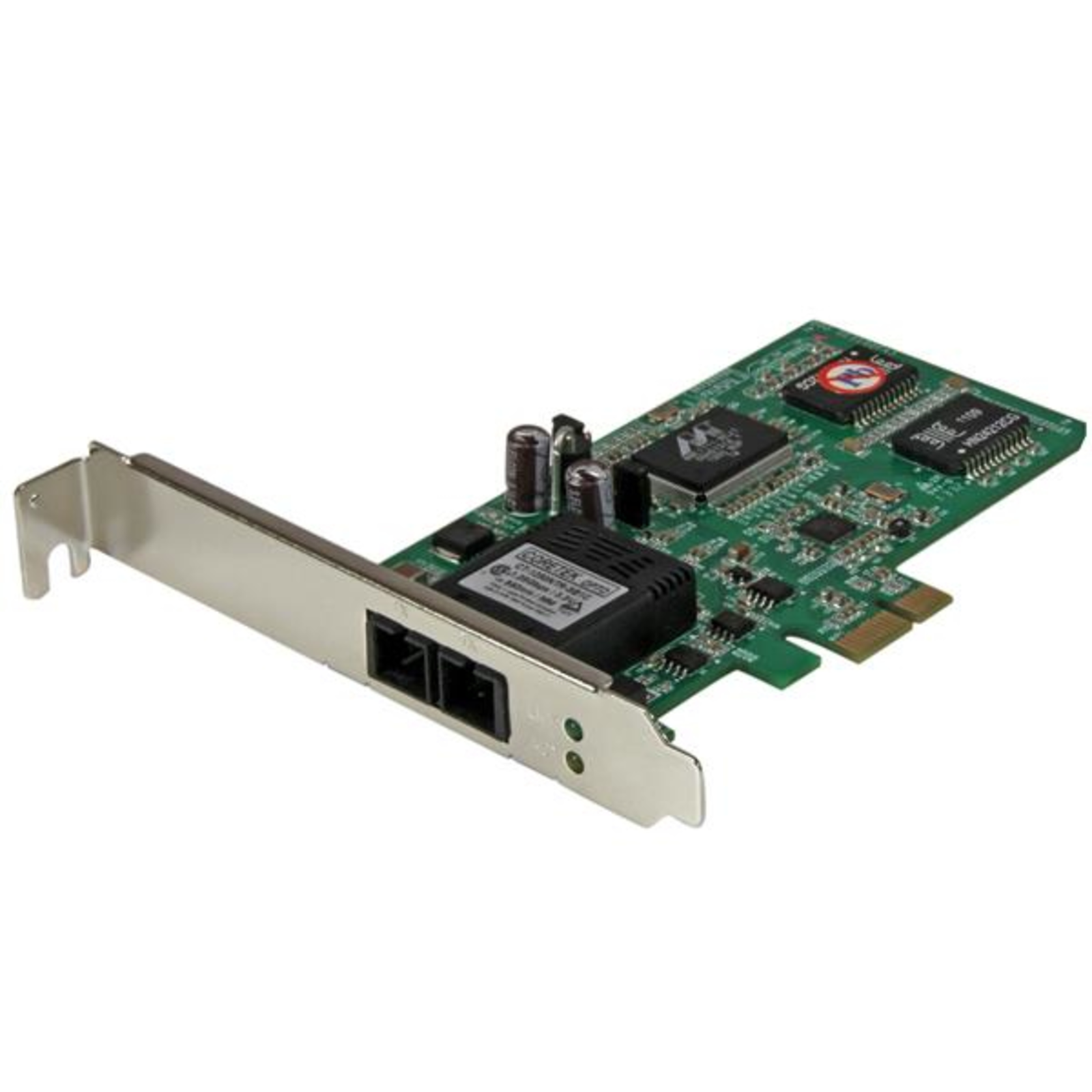

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - TAA – photo 1
STARTECH.COM

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - TAA

R4,901
incl. VAT: R5,636
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PEX1000MMSC2
  • Weight: 0.21 kg
  • Dimensions: 21 × 17 × 5 cm
  • EAN: 065030857703
  • Product code: 1055307
Backordered goods Delivery in 7–10 working days

Available Options

R4,901 incl. VAT: R5,636

Key features

  • Maximum fiber distance of 550m
  • Supports Full/Half-duplex Auto-Negotiation
  • Includes low-profile/half-height installation bracket
  • Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
  • Supports RFC 1157 SNMP v1 for remote management
  • Jumbo Frame Support
  • Supports PCI Message Signaled Interrupt (MSI)
  • Preboot Execution Environment (PXE) 2.1
  • Supports Wake-on-LAN remote wake-up
  • Advanced Configuration Power Management Interface (ACPI) 2.0

Key features

  • Maximum fiber distance of 550m
  • Supports Full/Half-duplex Auto-Negotiation
  • Includes low-profile/half-height installation bracket
  • Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
  • Supports RFC 1157 SNMP v1 for remote management
  • Jumbo Frame Support
  • Supports PCI Message Signaled Interrupt (MSI)
  • Preboot Execution Environment (PXE) 2.1
  • Supports Wake-on-LAN remote wake-up
  • Advanced Configuration Power Management Interface (ACPI) 2.0
Tags: startech.com networking , startech.com networkin

Description

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Price History

Price History

Current price4,901 ZAR
4,9864,4753,96409-2309-2910-0510-1210-1810-24
Regular price

Specifications

Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet / Fiber
Fiber optic connector SC
Network
Maximum data transfer rate 2000 Mbit/s
Networking standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology 1000BASE‑SX
Wake-on-LAN ready Yes
Full duplex Yes
Jumbo frames support Yes
Maximum operating distance 550 m
LAN controller Realtek RTL8168E
Design
Internal Yes
Component for PC
Chipset RTL8168E
LED indicators Activity, Link
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 118 mm
Depth 120 mm
Height 18 mm
Weight 66 g
Packaging data
Package width 215 mm
Package depth 175 mm
Package height 51 mm
Package weight 208 g
Packaging content
Manual Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 550 mm
Master (outer) case length 595 mm
Master (outer) case height 367 mm
Products per master (outer) case 50 pc(s)
Other features
Buffer size 48 KB
Power supply 3.2 W
