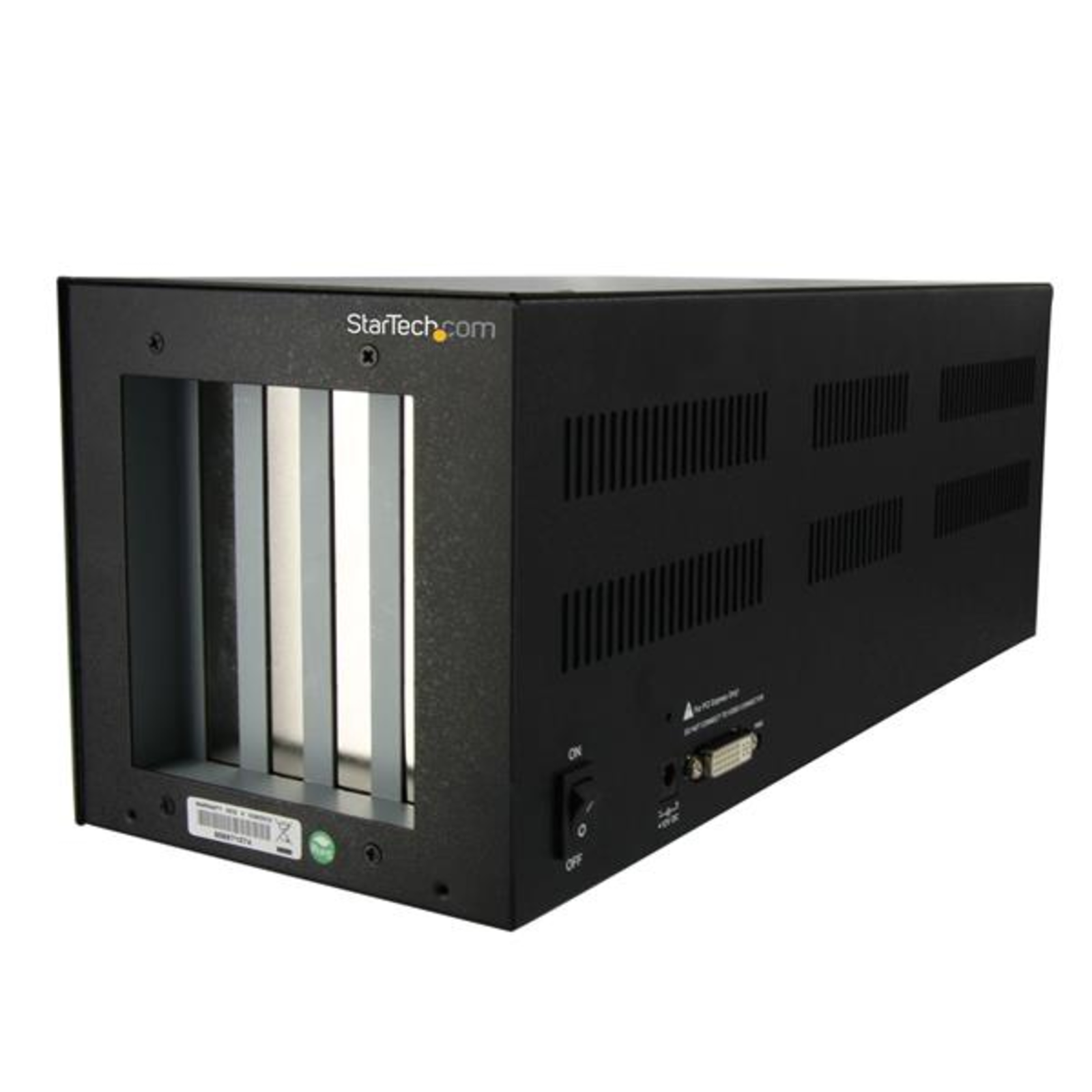

StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA – photo 1
STARTECH.COM

StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA

R10,873
incl. VAT: R12,504
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH.COM
  • Model: PEX2PCIE4L
  • EAN: 065030835305
  • Product code: 1055319
Backordered goods Delivery in 7–10 working days

Available Options

R10,873 incl. VAT: R12,504

Key features

  • Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
  • Self-powered PCI/PCIe expansion system with an on/off button
  • Rugged steel construction satisfies demands of industrial and server environments
  • Supports both 5V and 3.3V & 5V add-in PCI cards
  • Complies with PCI 2.3 and PCIe 1.1 specifications
  • Supports advance error reporting including ECRC support
  • Support add-in cards with extended length (35cm)

Key features

  • Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
  • Self-powered PCI/PCIe expansion system with an on/off button
  • Rugged steel construction satisfies demands of industrial and server environments
  • Supports both 5V and 3.3V & 5V add-in PCI cards
  • Complies with PCI 2.3 and PCIe 1.1 specifications
  • Supports advance error reporting including ECRC support
  • Support add-in cards with extended length (35cm)
Tags: startech.com electronics accessories , startech.com electronics accessorie

Description

Add two PCI and two PCI Express expansion card slots to your desktop computer

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Price History

Price History

Current price10,873 ZAR
11,41710,87310,32909-2309-3010-0710-1310-2010-27
Regular price

Specifications

Design
Certification ROHS, CE, FCC
Power
Output voltage 12 V
Output current 3 A
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 137 mm
Depth 382 mm
Height 143 mm
Weight 2 kg
Packaging data
Cables included AC, DVI
Manual Yes
Package width 443 mm
Package depth 209 mm
Package height 248 mm
Package weight 2.1 kg
Logistics data
Harmonized System (HS) code 84719000
Products per master (outer) case 2 pc(s)
Master (outer) case width 524 mm
Master (outer) case length 436 mm
Master (outer) case height 283 mm
Other features
Data transfer rate 250 Mbit/s
Ports quantity 4
Cable length 0.9 m
Compatible operating systems Win 2000/XP/2003/ Vista Linux Mac OS X
Power requirements 115 - 230 AC
