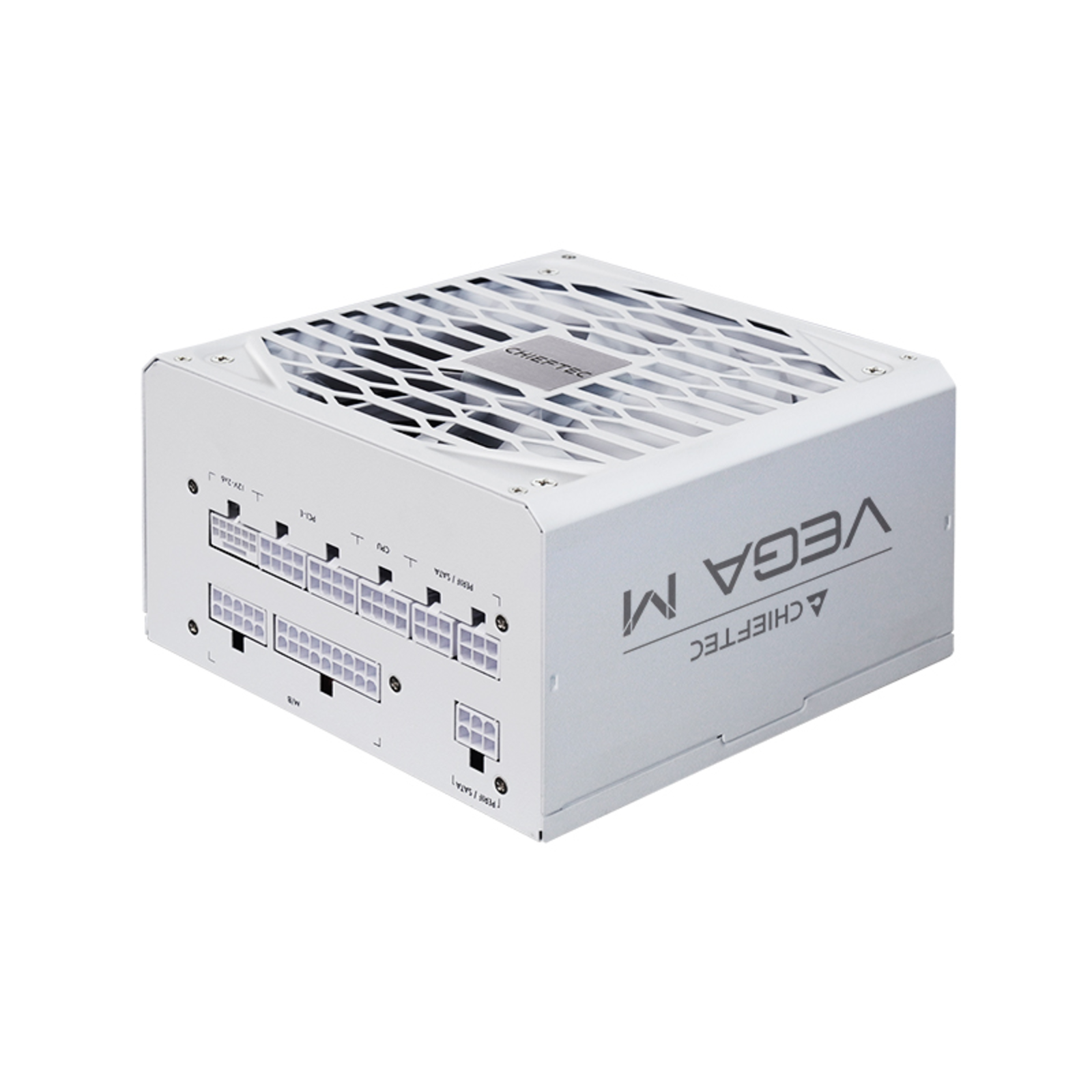

Chieftec Vega PPG-1000-CW power supply unit 1000 W 24-pin ATX ATX White – photo 1
CHIEFTEC

Chieftec Vega PPG-1000-CW power supply unit 1000 W 24-pin ATX ATX White

R3,315
incl. VAT: R3,812
  • Stock: Backordered - ETA 7-10 Days
  • Brand: CHIEFTEC
  • Model: PPG-1000-CW
  • Weight: 2.8 kg
  • Dimensions: 22 × 29 × 11 cm
  • EAN: 753263079121
  • Product code: 1056011
Backordered goods Delivery in 7–10 working days

Available Options

R3,315 incl. VAT: R3,812

Key features

  • 1000 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Gold
  • Active 13.5 cm
  • White

Key features

  • 1000 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Gold
  • Active 13.5 cm
  • White
Tags: chieftec power adapters & chargers , chieftec power adapters & charger

Price History

Price History

Current price3,315 ZAR
3,4813,3153,14909-2309-2910-0610-1210-1910-25
Regular price

Specifications

Power
Total power 1000 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 12 A
Combined power (+3.3V) 100 W
Combined power (+12V) 1000 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 83.33 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage
Ports & interfaces
Motherboard power connector 24-pin ATX
Peripheral (Molex) power connectors (4-pin) 3
Motherboard power cable length 60 cm
Number of SATA power connectors 6
SATA power cable length 150,400 mm
Peripheral (Molex) power cable length 150,400 mm
EPS power connector (8-pin) Yes
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
PCI Express power connectors (12+4 pin) 1
PCI Express power connectors (12+4 pin) cable length 600 mm
PCI Express power cable length 60 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 65 cm
ATX Power connector (24-pin) Yes
PCI Express connector Yes
Number of EPS connectors 2
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.1
Bearing technology FDB
Design
Product colour White
Cooling type Active
Fan diameter 13.5 cm
Illumination No
Certificates
Certification 80PLUS Gold
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 85 mm
