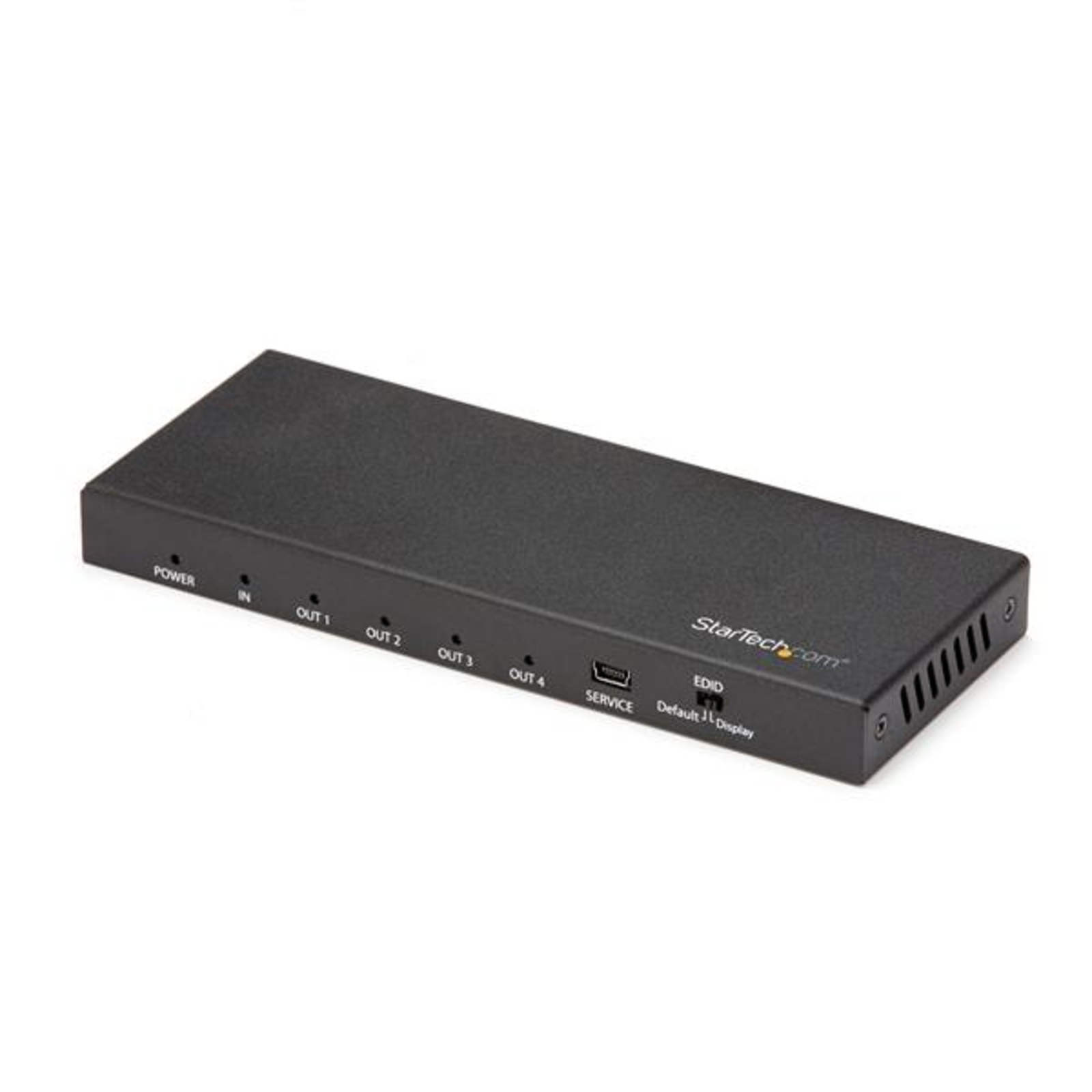

StarTech.com 4 Port HDMI Splitter 4K 60Hz HDMI 4x HDMI 3840 X 2160 Pixels Black 4K Ultra HD – photo 1
STARTECH.COM

StarTech.com 4 Port HDMI Splitter 4K 60Hz HDMI 4x HDMI 3840 X 2160 Pixels Black 4K Ultra HD

R2,480
incl. VAT: R2,852
  • Stock: Backordered - delivers in 10-15 days
  • Brand: STARTECH.COM
  • Model: ST124HD202
  • Weight: 0.54 kg
  • Dimensions: 21 × 15 × 7 cm
  • EAN: 065030880398
  • Product code: 1068347
Backordered goods Delivery in 10–15 working days

Available Options

R2,480 incl. VAT: R2,852
SavePDF

Key features

  • 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
  • EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
  • AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
  • LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
  • EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible

Key features

  • 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
  • EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
  • AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
  • LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
  • EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
Tags: startech.com kvm switches , startech.com kvm switche

Description

1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Price History

Price History

Current price2,480 ZAR
2,6462,5552,46509-2309-3010-0710-1510-2210-29
Regular price

Specifications

Ports & interfaces
Video ports quantity 4
Video port type HDMI
Video out 4x HDMI
HDMI version 2
Features
Maximum resolution 3840 x 2160 pixels
Product colour Black
Full HD Yes
HD type 4K Ultra HD
Maximum refresh rate 60 Hz
HDCP Yes
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Power LED Yes
Plug and Play Yes
Supported video modes 720p, 1080p
LED indicators Yes
Certification CE, FCC, REACH
Power
AC input voltage 100 - 240 V
Input current 1 A
Output voltage 5 V
Output current 0.2 A
Power consumption (typical) 5 W
Weight & dimensions
Width 64 mm
Depth 165 mm
Height 65 mm
Weight 506 g
Packaging data
Package width 151 mm
Package depth 216 mm
Package height 68 mm
Packaging content
User guide Yes
Included power plug types AU, EU, NA, UK
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 90%
Technical details
Maximum cable length 5 m
Supported audio channels 7.1
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 453 mm
Master (outer) case length 360 mm
Master (outer) case height 329 mm
Products per master (outer) case 20 pc(s)
