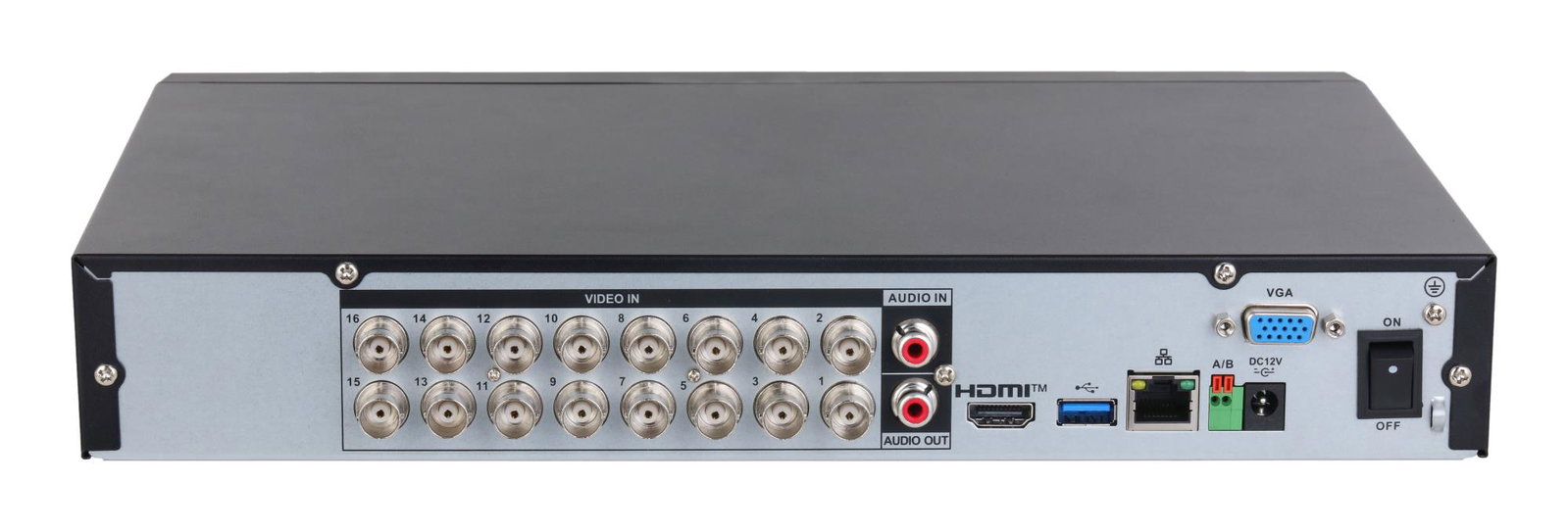

DVR 16CH HDCVI PENTABRID/XVR5116H-4KL-I3/T DAHUA

• 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
• 8-channel AcuPick for analog channels which improves the efficiency of target retrieval
• 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
• 4-channel face recognition for analog channels which supports face comparison
• 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
• 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps
• Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
• Smart H.265+ and H.265 dual-stream video compression

Summary: Dahua Technology XVR5116H-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB | Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/4K-Value5MP-Series/XVR5116H-4KL-I3/T | Video input channels: 16 | BNC input ports: 16 | HDMI ports quantity: 1 | VGA (D-Sub) output ports: 1 | USB 2.0 ports quantity: 1 | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1 | Video RCA outputs: 1 | RS-485 ports: 1 | Ethernet LAN: Yes | Ethernet interface type: Fast Ethernet/Gigabit Ethernet | Ethernet LAN (RJ-45) ports: 1 | Ethernet LAN data rates: 10/100/1000 | Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P | Number of HDDs supported: 1 | Maximum HDD capacity: 16000 | Maximum video resolution: 3840 x 2160 | Audio formats supported: G.711 A-law/G.711u/PCM | Video compression formats: H.264/H.264+/H.265/H.265+ | Backup function: Yes | Video loss detection: Yes | Video motion detection: Yes | Audio input channels: 16 | Audio output channels: 1.0 | Dual stream support: Yes | Graphical user interface (GUI): Yes | Multi-display modes: 1/16/25/36/4/8/9 | Multi-display supported: Yes | Operating system installed: Embedded LINUX | Playback modes: Event/General/Instant/Smart/Tag | Product colour: Black | USB connectivity: Yes | Rack capacity: 1U | Video resolutions: 1280 x 720/1920 x 1080/3840 x 2160 | Power supply type: DC | DC voltage: 12 | Power consumption (typical): 15 | Width: 325 | Depth: 257.1 | Height: 55 | Weight: 1390 | Package width: 374 | Package depth: 119 | Package height: 311 | Package weight: 2060 | Quick start guide: Yes | Operating relative humidity (H-H): 10 - 90 | Operating temperature (T-T): -10 - 55 | Storage temperature (T-T): -20 - 60 | Compliance certificates: CE | Unit Calculated Weight: 2.03 | Product Net Weight: 1.39 | Unit Calculated Volume: 0.01337 | Units per Shipping Box: 1 | Unit Width: 11.5 | Units per Pallet: 0 | Shipping Box Height: 31 | Unit Depth: 37.5 | Unit Height: 31 | Name: DVR 16CH HDCVI PENTABRID/XVR5116H-4KL-I3/T DAHUA
