MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – photo 1
MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – video
MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – photo 2
MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – photo 3
MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – photo 4
MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX – photo 5
MSI

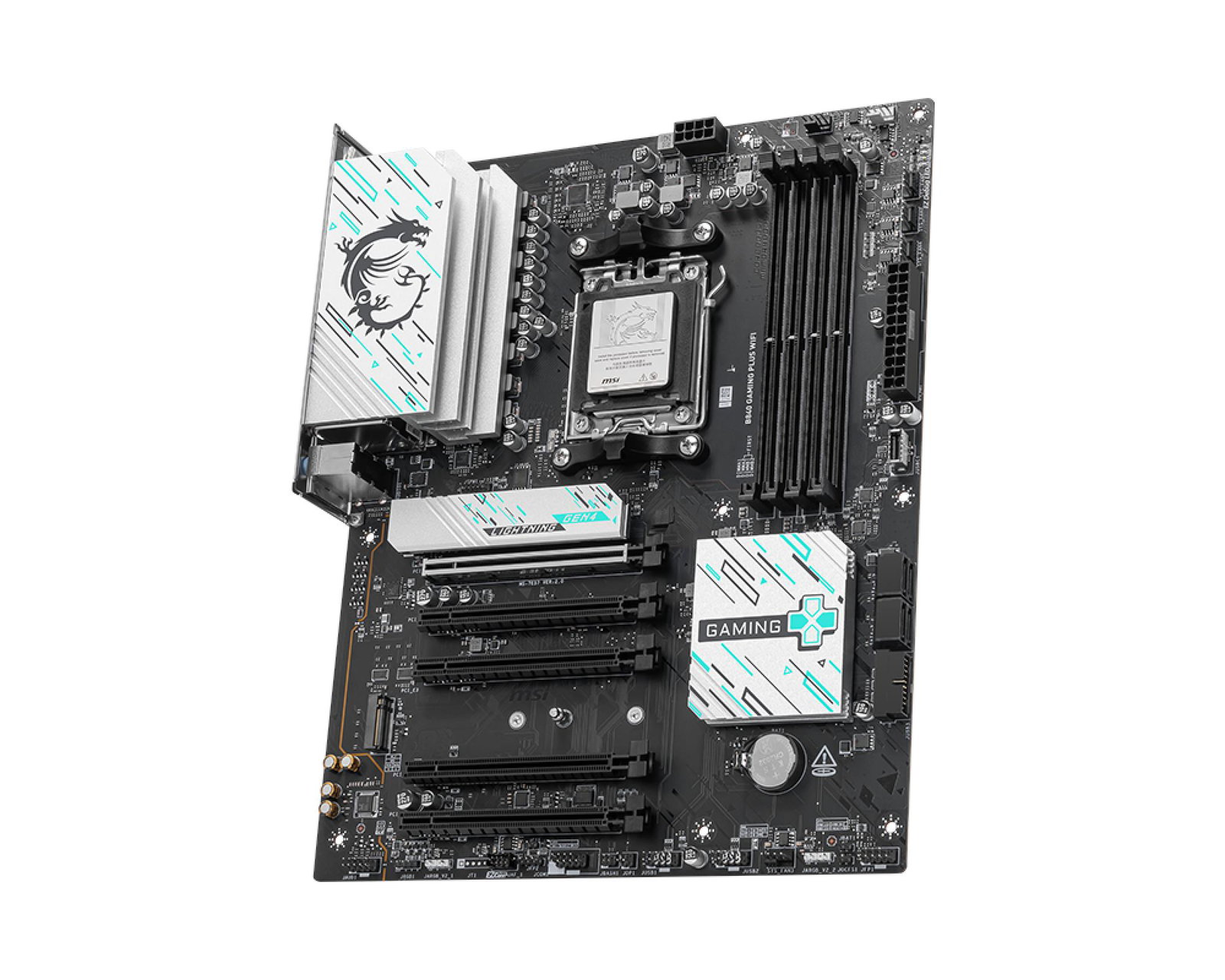

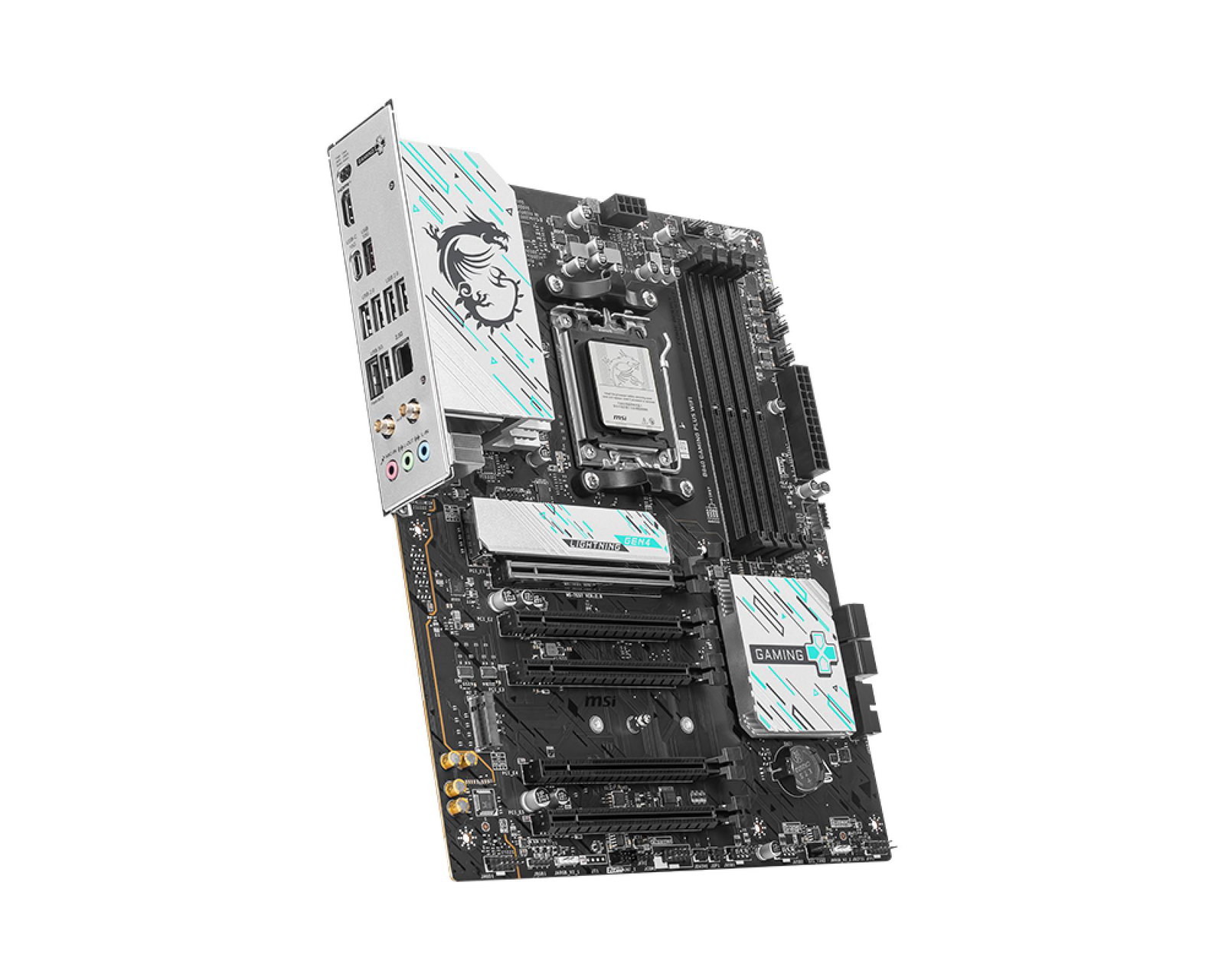

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX

This offer ends in:
Days
Hours
Min
Sec
R3,031
R3,113
incl. VAT: R3,486
  • Stock: Backordered - ETA 7-10 Days
  • Brand: MSI
  • Model: B840 GAMING PLUS WIFI
  • Weight: 2.24 kg
  • Dimensions: 35 × 28 × 7 cm
  • EAN: 4711377286589
  • Product code: 406918
Backordered goods Delivery in 7–10 working days

Available Options

R3,031 incl. VAT: R3,486

Key features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Key features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Tags: msi motherboards , msi motherboard

Description

B840 GAMING PLUS WIFI

The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

DIRECT 7+2+1 POWER DESIGN

Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

Price History

Price History

Current price3,031 ZAR
3,6963,3302,96408-2409-0409-1609-2710-0910-20
Regular priceSpecial price

Specifications

Processor
Processor manufacturer AMD
Processor socket Socket AM5
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Maximum internal memory supported by processor 256 GB
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 256 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility Non-ECC
Supported memory clock speeds 4800,5600,8000 MHz
Supported memory clock speed (max) 8000 MHz
Storage controllers
Supported storage drive interfaces M.2, Micro SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10
Graphics
On-board graphics card No
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of SATA connectors 0
Total number of SATA connectors 4
Number of CPU fan connectors 1
Number of chassis fan connectors 5
Number of water pump connectors 1
RGB LED pin header Yes
Number of RGB LED pin headers 3

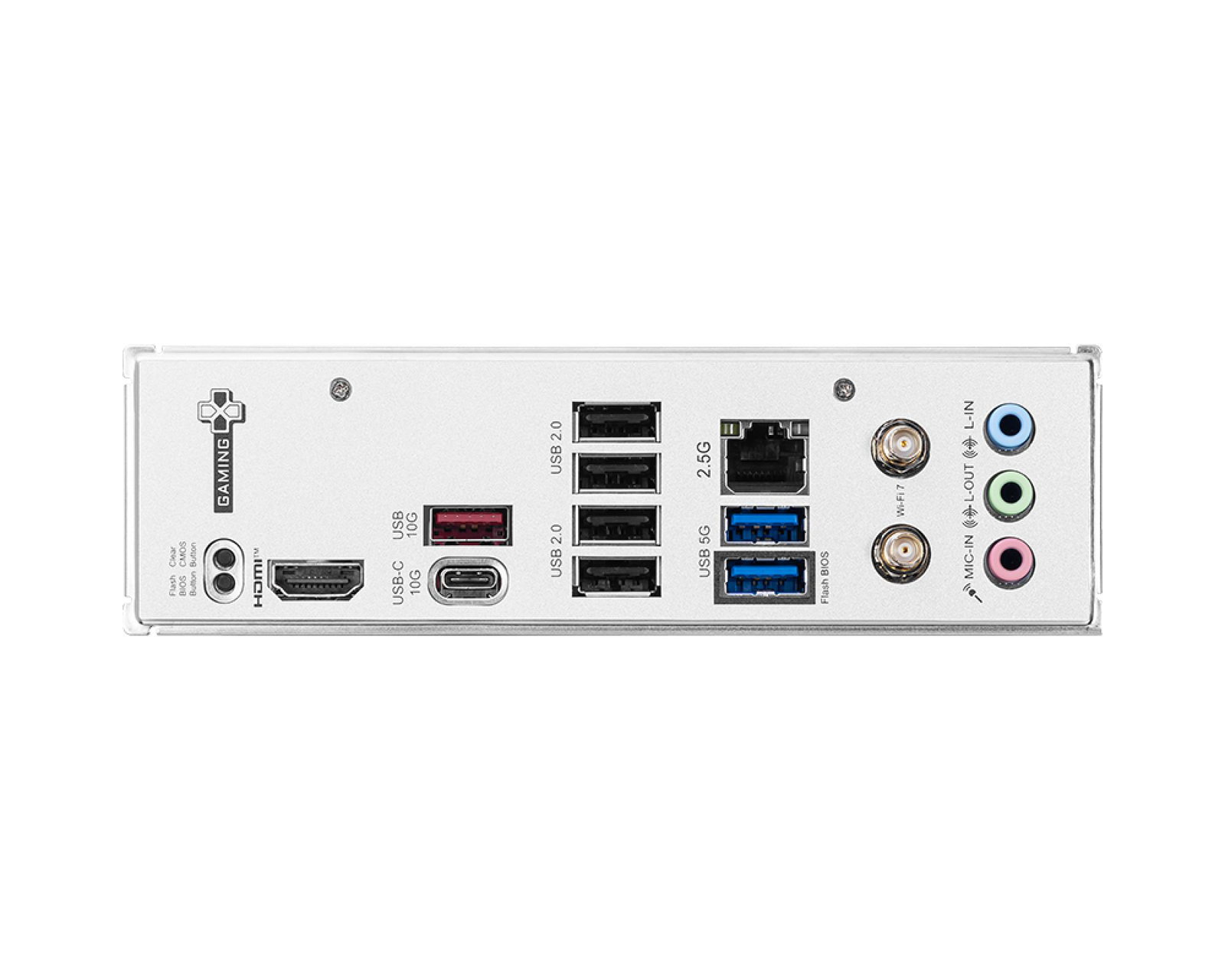

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
HDMI version 2.1
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth Yes
Bluetooth version 5.4
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family AMD
Motherboard chipset AMD B840
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Black
PC health monitoring CPU, Fan, Temperature, Voltage
Windows operating systems supported Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots 4
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4
BIOS
BIOS type UEFI AMI
ACPI version 6.5
Weight & dimensions
Width 243.8 mm
Depth 304.8 mm
Other features
mSATA ports quantity 0
