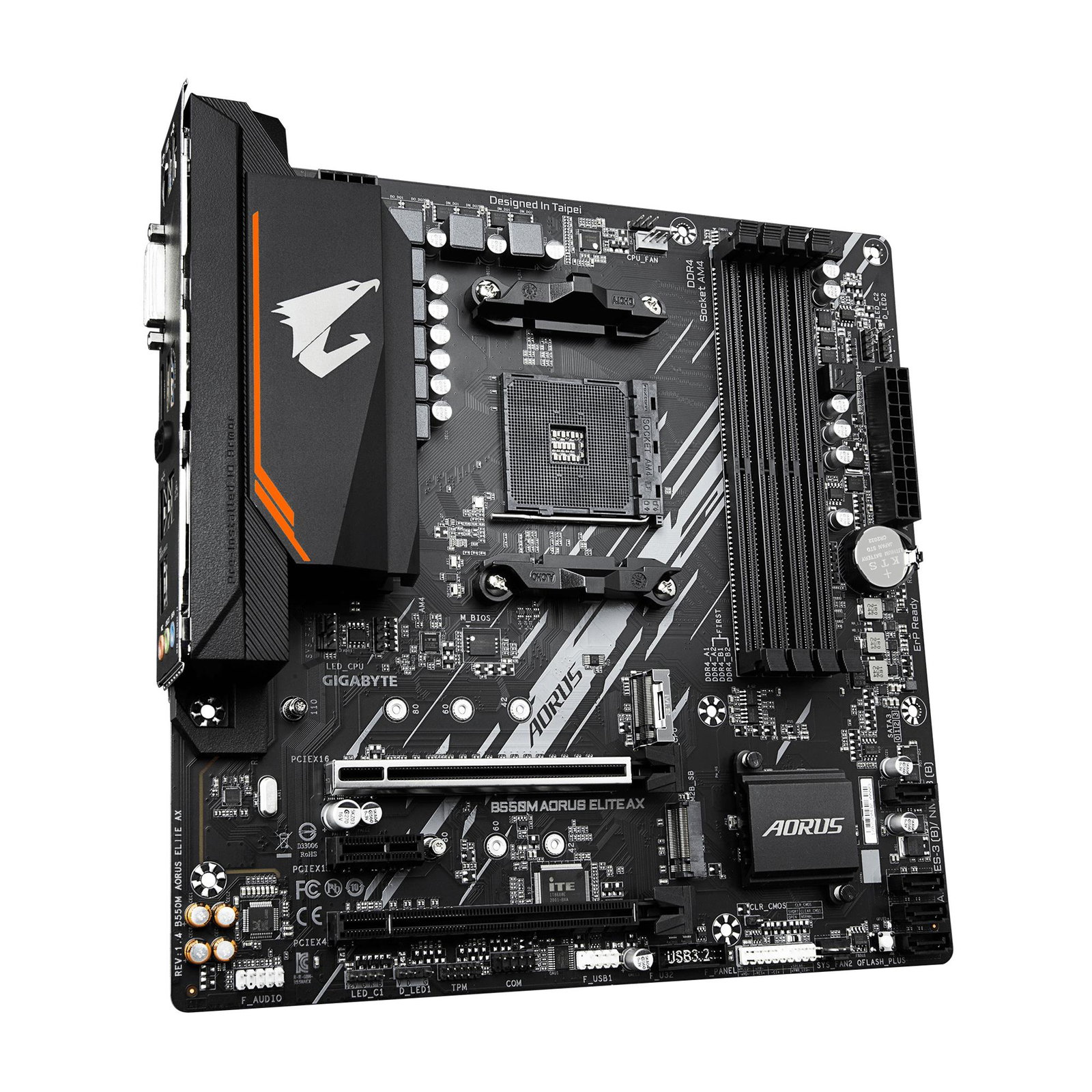

GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1 – photo 1
GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1 – photo 2
GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1 – photo 3
GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1 – photo 4
GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1 – photo 5
GIGABYTE

GIGABYTE B550M AORUS ELITE AX Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 1

R2,645
incl. VAT: R3,041
  • Stock: Backordered - ETA 7-10 Days
  • Brand: GIGABYTE
  • Model: B550M AORUS ELITE AX (REV. 1.4)
  • Weight: 1.15 kg
  • Dimensions: 27 × 27 × 7 cm
  • EAN: 4719331855055
  • Product code: 407165
Backordered goods Delivery in 7–10 working days

Available Options

R2,645 incl. VAT: R3,041

Key features

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.3
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Key features

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.3
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Tags: gigabyte motherboards , gigabyte motherboard

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Price History

Current price2,645 ZAR
2,6862,4932,30008-2409-0409-1609-2710-0910-20
Regular price

Specifications

Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors 1
Supported processor sockets Socket AM4
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max) 4733 MHz
Unbuffered memory Yes
Maximum internal memory per slot 32 GB
Storage controllers
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of CPU fan connectors 1
Number of chassis fan connectors 2
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
TPM connector Yes
Serial port headers 1
12V power connector Yes
Number of water pump connectors 2
RGB LED pin header Yes
Number of RGB LED pin headers 5

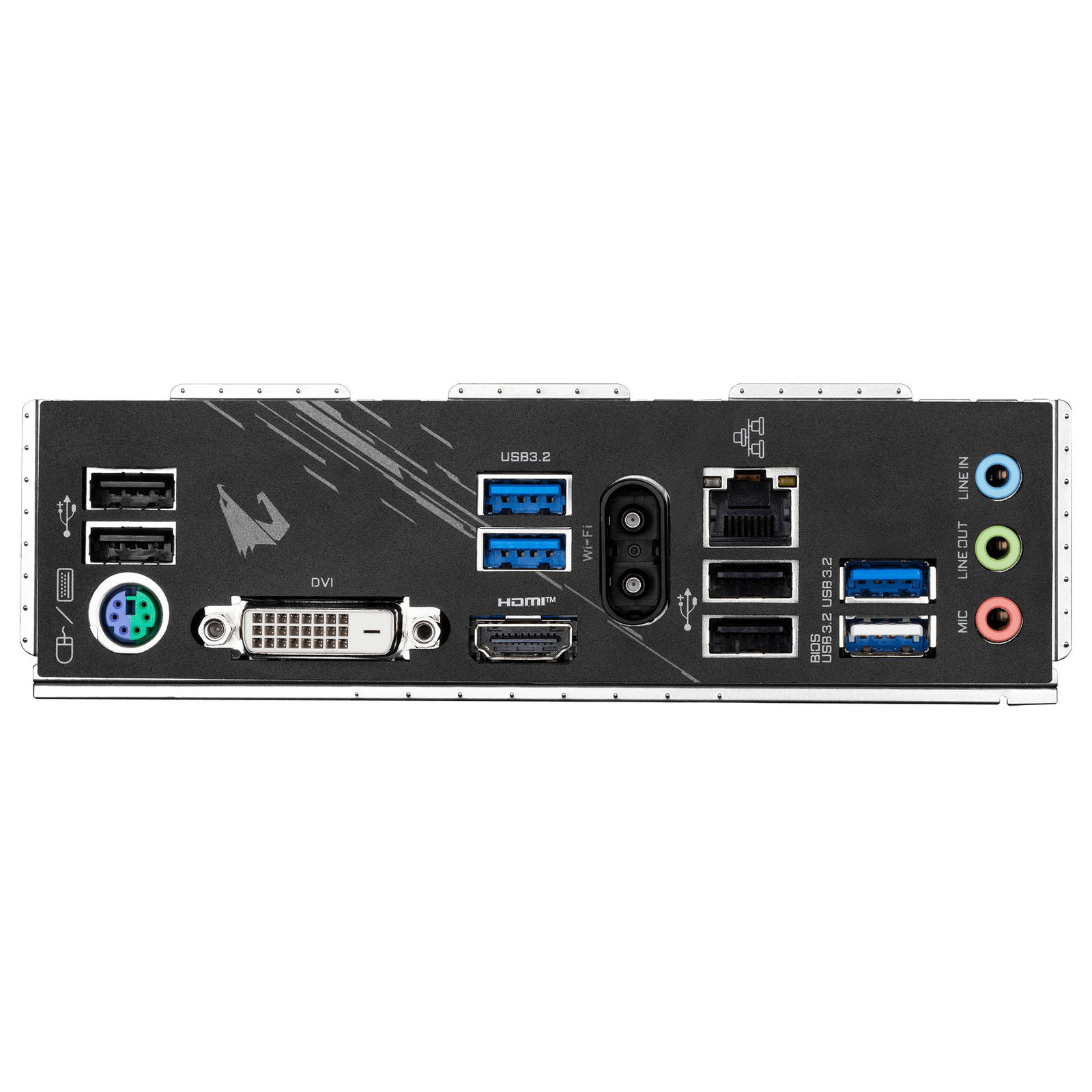

Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 1
PS/2 ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
WiFi-AP antenna jack 2
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards Wi-Fi 6E (802.11ax)
WLAN controller model Realtek RTL8852CE
Bluetooth Yes
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B550
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Product colour Brown
PC health monitoring Fan, Temperature, Voltage
Cooling type Passive
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 22110
1st M.2 highest PCI Express generation 4
2nd M.2 largest key size 2280
2nd M.2 highest PCI Express generation 3
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 65 mm
Package weight 1.27 kg
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Packaging content
Batteries included Yes
Antenna included Yes
Screws included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Technical details
Warranty period 3 year(s)
