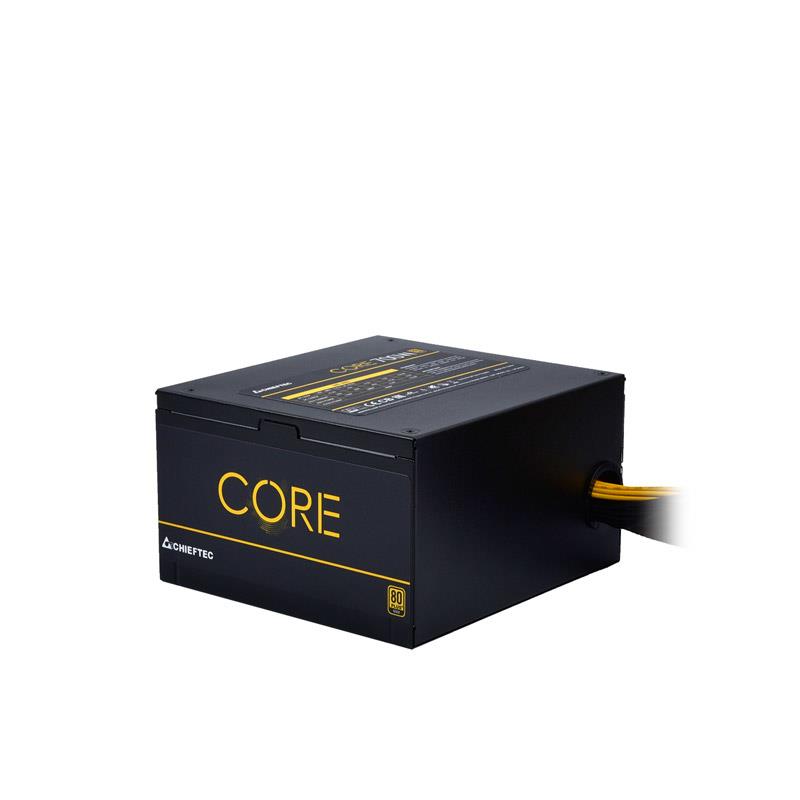

Power Supply CHIEFTEC BBS-700S PS/2 PC 100 - 240 V 700 W BBS-700S

Блок живлення ATX 2.3 Chieftec CORE 700W 80 PLUS Gold Black (BBS-700S)

With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.

• 80 PLUS Gold Efficiency
• Compact size with only 140mm depth
• Motherboard, CPU and PCI-E cable lengths of 650mm

Summary: Chieftec Core BBS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm | Vendor Homepage: https://www.chieftec.eu/products-detail/113/CORE_SERIES/116/BBS-700S | Total power: 700 | AC input voltage: 100 - 240 | AC input frequency: 47 - 63 | Input current: 10 | Power Factor Correction (PFC) type: Active | Combined power (-12V): 3.6 | Combined power (+5Vsb): 12.5 | Max output current (+3.3V): 22 | Max output current (+12V1): 58 | Max output current (+5V): 22 | Max output current (-12V): 0.3 | Max output current (+5Vsb): 2.5 | Power protection features: Over voltage/Overload/Short circuit | Motherboard power connector: 24-pin ATX | Number of SATA power connectors: 6 | SATA power cable length: 150/500 | Peripheral (Molex) power connectors (4-pin): 3 | Peripheral (Molex) power cable length: 150/500 | PCI Express power connectors (6+2 pin): 4 | PCI Express power cable length: 500 | CPU power connector (4+4 pin): Yes | CPU power cable length: 650 | Floppy disk drive connector: Yes | Floppy drive power connector: 1 | Connector(s): 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 4 SATA 6 MOLEX/FLOPPY 3/1 | Cabling type: Non-Modular | 80 PLUS certification: 80 PLUS Gold | Purpose: PC | Power supply unit (PSU) form factor: PS/2 | Product colour: Black | Cooling type: Active | Fan diameter: 120 | Number of fans: 1 | Width: 140 | Depth: 150 | Height: 86 | Weight: 1720 | Package weight: 2130 | Harmonized System (HS) code: 84733020 | Unit Calculated Weight: 2.17 | Product Net Weight: 1.72 | Unit Calculated Volume: 0.006398 | Units per Shipping Box: 4 | Unit Width: 11 | Units per Pallet: 0 | Shipping Box Height: 22 | Unit Depth: 24 | Unit Height: 19 | Name: CASE PSU ATX 700W/BBS-700S CHIEFTEC | Model name: BBS-700S
