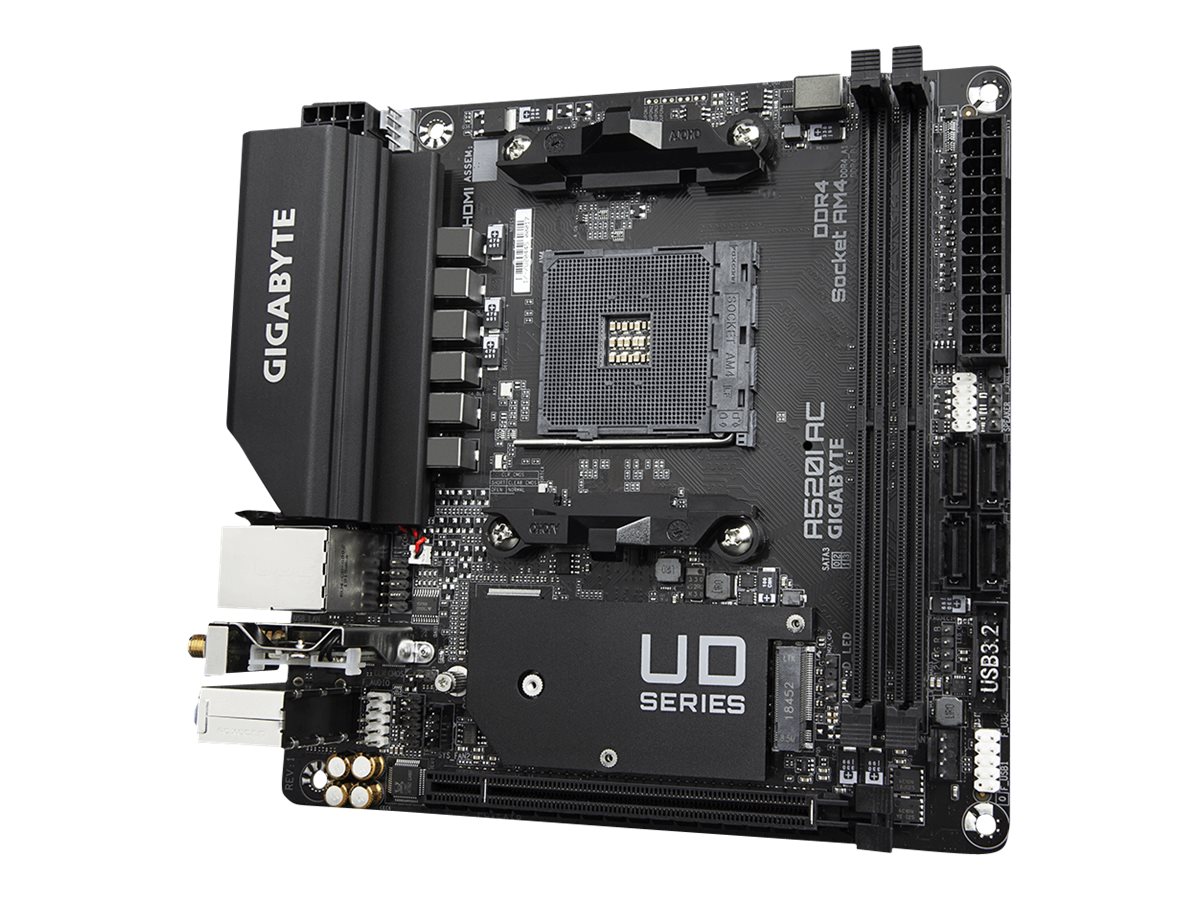

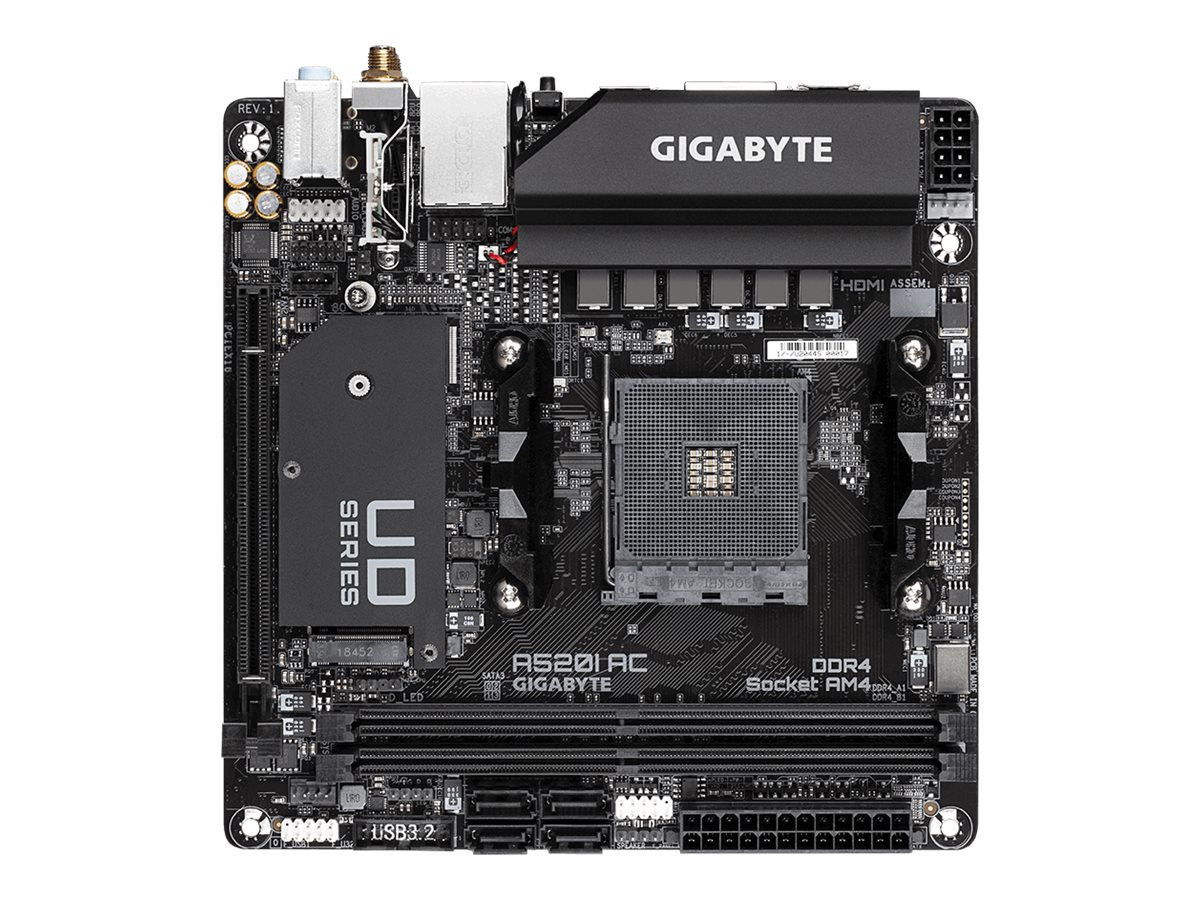

GIGABYTE A520I AC Motherboard
R2,459
incl. VAT: R2,828
  • Stock: In Stock
  • Brand: GIGABYTE
  • Model: A520I AC
  • Weight: 0.81kg
  • Dimensions: 22.00cm x 19.00cm x 8.00cm
  • EAN: 4719331809867

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6 Phases Digital VRM Solution with 55A DrMOS
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
  • Realtek GbE LAN with Bandwidth Management
  • DisplayPort, Dual HDMI for for Multiple Display
  • RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Key features

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6 Phases Digital VRM Solution with 55A DrMOS
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
  • Realtek GbE LAN with Bandwidth Management
  • DisplayPort, Dual HDMI for for Multiple Display
  • RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
Tags: gigabyte motherboards , gigabyte motherboard
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Price History

Current price2,459 ZAR
2,4622,4452,42808-2408-3009-0509-1109-1709-23
Regular price
Specifications
Warehouse group Components - Motherboards - Motherboards - AMD [+6][-51]
Processor
Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series
Supported processor sockets Socket AM4
Maximum internal memory supported by processor 64 GB
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Maximum internal memory 64 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Supported memory clock speed (max) 5300 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Unbuffered memory Yes
Storage controllers
Supported storage drive interfaces M.2, SATA III
Number of HDDs supported 4
Number of storage drives supported 5
RAID support Yes
RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Maximum resolution 5120 x 2880 pixels
HDCP Yes
DirectX version 12
Number of displays supported 3
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of SATA connectors 0
Total number of SATA connectors 4
Number of Parallel ATA connectors 0
Audio connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
Power fan connector Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
Serial port headers 1
RGB LED pin header Yes
Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 2
DVI-D ports quantity 0
HDMI version 2.1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 3
WiFi-AP antenna jack 2
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Yes
Bluetooth version 4.2
Features
Component for PC
Motherboard form factor mini ITX
Motherboard chipset family AMD
Motherboard chipset AMD A520
Audio output channels 7.1 channels
Audio chip Realtek ALC887
Product colour Black
PC health monitoring Fan, Temperature, Voltage
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
ACPI version 5
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Packaging data
Package width 222 mm
Package depth 189 mm
Package height 78 mm
Package weight 800 g
Weight & dimensions
Width 170 mm
Depth 170 mm
Height 35 mm
Packaging content
Batteries included Yes
Bundled software Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Other features
mSATA ports quantity 0
Technical details
Warranty period 3 year(s)
