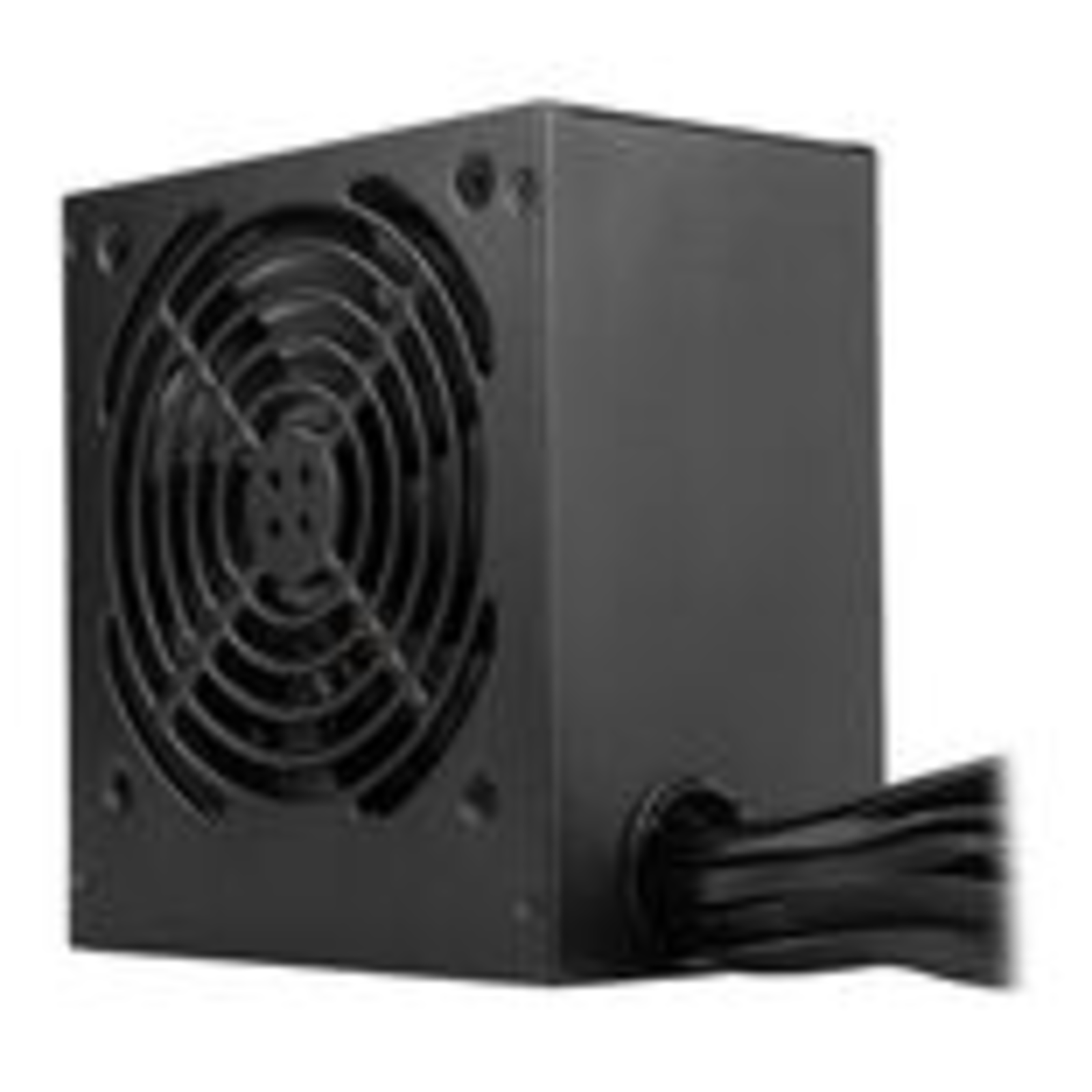

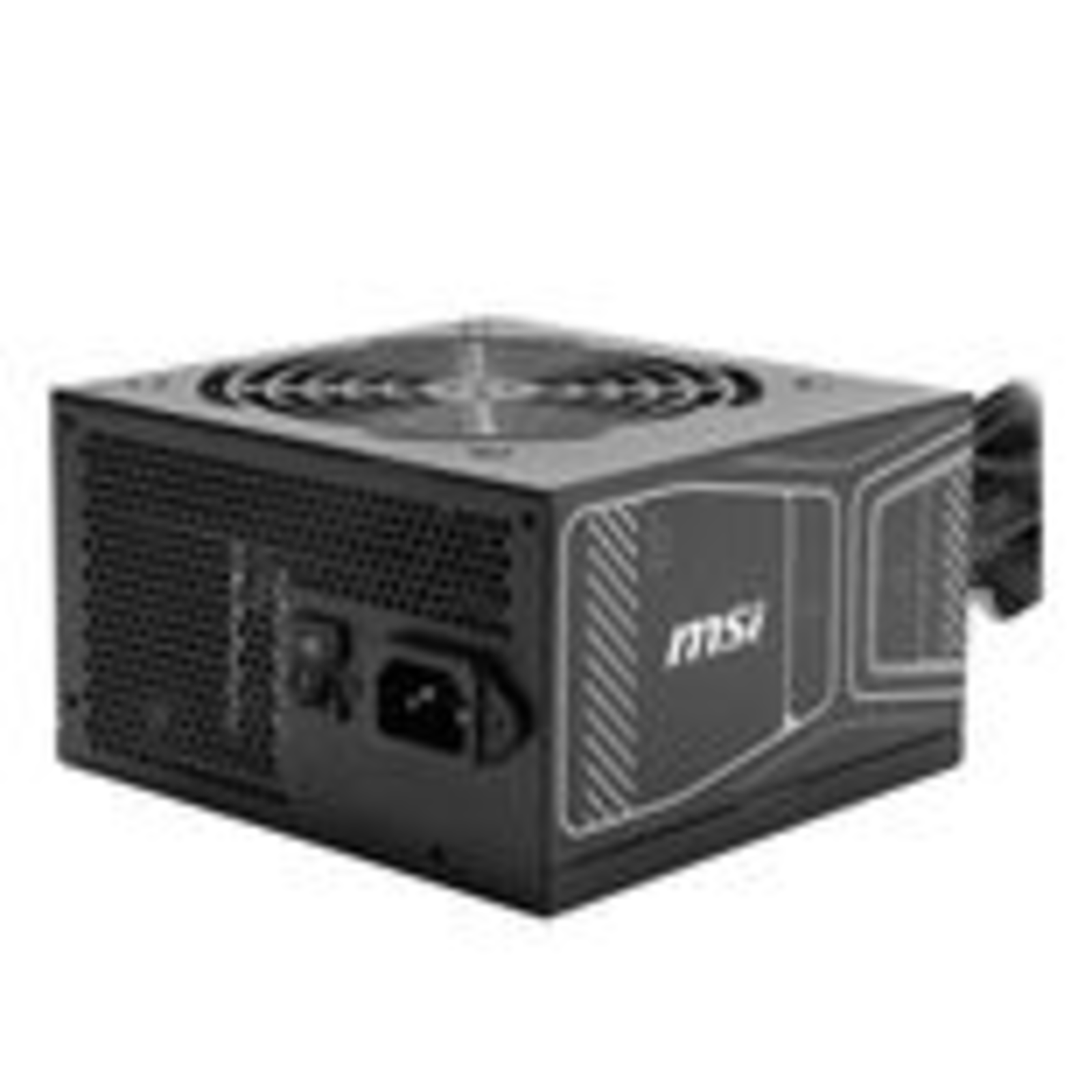

MSI MAG A750GN PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black

MSI MAG A750GN PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black
R3,116
incl. VAT: R3,584
  • Stock: In Stock
  • Brand: MSI
  • Model: 306-7ZPBY11-CE0
  • EAN: 4711377244282

Available Options

Key features

  • ATX 3.1 ready, native PCIe 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • 105°C main capacitor
  • 80 Plus Gold certified for high efficiency with Active PFC design
  • Industrial level protection with OVP, OCP, OPP, OTP, SCP
  • 120 mm Sleeve Bearing Fan
  • Full Bridge Topology with DC-DC module design

Key features

  • ATX 3.1 ready, native PCIe 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • 105°C main capacitor
  • 80 Plus Gold certified for high efficiency with Active PFC design
  • Industrial level protection with OVP, OCP, OPP, OTP, SCP
  • 120 mm Sleeve Bearing Fan
  • Full Bridge Topology with DC-DC module design
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.

Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.

CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.

Price History

Current price3,116 ZAR
3,1193,1043,08908-2408-3109-0709-1409-2109-28
Regular price
Specifications
Warehouse group Komponenten & Zubehör > AC Adapter/Netzteile [+2080][-1080]
Power
Total power 750 W
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Maximum input current (@110V) 47 A
Maximum input current (@220V) 63 A
Power Factor Correction (PFC) type Active
Number of +12V rail(s) 1
Combined power (+3.3V) 110 W
Combined power (+12V) 750 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62.5 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Efficiency 90%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 4
Motherboard power cable length 55 cm
Number of SATA power connectors 4
SATA power cable length 150,450 mm
Peripheral (Molex) power cable length 500 mm
EPS power connector (8-pin) No
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6-pin) 0
PCI Express power connectors (6+2 pin) 2
PCI Express power connectors (8-pin) 0
PCI Express power connectors (12+4 pin) 0
PCI Express power connectors (12-pin) 0
CPU power connector (4+4 pin) Yes
ATX Power connector (24-pin) No
ATX power connector (20+4 pin) No
Cabling type Non-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.1
Bearing technology Sleeve
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Illumination No
On/off switch Yes
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Packaging data
Package type Box
