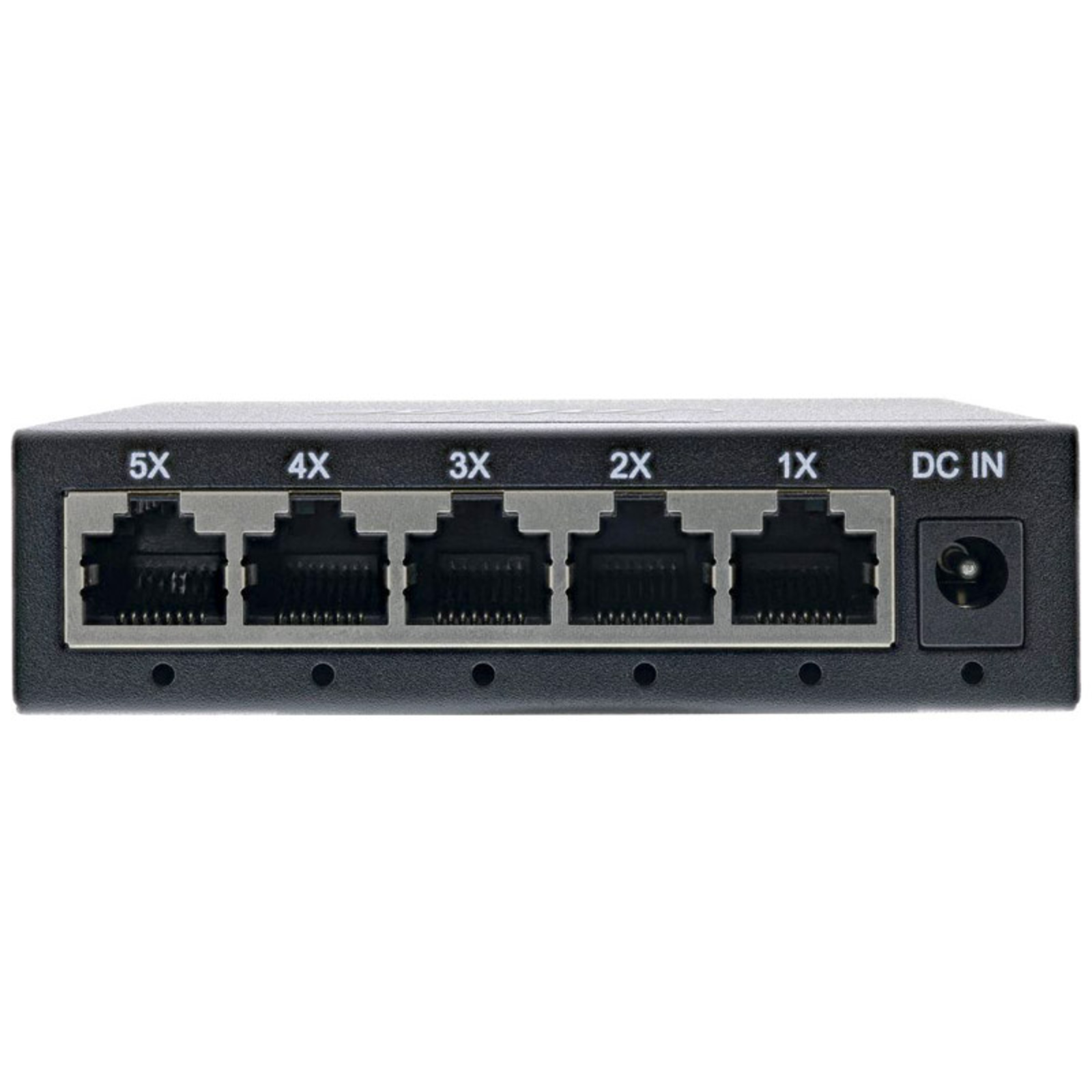

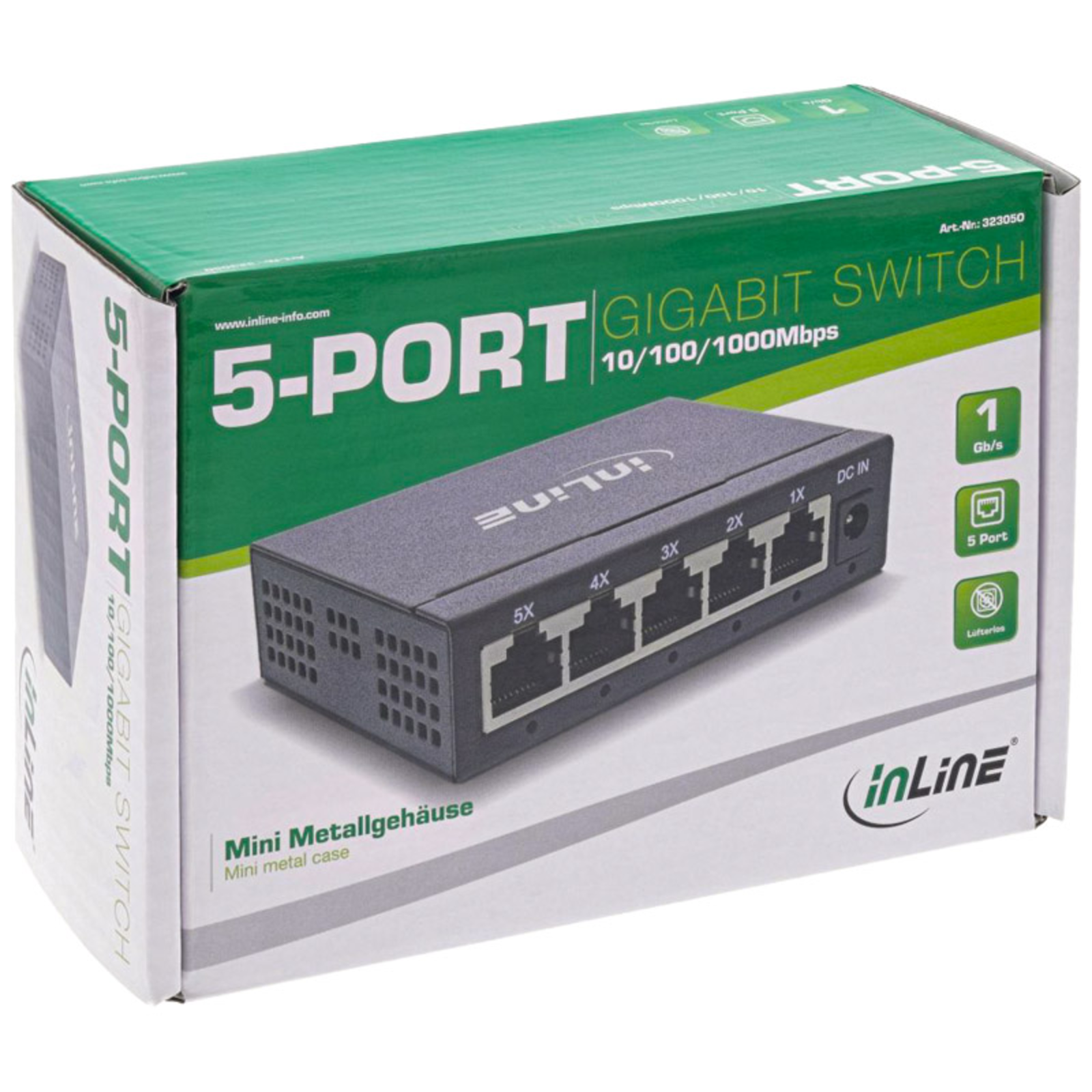

InLine Gigabit network switch 5-port, 1Gb/s, desktop, metal housing, fanless
R1,085
incl. VAT: R1,248
  • Stock: In Stock
  • Brand: INLINE
  • Model: 32305O
  • EAN: 4043718298099

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product
 PDF Google

Key features

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 1 Gbit/s
  • Power supply included

Key features

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 1 Gbit/s
  • Power supply included
Tags: inline networking , inline networkin
Easy network distribution:The switch enables the reliable connection of up to five network-compatible devices via Ethernet and facilitates the creation of structured networks without configuration effort.
Stable continuous operation:The fanless metal housing supports silent operation and is suitable for continuous use in sensitive environments.
Automatic adaptation:All ports automatically detect speed and duplex mode and automatically adapt to connected devices.
Reliable data transmission:The store-and-forward process ensures that data packets are checked and forwarded correctly.
Flexible installation:Suitable for use on the desk or for wall mounting thanks to pre-punched mounting holes on the underside of the device.

The InLine® Gigabit network switch with five ports is used for the reliable expansion of existing networks. It enables the simple connection of several Ethernet devices via standard patch cables with a length of up to 100 m. Plug-and-play operation means that no configuration is required. The automatic negotiation of the transmission speed and Auto MDI/MDIX support fast and error-free commissioning.
The robust metal housing protects the internal electronics and supports stable continuous operation. Thanks to the fanless design, the switch operates completely silently. The store-and-forward transmission method ensures controlled forwarding of data packets and contributes to reliable network communication.
Thanks to its support of common Ethernet standards, the switch can be easily integrated into existing network structures. The compact design and the option of wall mounting allow for flexible placement even where space is limited.

IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
CSMA/CD
TCP/IP
IEEE802.3x flow control in full-duplex mode
Backpressure in half-duplex mode
MAC address table: 4K
Forwarding rate: 1488000 pps per port
Backbone bandwidth: 1 Gb/s
RJ45 ports with Auto MDI/MDIX
Supported cable types: UTP Cat.5, Cat.5e or higher
Operating temperature: 0 °C to 60 °C
Storage temperature: -10 °C to 70 °C
Operating humidity: 10% to 90% non-condensing

Price History

Current price1,085 ZAR
1,1391,0851,03108-2408-3109-0709-1309-2009-27
Regular price
Specifications
Warehouse group Server, Storage & Netzwerk > Switche [+1344][-790]
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Full duplex Yes
Half duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto-negotiation Yes
MAC address auto-learning supported Yes
Data transmission
MAC address table 4000 entries
Switching capacity 1 Gbit/s
Forwarding rate 1.488 Mpps
Store-and-forward Yes
Transmission method Store-and-forward
Design
Product colour Black
LED indicators Link, Power
Performance
Maximum data transfer rate 1000 Mbit/s
Power
Power supply included Yes
DC input voltage 5 V
Input current 1 A
Other features
Dimensions (WxDxH) 93 x 2.89 x 68 mm
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports 5
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 93 mm
Depth 2.89 mm
Height 68 mm
Weight 2.5 kg
Packaging data
Package width 110 mm
Package depth 160 mm
Package height 65 mm
Package weight 162 g
