Axagon ADSA-1S USB 2.0 - 2.5" HDD SATA

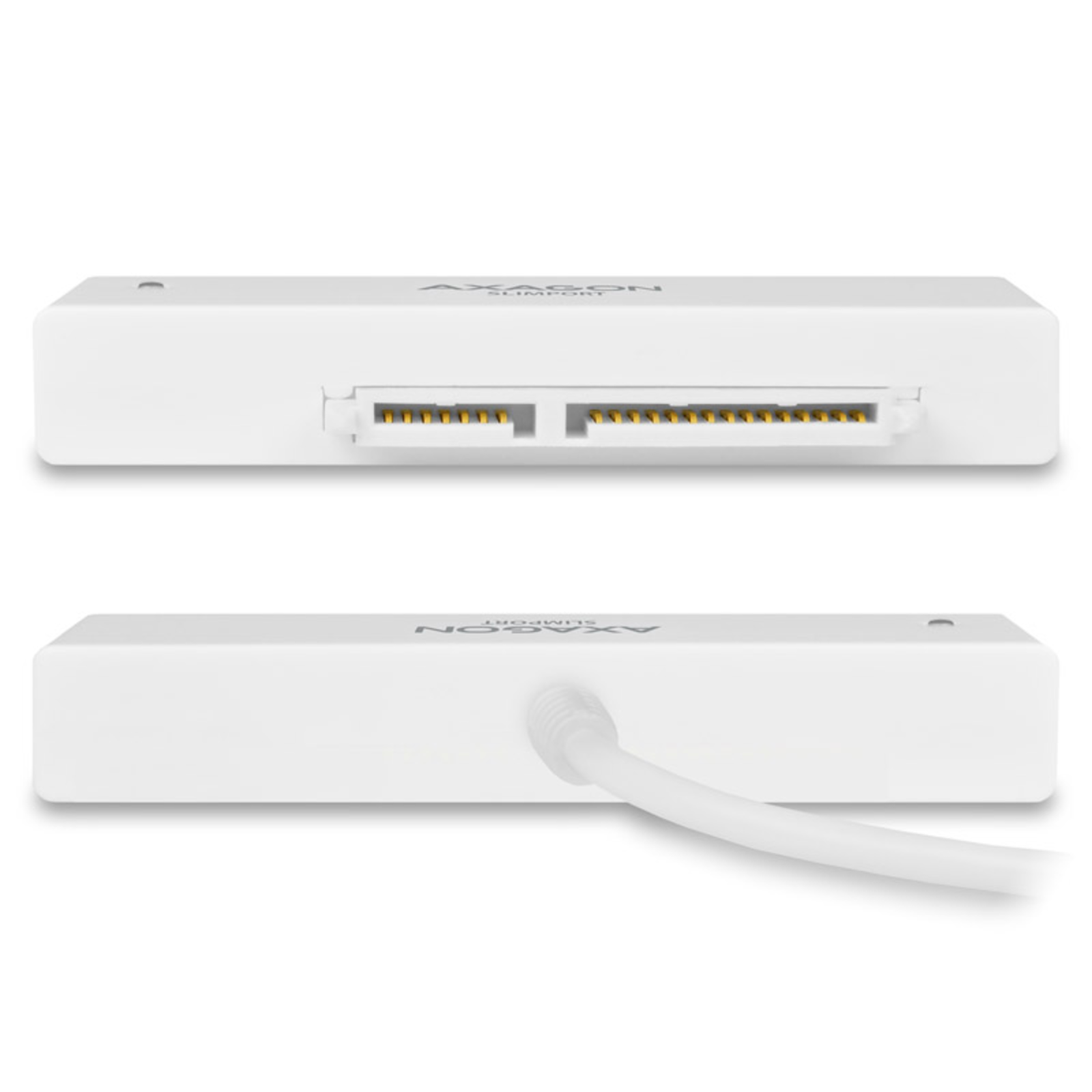

The compact AXAGON ADSA-1S SLIMport3 adapter with USB 2.0 interface for easy connection to a 2.5" SATA disk.

A handy tool to quickly connect a laptop disk, including boot support.

Reading of S.M.A.R.T. information monitoring the condition of the connected disks. Supports spindown of connected disks.

The installation can be handled even by a layman - the disk connects to the adapter and the adapter to the computer's USB port; the rest is done automatically.

Minimum dimensions and weight, along with an enclosed disc case, make the product ideally suited even for mobile use.

Features:
• Fully compatible with USB 2.0 and backward compatible with USB 1.1.
• Supports transmission rates 12 / 480 Mbit/s (full / high speed).
• Supports 2.5" SATA III / II / I disks of all capacities.
• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
• The total bandwidth / transmission rate of the adapter is determined by the USB 2.0 interface used (theor. 480 Mbit/s).
• Supports booting from SSD/HDD connected via an USB adapter.
• HDD Auto Spindown support - possibility to set the interval for disk spindown when idle.
• HDD Auto Stop - the disk turns off after your PC spins down.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Connection via direct USB Type A male connector on a 20 cm long cable that is permanently connected to the adapter.
• Power supply via USB bus.
• A blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking).
• Compact adapter dimensions 70 x 21 x 11 mm.
• Adapter weight of only 17 g, including a 20 cm USB cable.

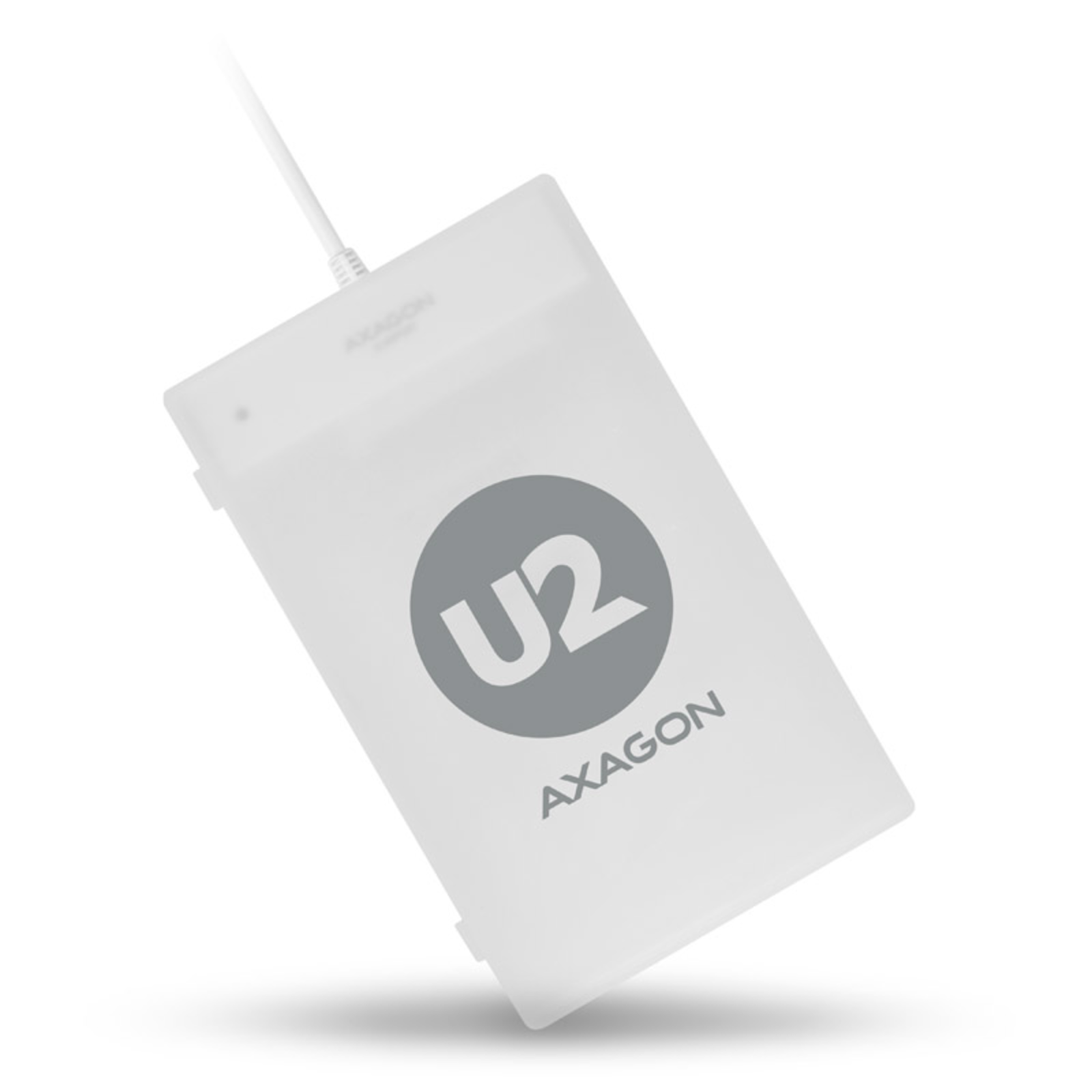

• Simple plastic case holds 2.5" disk max. 9.5 mm high with USB adapter connected (USB cable is led out through hole in the case).
• For thin 7mm SSDs/HDDs foam pads are included for better fit in the case.

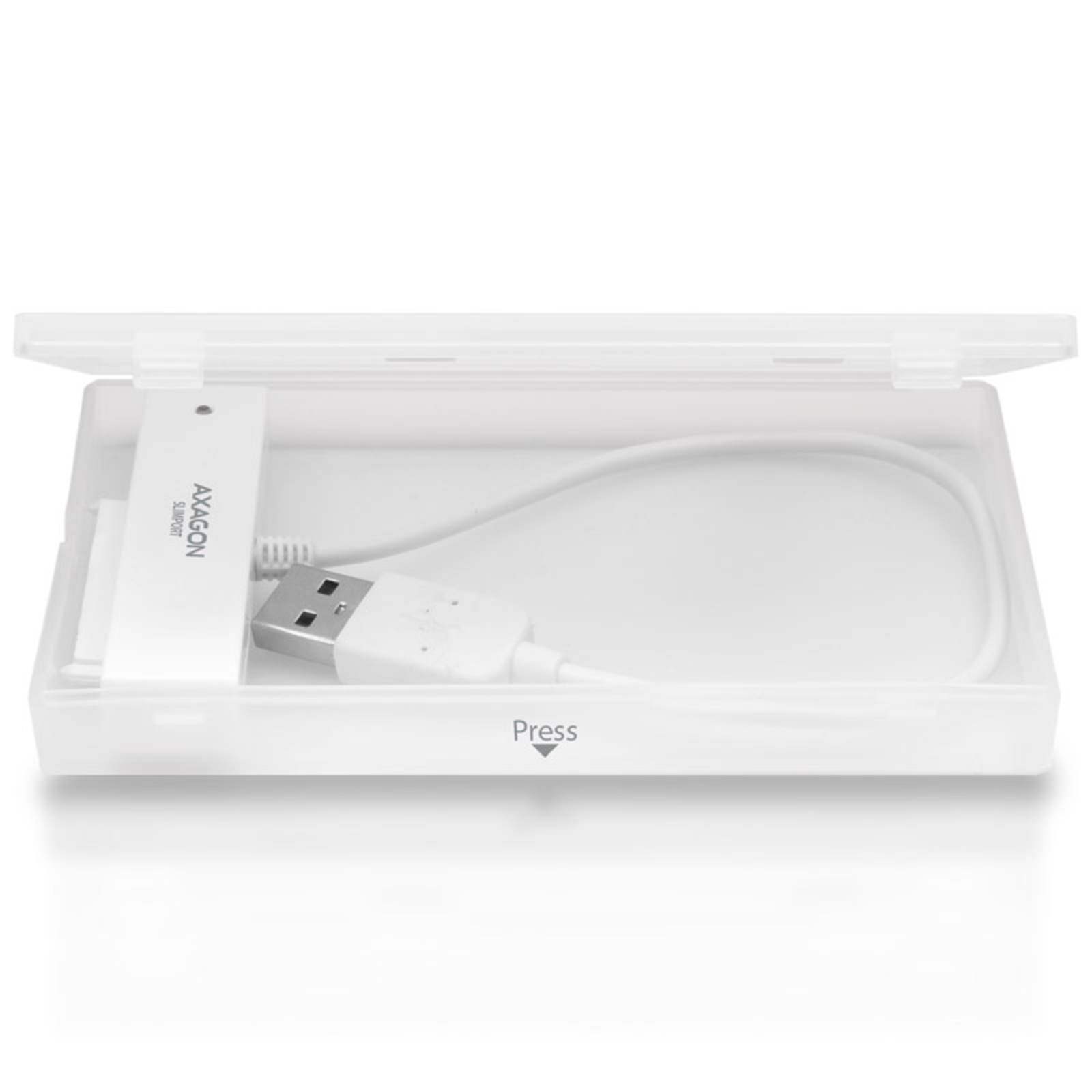

• The case can also serve to transport or store the adapter itself without the disk, with the USB cable inside the case.
• Case dimensions 122 x 78 x 19 mm.
• Case weight 40 g.

Supported OSs: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.
Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

Package contains:
• USB - SATA adapter with permanently connected 20 cm long cable,
• plastic case for 2.5" disk and USB adapter,
• foam pads for 7 mm HDDs and SSDs,
• packed in a cardboard box with the installation procedure included.
