The Club 3D USB 3.0 4K UHD Mini Docking Station with brushed aluminum design, allows you to expand the outputs of your laptop or ultrabook so it can be used as a traditional desktop PC.

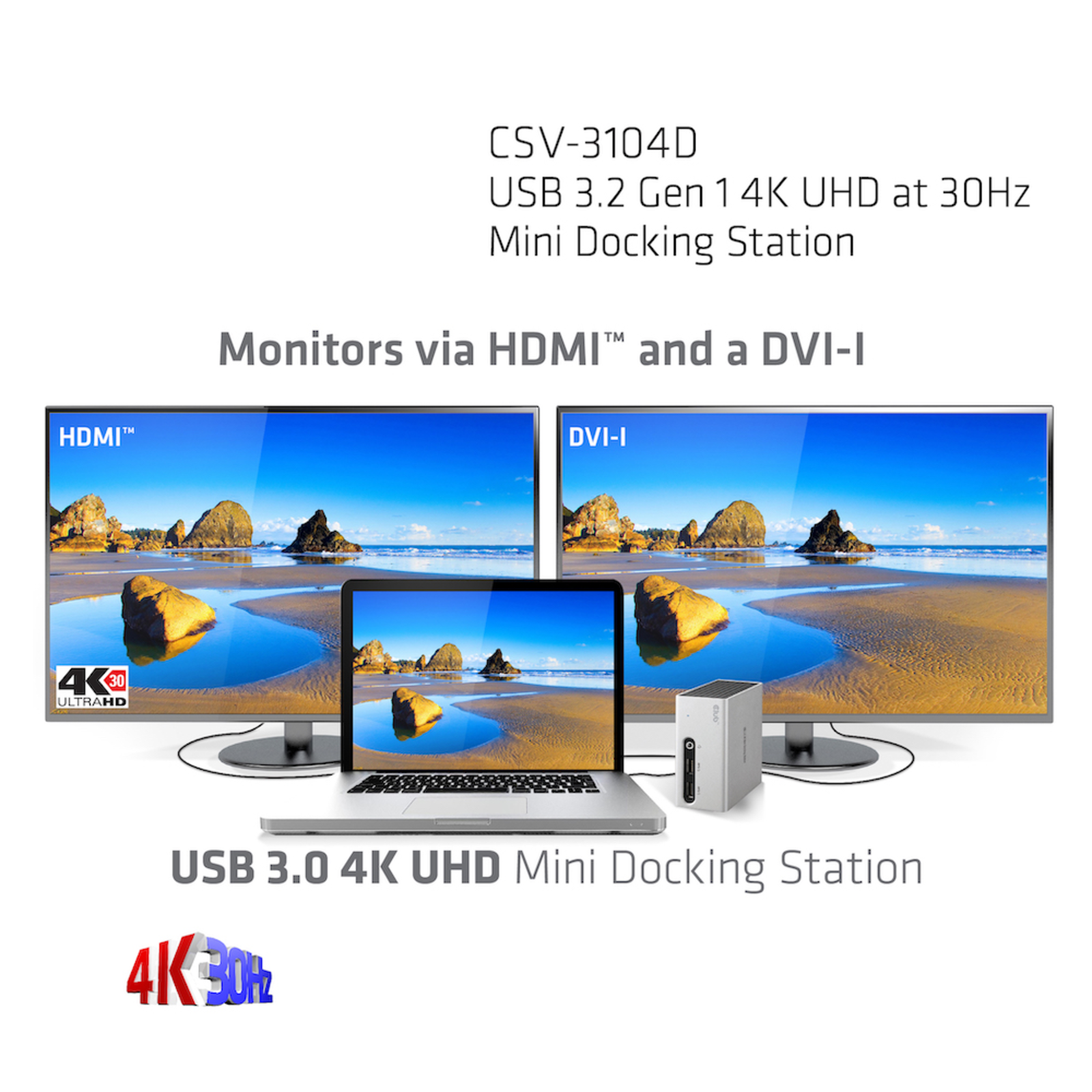

With the advanced DisplayLink DL-5900 chip inside, Club3D’s USB 3.0 4K UHD Mini Docking Station is able to offer you the perfect solution to connect all your favorite USB devices (*4), as well as connect two external monitors via HDMI™ and a DVI-D Connector, in addition to an Ethernet network Connection it also offers an Audio/Microphone output all via a single USB cable.
Because of its convenient and compact design, the Club 3D USB 3.0 4K UHD Mini Docking Station is a versatile tool that provides you maximum functionality from your Small desktop replacement or mobile companion.
Design: The Club3D USB 3.0 4K UHD Mini Docking Station has a modern and minimalistic design and combines the functionality normally found in larger Docking Stations with a convenient, solid and highly portable casing. The miniature size makes it easy to take it with you wherever you go. Use it without external power for maximum mobility*. (*Limits functionality)
Price History
Price History
Current price2,943 ZAR
Regular price
Specifications
Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4
DVI-D ports quantity
1
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
Line-out
Yes
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Product colour
Black, Silver
Card reader integrated
No
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
2
LED indicators
Power

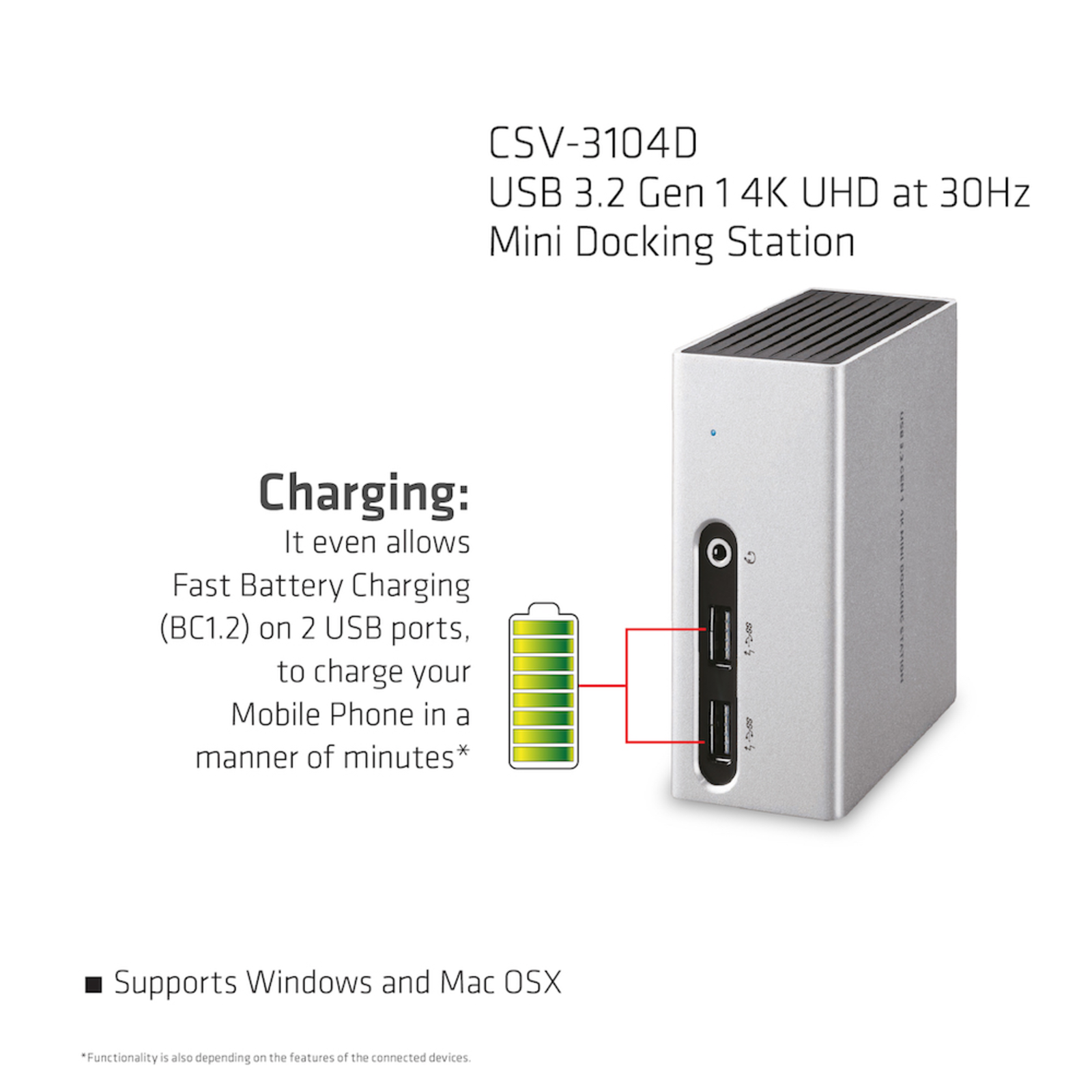

Charging function
Yes
Housing material
Aluminium
Compatibility
Lenovo
Dell
Acer
Asus.
MSI.
Toshiba
Apple
HP
Razer
Power
Power source type
DC
Output voltage
12 V
Output current
3 A
Power consumption (max)
36 W
Power consumption (typical)
14.43 W
Software
Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Sustainability
Sustainability certificates
ENERGY STAR

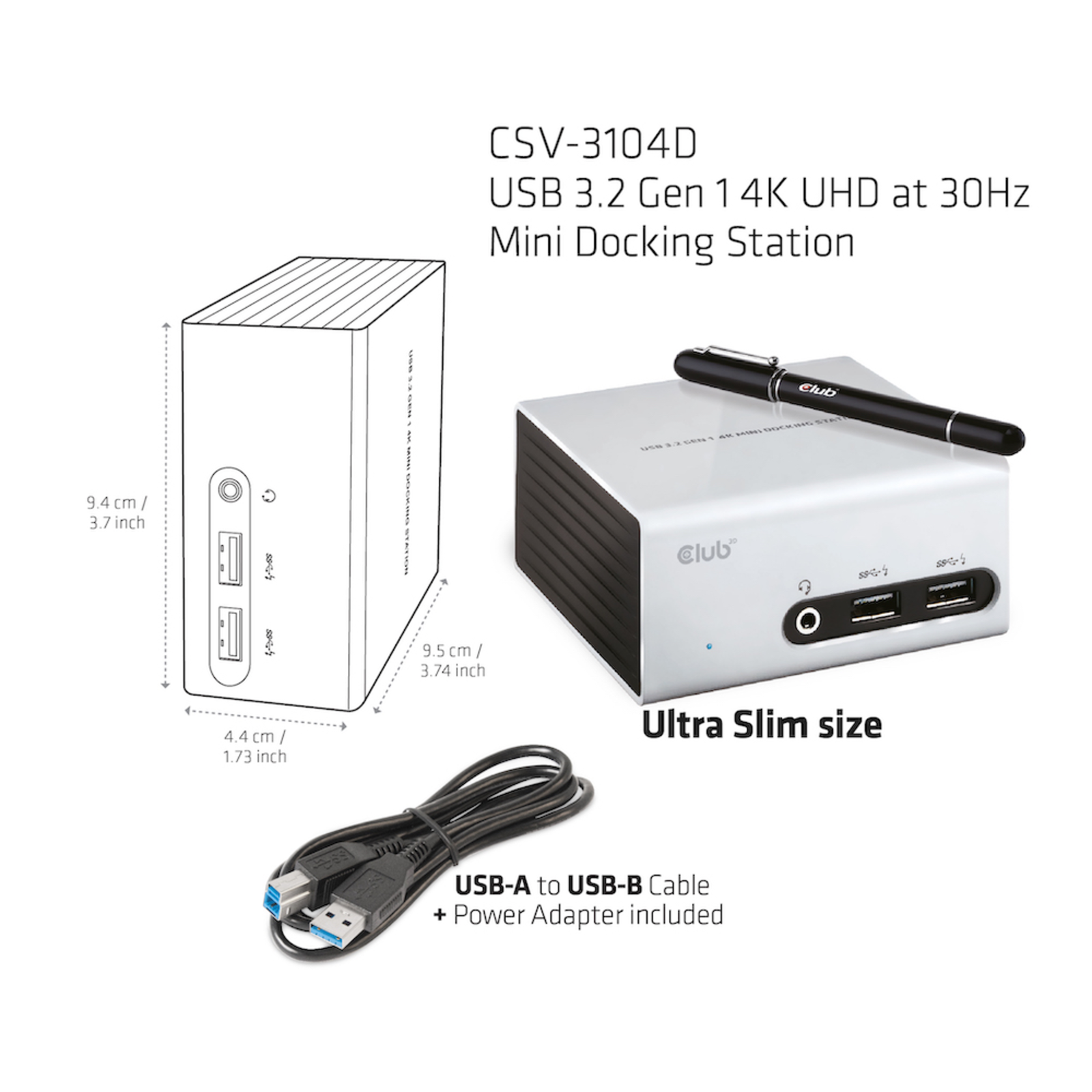

Weight & dimensions
Width
95 mm
Depth
49 mm
Height
44 mm
Weight
260 g
Packaging data
Package width
225 mm
Package depth
142 mm
Package height
55 mm
Packaging content
Cables included
USB
AC adapter included
Yes
Quick start guide
Yes
Drivers included
Yes
Packaging composition
Plastic packaging weight
50 g
Paper/cardboard packaging weight
186 g
Total plastic packaging weight
0 g
Total paper/cardboard packaging weight
0 g
Logistics data
Harmonized System (HS) code
84733020
Other features
Number of microphone inputs
1
