NETGEAR M4350-24X8F8V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black – photo 1
Out of Stock / Please Enquire ETA
NETGEAR

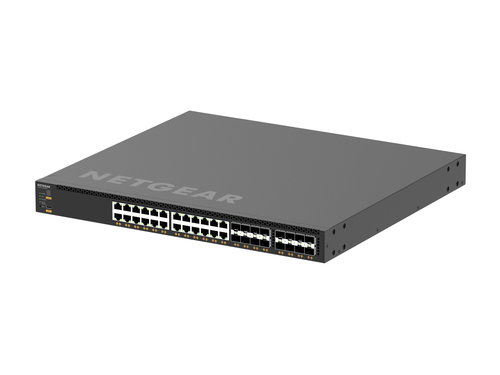

NETGEAR M4350-24X8F8V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

R135,583
incl. VAT: R155,920
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: NETGEAR
  • Model: XSM4340V-100NES
  • Weight: 10.42 kg
  • Dimensions: 60 × 58 × 10 cm
  • EAN: 606449165135
  • Product code: 628121
Please Inquire
R135,583 incl. VAT: R155,920
We will email you when the product is back in stock.

Key features

  • 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
  • 750W internal power supply providing 290W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

Key features

  • 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
  • 750W internal power supply providing 290W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
Tags: netgear hubs & switches , netgear hubs & switche

Description

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Price History

Price History

Current price135,583 ZAR
135,698135,005134,31208-2409-0409-1609-2710-0910-20
Regular price

Specifications

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
ARP inspection Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
10G Ethernet (copper) ports quantity 24
SFP+ module slots quantity 8
SFP28 ports quantity 8
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support Yes
Full duplex Yes
Policy-based routing Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
6to4 tunnel Yes
IPv4 routes 512
IPv6 routes 256
VLAN support Yes
Virtual LAN features MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs 4093
Data transmission
MAC address table 16000 entries
Switching capacity 1040 Gbit/s
Throughput 773.76 Mpps
Store-and-forward Yes
Latency (10 Gbps) 2.7 µs
Jumbo frames support Yes
Jumbo frames 12000
Packet buffer memory 64 MB
Security
DHCP features DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
Access Control List (ACL) egress 1023
Access Control List (ACL) ingress 511
IGMP snooping Yes
IGMP proxy Yes
MAC address filtering Yes
Static port security Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN, MAC-based authentication
Root protection Yes
Password protection Yes
DoS attack prevention Yes
Authentication type RADIUS, TACACS+
Queue scheduling algorithms Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping Y
Protocols
Management protocols SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP) Yes
Routing protocols OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
LED indicators Yes
Airflow direction Front-to-back airflow
Performance
Built-in processor Yes
Processor model ARM Cortex-A57
Processor frequency 1800 MHz
Memory type DDR4-SDRAM
Internal memory 4096 MB
Flash memory 512 MB
sFlow Yes
Power
Power source AC
Power supply included Yes
Power consumption (typical) 151.8 W
Power consumption (max) 464 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Power over Ethernet (PoE) power per port 90 W
Total Power over Ethernet (PoE) budget 1770 W
Other features
Power supply 750 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Weight & dimensions
Width 440 mm
Depth 400 mm
Height 43.2 mm
Weight 7.24 kg
Packaging content
Cables included AC, USB Type-C
Quick start guide Yes
Rack mount kit Yes
Packaging data
Included power plug types EU, UK, NA
Certificates
Compliance certificates BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Sustainability
Sustainability compliance Yes
