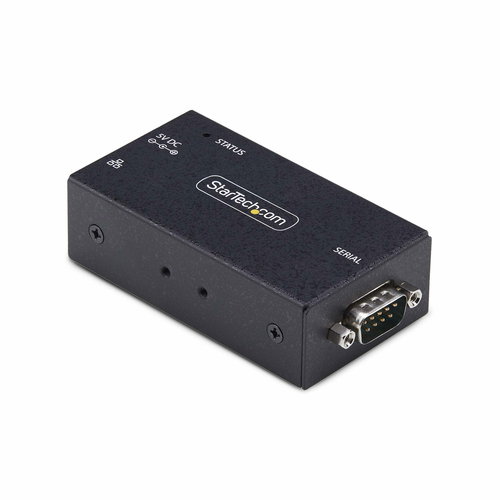

StarTech.com 1-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA – photo 1
STARTECH

StarTech.com 1-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA

R3,939
incl. VAT: R4,530
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: I13-SERIAL-ETHERNET
  • Weight: 0.54 kg
  • Dimensions: 25 × 17 × 6 cm
  • EAN: 065030905978
  • Product code: 629637
Backordered goods Delivery in 7–10 working days

Available Options

R3,939 incl. VAT: R4,530

Key features

  • SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
  • UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
  • VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
  • ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
  • RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
  • SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)

Key features

  • SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
  • UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
  • VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
  • ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
  • RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
  • SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)
Tags: startech cables , startech cable

Description

Streamline RS-232 connectivity for serial device management over IP

This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

Flexible Installation and Rugged Chassis

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

Price History

Price History

Current price4,212 ZAR
4,2304,1284,02608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Network
Networking standards IEEE 802.3i, IEEE 802.3u
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Full duplex Yes
Technical details
Host interface RS-232
Output interface RJ-45
Connector 1 DB-9
Connector 2 RJ-45
Connector gender Female/Female
Mounting Wall/DIN
Baud rate 921.6 Kbit/s
Product colour Black
Data bits 7, 8
Parity bit Even, Mark, No, Odd, Space
Stop bits 1, 2
Compliance certificates Trade Agreements Act (TAA)
Flow Control type No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air) 15 kV
Electrostatic Discharge (ESD) protection (contact) 8 kV
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 82 mm
Depth 46 mm
Height 25 mm
Weight 155 g
Package width 246 mm
Package depth 170 mm
Package height 61 mm
Package weight 5 kg
Power
Input voltage 100 - 240 V
Input current 0.48 A
Output voltage 5 V
Output current 3 A
Power consumption (typical) 15 W
Material
Housing material Steel
Indication
LED indicators Yes
Packaging content
Mounting brackets included Yes
Number of screws included 4 pc(s)
AC adapter included Yes
DIN rail included Yes
Packaging data
Manual Yes
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Logistics data
Products per master (outer) case 15 pc(s)
Master (outer) case length 420 mm
Master (outer) case width 410 mm
Master (outer) case height 280 mm
