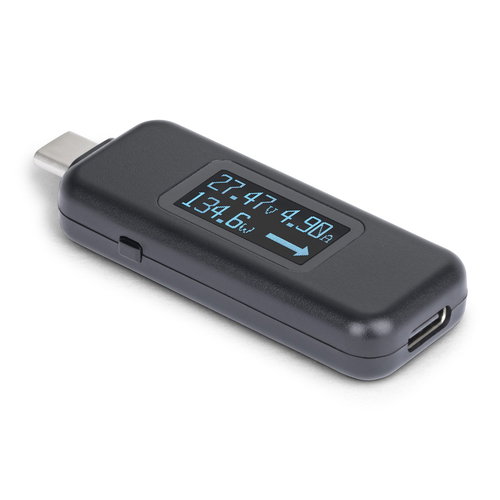

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester – photo 1
STARTECH

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester

R976
incl. VAT: R1,122
  • Stock: Backordered - delivers in 10-15 days
  • Brand: STARTECH
  • Model: USBC-PWRTESTER
  • Weight: 0.03 kg
  • Dimensions: 9 × 8 × 2 cm
  • EAN: 065030904469
  • Product code: 630085
Backordered goods Delivery in 10–15 working days

Available Options

R976 incl. VAT: R1,122
SavePDF

Key features

  • PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180° flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go
  • SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices
  • UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)
  • APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests
  • SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180° flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices

Key features

  • PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180° flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go
  • SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices
  • UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)
  • APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests
  • SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180° flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices
Tags: startech measuring and testing instruments , startech measuring and testing instrument

Description

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential addition to any IT Pro's toolkit.

Streamline Power Diagnostics

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.

Price History

Price History

Current price976 ZAR
1,00298897308-2409-0609-2010-0310-1710-30
Regular price

Specifications

Features
Testing type Amperage, Voltage, Wattage
DC output voltage test 4.5V-50V
Power connectors supported USB Type-C
Built-in display Yes
Output current 6.5 A
DC input voltage test 4.5V-50V
Input current 0.05 - 6.5 A
Backlight display Yes
Backlight colour Blue
Host interface USB 3.2 USB Type C
Output interface USB 3.2 USB Type C
USB version 3.2 Gen 2 (3.1 Gen 2)
Maximum charging test 240 W
Product colour Black
Housing material Polycarbonate (PC)
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 57 mm
Depth 23 mm
Height 10 mm
Weight 12 g
Packaging data
Package width 83 mm
Package depth 82 mm
Package height 17 mm
Package weight 28 g
Technical details
Compliance certificates RoHS
Logistics data
Master (outer) case width 430 mm
Master (outer) case length 180 mm
Master (outer) case height 270 mm
Products per master (outer) case 150 pc(s)
