StarTech.com 70x15mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector – photo 1
STARTECH

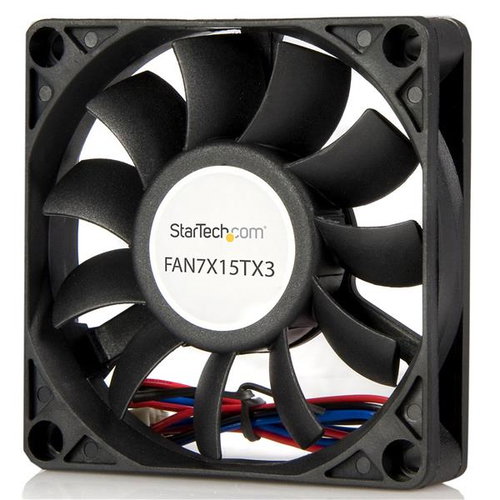

StarTech.com 70x15mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector

R648
incl. VAT: R745
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: FAN7X15TX3
  • Weight: 0.08 kg
  • Dimensions: 15 × 10 × 3 cm
  • EAN: 065030820387
  • Product code: 634038
Backordered goods Delivery in 7–10 working days

Available Options

R648 incl. VAT: R745

Key features

  • Dual ball bearing design
  • 3-pin connector with tachometer wire

Key features

  • Dual ball bearing design
  • 3-pin connector with tachometer wire
Tags: startech computer system cooling parts , startech computer system cooling part

Description

Add additional chassis cooling with a 70mm ball bearing fan

This versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.

The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.

Price History

Price History

Current price656 ZAR
65765164608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Performance
Suitable location Computer case
Type Fan
Fan diameter 7 cm
Rotational speed (max) 3500 RPM
Noise level (high speed) 34 dB
Maximum airflow 29.58 cfm
Mean time between failures (MTBF) 50000 h
Operating temperature (T-T) -10 - 70 °C
Design
Product colour Black
Material Plastic
Number of fans 1 fan(s)
Certification RoHS
Power
Power consumption (typical) 3.12 W
Voltage 12 V
Rated current 0.18 A
Weight & dimensions
Width 15 mm
Depth 70 mm
Height 70 mm
Weight 38 g
Package width 96 mm
Package depth 143 mm
Package height 33 mm
Package weight 75 g
Technical details
Compliance certificates RoHS
Other features
Storage temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 0 - 65%
Dimensions (WxDxH) 10 x 60 x 60 mm
Connector(s) 1 - TX3 Female
Rotational speed 3500 RPM
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case width 364 mm
Master (outer) case length 586 mm
Master (outer) case height 220 mm
Products per master (outer) case 100 pc(s)
