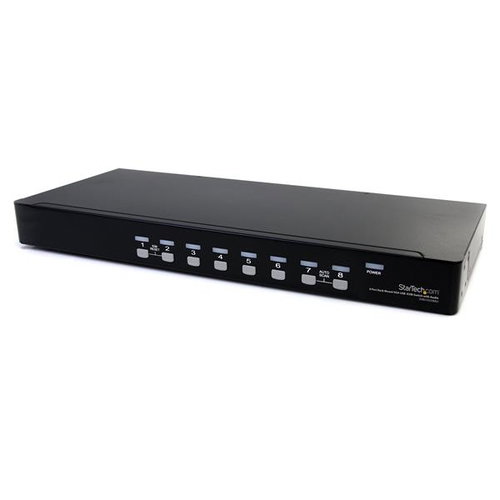

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA – photo 1
Free Delivery
STARTECH

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA

R10,050
incl. VAT: R11,558
  • Stock: Backordered - delivers in 10-15 days
  • Brand: STARTECH
  • Model: SV831DUSBAU
  • Weight: 4.6 kg
  • Dimensions: 59 × 27 × 13 cm
  • EAN: 065030837248
  • Product code: 634142
Backordered goods Delivery in 10–15 working days

Available Options

R10,050 incl. VAT: R11,558
SavePDF

Key features

  • Supports Hotkey and front panel push-button switching
  • Identify and select computers by names assigned via the OSD menu
  • OSD security allows each PC to be password protected
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • USB console interface
  • Plug-and-play system configuration
  • USB Keyboard and Mouse combo supported on one USB connection

Key features

  • Supports Hotkey and front panel push-button switching
  • Identify and select computers by names assigned via the OSD menu
  • OSD security allows each PC to be password protected
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • USB console interface
  • Plug-and-play system configuration
  • USB Keyboard and Mouse combo supported on one USB connection
Tags: startech kvm switches , startech kvm switche

Compatible accessories

Description

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Price History

Price History

Current price10,050 ZAR
10,68710,2469,80508-2409-0809-2210-0710-2111-05
Regular price

Specifications

Ports & interfaces
Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type VGA
Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
Headphone outputs 8
Number of microphone inputs 8
DC-in jack Yes
Performance
Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Plug and Play Yes
Daisy chain Yes
Number of users 1 user(s)
Design
Rack mounting Yes
Product colour Black
Rack capacity 1U
Housing material Steel
Cascadable Yes
LED indicators Yes
Certification CE, FCC, UL
Display
On Screen Display (OSD) Yes
Power
Input voltage 110-240 V
Input current 1.8 A
Output voltage 12 V
Output current 4 A
Power consumption (typical) 48 W
Power plug type Type M
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 540 mm
Depth 180 mm
Height 45 mm
Weight 2.6 kg
Packaging data
Package width 598 mm
Package depth 263 mm
Package height 123 mm
Package weight 4.7 kg
Packaging content
Cables included AC
Manual Yes
AC adapter included Yes
Rubber feet Yes
Logistics data
Harmonized System (HS) code 85176200
Master (outer) case width 292 mm
Master (outer) case length 610 mm
Master (outer) case height 409 mm
Products per master (outer) case 3 pc(s)
Other features
Audio support Yes
IP control No
