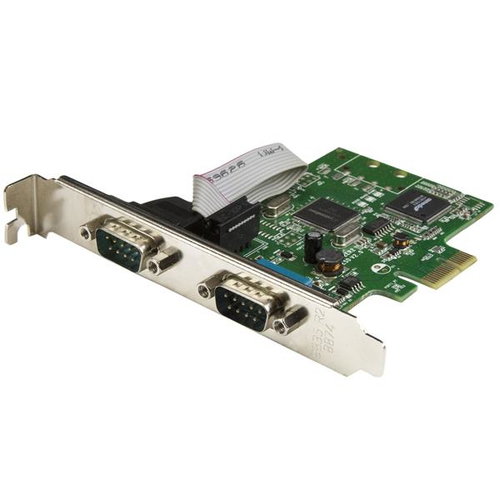

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA – photo 1
STARTECH

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA

R1,636
incl. VAT: R1,882
  • Stock: Backordered - ETA 7-10 Days
  • Brand: STARTECH
  • Model: PEX2S1050
  • Weight: 0.15 kg
  • Dimensions: 17 × 15 × 3 cm
  • EAN: 065030868297
  • Product code: 634819
Backordered goods Delivery in 7–10 working days

Available Options

R1,636 incl. VAT: R1,882

Key features

  • Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
  • Maximum data transfer rate of 460Kbps
  • Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • 256-Byte deep FIFO per transmitter and receiver
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Out-of-band hardware flow control using RTS / CTS
  • Support for 5,6,7 or 8 data bits
  • Standard profile bracket installed, optional dual low-profile brackets included

Key features

  • Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
  • Maximum data transfer rate of 460Kbps
  • Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • 256-Byte deep FIFO per transmitter and receiver
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Out-of-band hardware flow control using RTS / CTS
  • Support for 5,6,7 or 8 data bits
  • Standard profile bracket installed, optional dual low-profile brackets included
Tags: startech input devices , startech input device

Description

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

Price History

Price History

Current price1,713 ZAR
1,7181,6931,66908-2409-0409-1609-2710-0910-20
Regular price

Specifications

Ports & interfaces
Host interface PCIe
Output interface Serial
Expansion card form factor Full-height / Low-profile
Serial ports quantity 2
Serial interface type RS-232
Design
Internal Yes
Certification CE, FCC, Microsoft WHQL
Features
Chipset SystemBase - SB16C1052PCI
Baud rate 460.8 Kbit/s
FIFO (First In, First Out) 256 B
Data bits 5, 6, 7, 8
Full duplex Yes
Flow control support Yes
Operational conditions
Operating temperature (T-T) -10 - 80 °C
Storage temperature (T-T) -20 - 100 °C
Operating relative humidity (H-H) 5 - 85%
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 120 mm
Depth 103 mm
Height 20 mm
Weight 61 g
Packaging data
Mounting brackets included Yes
Drivers included Yes
Quick installation guide Yes
Package width 142 mm
Package depth 170 mm
Package height 30 mm
Package weight 149 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 75 pc(s)
Master (outer) case width 356 mm
Master (outer) case length 682 mm
Master (outer) case height 320 mm
