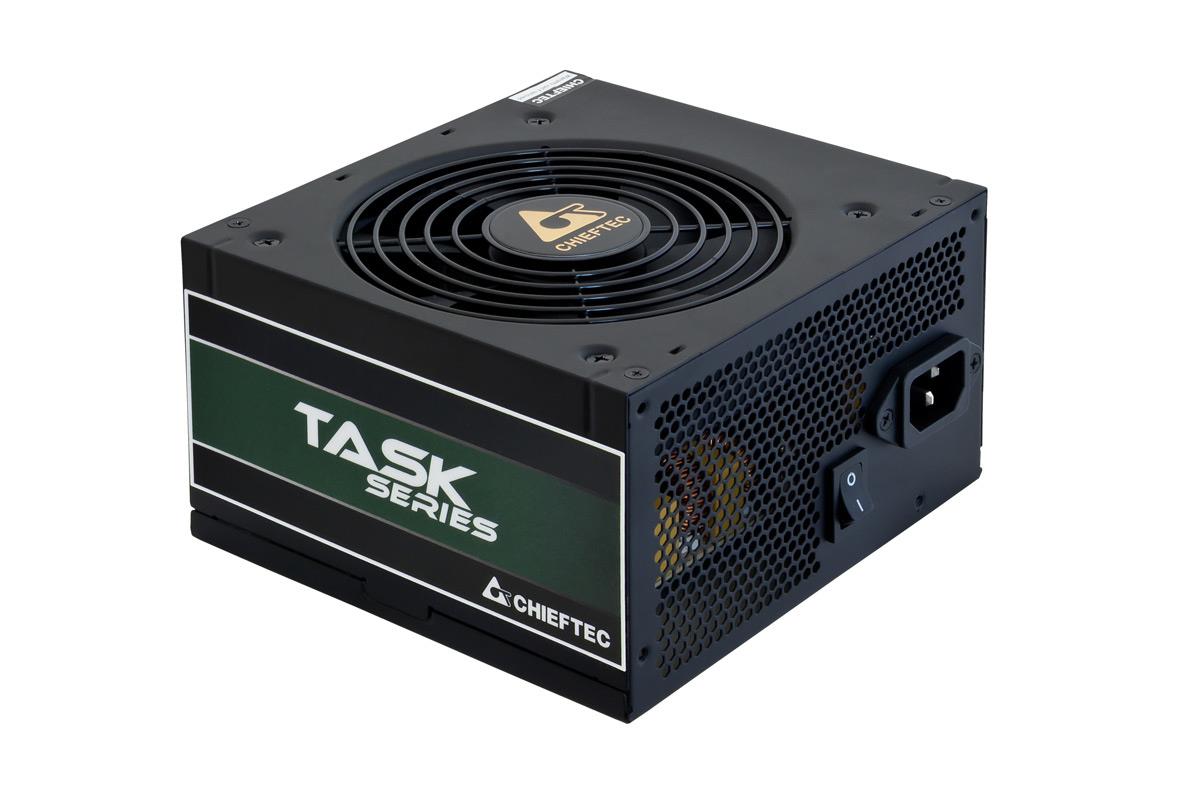

Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS BRONZE PFC Active TPS-700S

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

• 80PLUS Bronze certified efficiency
• 650mm long cables for maximum case compatibility
• All modern protection and safety features included

Summary: Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV | Vendor Homepage: https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S | Total power: 700 | AC input voltage: 100 - 240 | AC input frequency: 47 - 63 | Input current: 10 | Power factor: 0.9 | Power Factor Correction (PFC) type: Active | Combined power (+12V): 648 | Combined power (-12V): 3.6 | Combined power (+5Vsb): 12.5 | Max output current (+3.3V): 19 | Max output current (+12V): 54 | Max output current (+5V): 17 | Max output current (-12V): 0.3 | Max output current (+5Vsb): 2.5 | Power protection features: Over voltage/Overheating/Overload/Short circuit/Under voltage | Motherboard power connector: 20+4 pin ATX | Motherboard power cable length: 650 | Number of SATA power connectors: 6 | SATA power cable length: 150/500 | Peripheral (Molex) power connectors (4-pin): 3 | Peripheral (Molex) power cable length: 150/500 | EPS power connector (4+4 pin): Yes | PCI Express power connectors (6+2 pin): 2 | PCI Express power cable length: 500 | ATX power connector (20+4 pin): Yes | Cabling type: Non-Modular | 80 PLUS certification: 80 PLUS Bronze | Supported motherboard form factors: ATX | Purpose: PC | Power supply unit (PSU) form factor: ATX | Product colour: Black | Fan diameter: 120 | Number of fans: 1 | Compliance certificates: RoHS | Certification: ErP, CE, CB, EAC, TUV | Width: 150 | Depth: 140 | Height: 87 | Weight: 1740 | Package weight: 2150 | Package type: Box | Harmonized System (HS) code: 84733020 | EPS cable length: 650 | Unit Calculated Weight: 4.31 | Product Net Weight: 1.57 | Unit Calculated Volume: 0.006169 | Units per Shipping Box: 4 | Unit Width: 10.5 | Units per Pallet: 0 | Shipping Box Height: 21 | Unit Depth: 23.5 | Unit Height: 18.5 | Name: CASE PSU ATX 700W/TPS-700S CHIEFTEC
